4-26 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly
Registration Pinch Roller
PL2.3.2
1. Open the Rear Door (page 4-8).
2. Remove the Left Cover (page 4-16).
3. Remove the Right Cover (page 4-12).
4. Remove the Top Cover (page 4-7).
5. Remove the Rear Cover (page 4-11).
6. Remove the Power Switch Assembly (page 4-46).
7. Remove the IP Board (page 4-45).
8. Remove the LVPS (page 4-48).
9. Remove the IP Board and LVPS brackets (page 4-49).

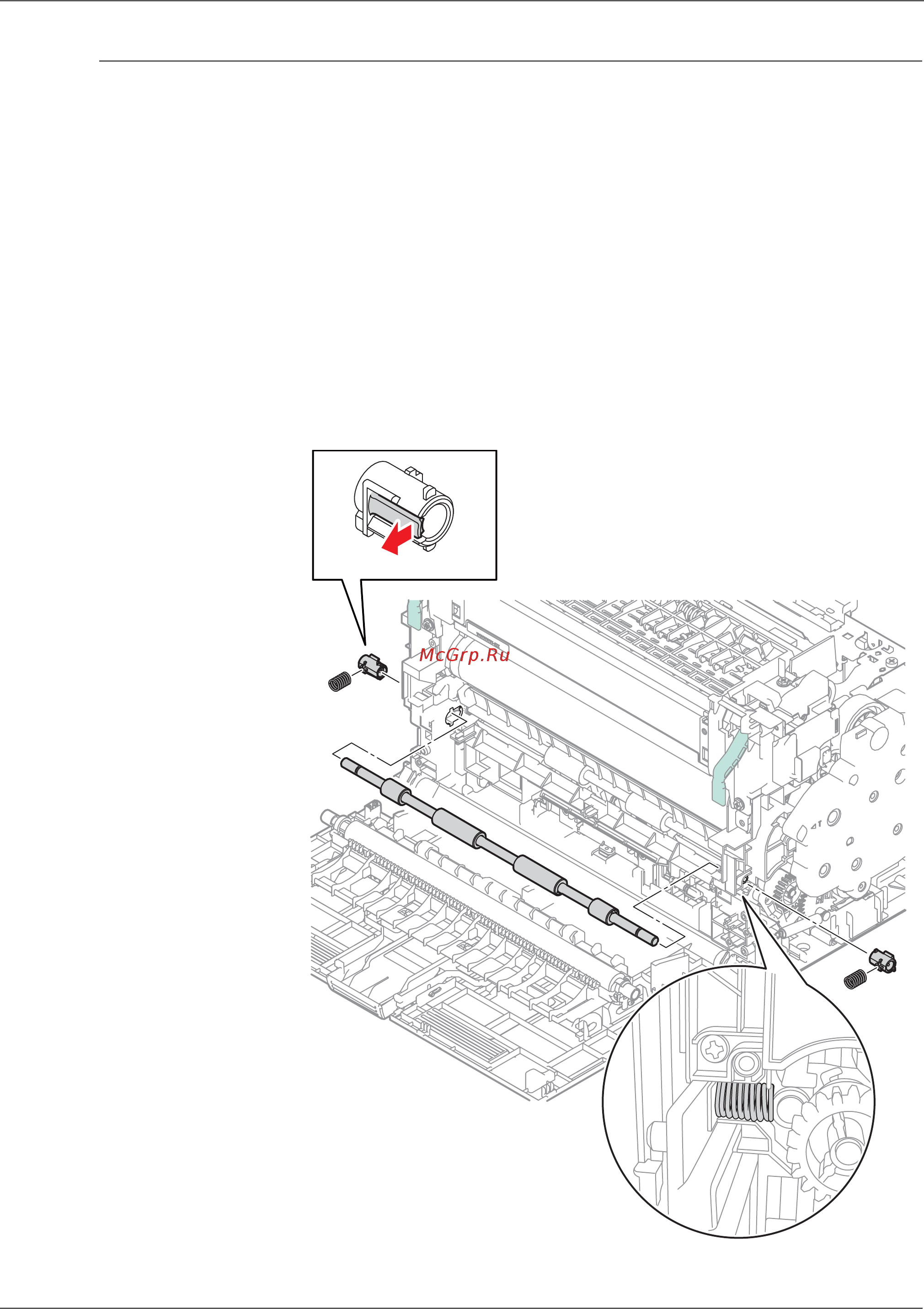

10. Remove the registration springs and bearings from the ends of the pinch roller
shaft and remove the shaft from the chassis.
s3040-034
