4-102 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly

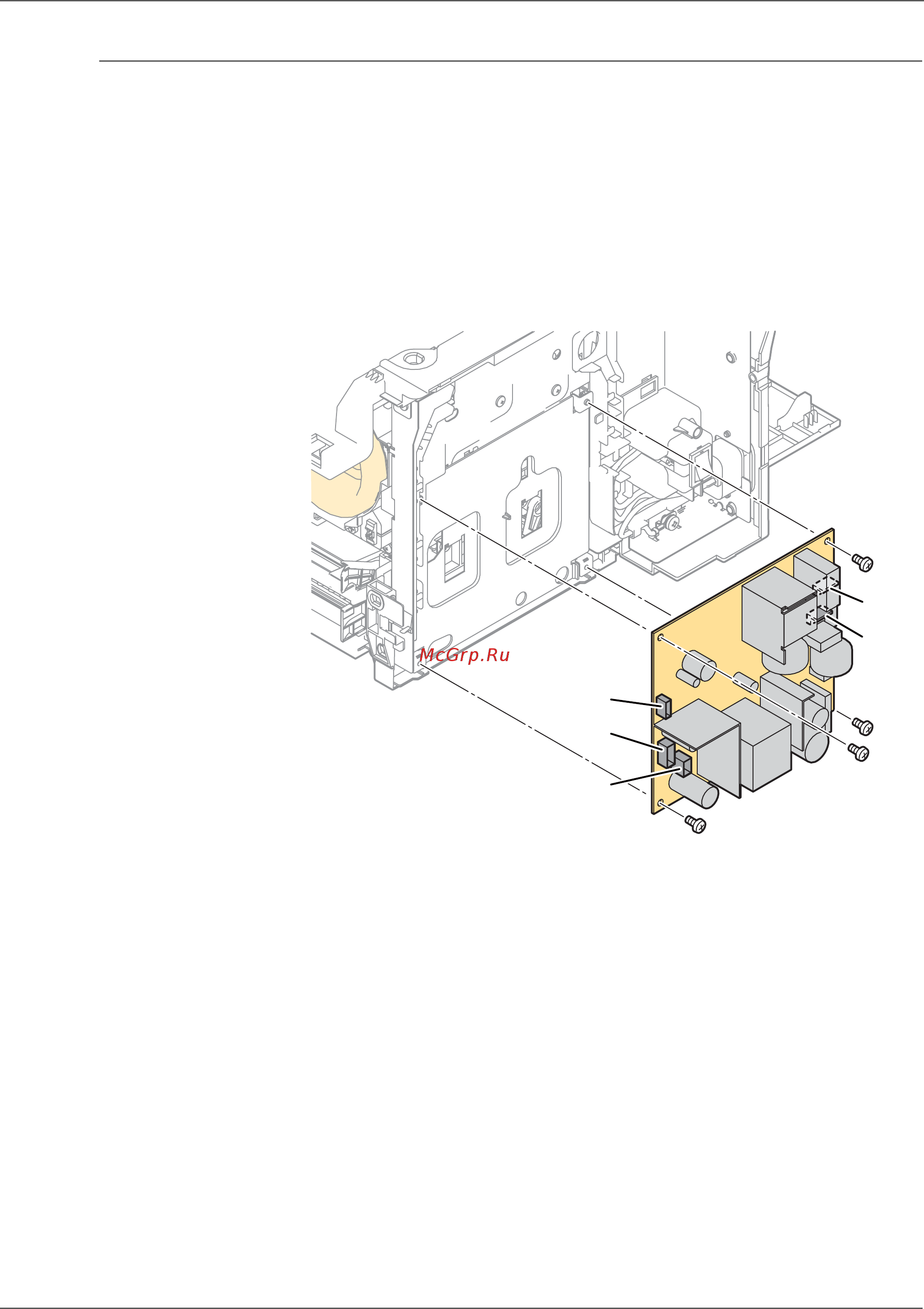

LVPS
PL7.2.8
1. Remove the Main Tray (page 4-58).
2. Remove the Front Cover (page 4-60).
3. Remove the Inner Front Cover (page 4-62).
4. Remove the Right Cover (page 4-57).
5. Disconnect all connections to the LVPS.
6. Remove 4 screws (silver, metal, 6mm) that secure the LVPS.
s3040-090
P/J203
P/J202
P/J204
P/J201
P/J200
