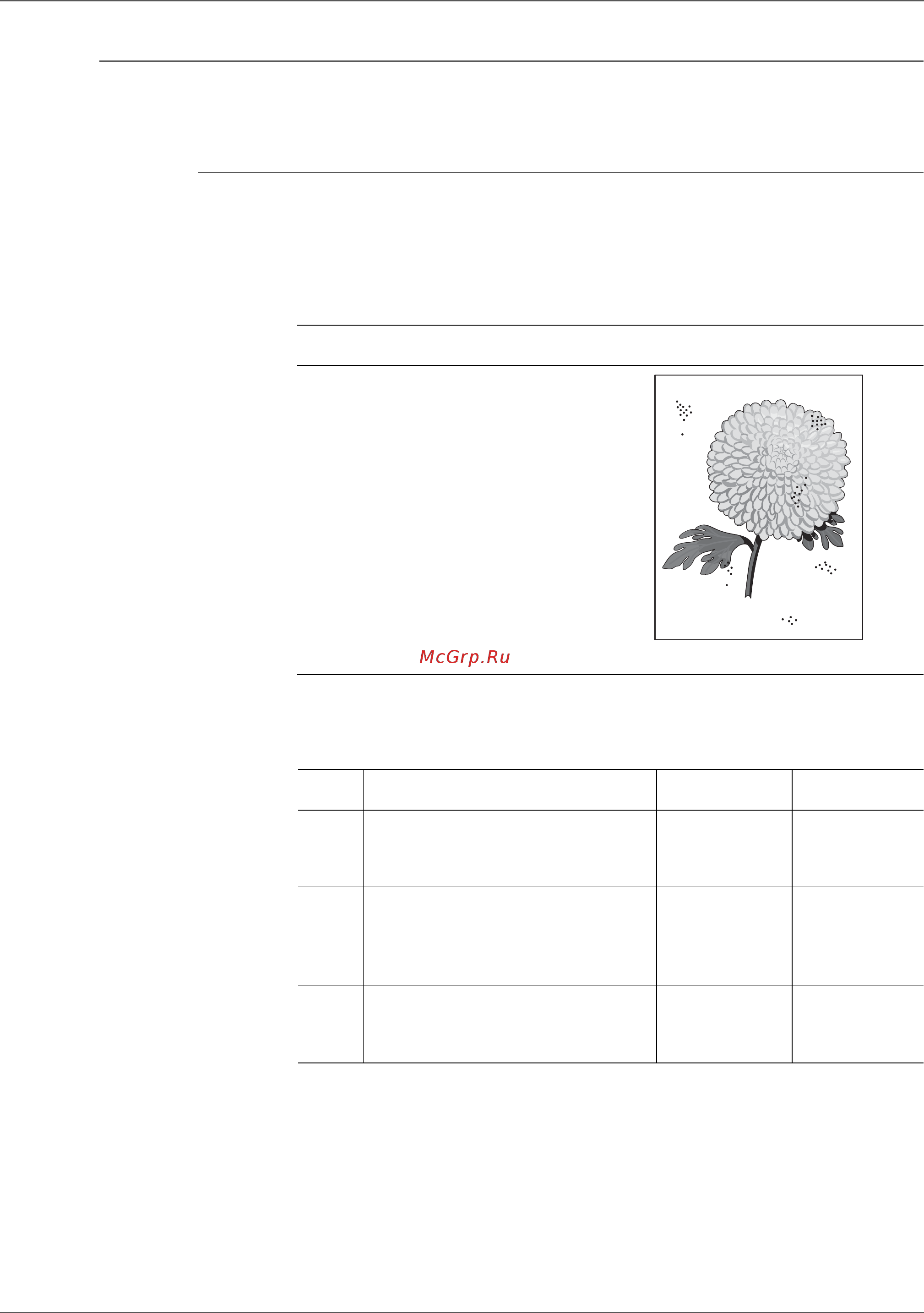

Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 3-31
Image Quality
Spots from ADF
There are spots on copies from the ADF.
Initial Actions
• Check the document glass.
• Ensure there are no debris on the document glass.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Scanner Assembly (3045NI)
PL8.1.1
■ Scanner Assembly (3045B) PL8.2.1
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Check the original document.
Are there spots on the original?
Replace the
original
document.
Go to Step 2.
2 Check for debris on the document
glass and the CVT window.
Is there any debris?
Clean the
document glass
using a lint-free
cloth.
Go to Step 3.
3 Does the image quality improve? Complete. Replace the
Scanner
(page 4-109).
Random Spots
