9898
9999
Models Unit
RCU 33 RCU 55 RCU 110 RCU 175 RCU 220 RCU 255 RCU 320 RCU 410
Nominal air flow rate
(1)
Nm
3
/h 300 620 920 1.580 1.850 2.250 2.950 3.920
USEFUL static pressure
(1)
Pa 45 55 65 70 77 80 100 100
Motor power W 92 x 2 90 x 2 147 x 2 350 x 2 350 x 2 350 x 2 550 x 2 750 x 2
Fan speed N° 1 1 3 3 3 3 3 2
Electrical supply V - 50Hz 230 ~ 230 ~ 230 ~ 230 ~ 230 ~ 230 ~ 230 ~ 400 3N ~
(1) Values referred to nominal air flow rate, behind recover unit and filters
HEAT RECOVERY UNiT
(2)
Models Unit
RCU 33 RCU 55 RCU 110 RCU 175 RCU 220 RCU 255 RCU 320 RCU 410
Efficiency % 53 54 55 54 54 54 51 57
Recovered heating capacity kW 1,5 3,1 4,7 7,9 9,2 11,2 13,9 20,6
Treated air temperature °C 8,3 8,5 8,8 8,5 8,5 8,5 7,8 9,3
(2) Winter nominal conditions: outside air –5°C (dry bulb), relative humidity 80%, room air 20°C (dry bulb), relative humidity 50%.
Summer nominal conditions: outside air 32°C ( dry bulb ), relative humidity 50%, room air 26°C (dry bulb), relative humidity 50%.
FiLTERS
Models Unit
RCU 33 RCU 55 RCU 110 RCU 175 RCU 220 RCU 255 RCU 320 RCU 410
Efficiency G3 G3 G3 G3 G3 G3 G3 G3
Frontal air speed m/s 0.9 1.7 2.0 2.3 2.7 1.8 2.5 2.8

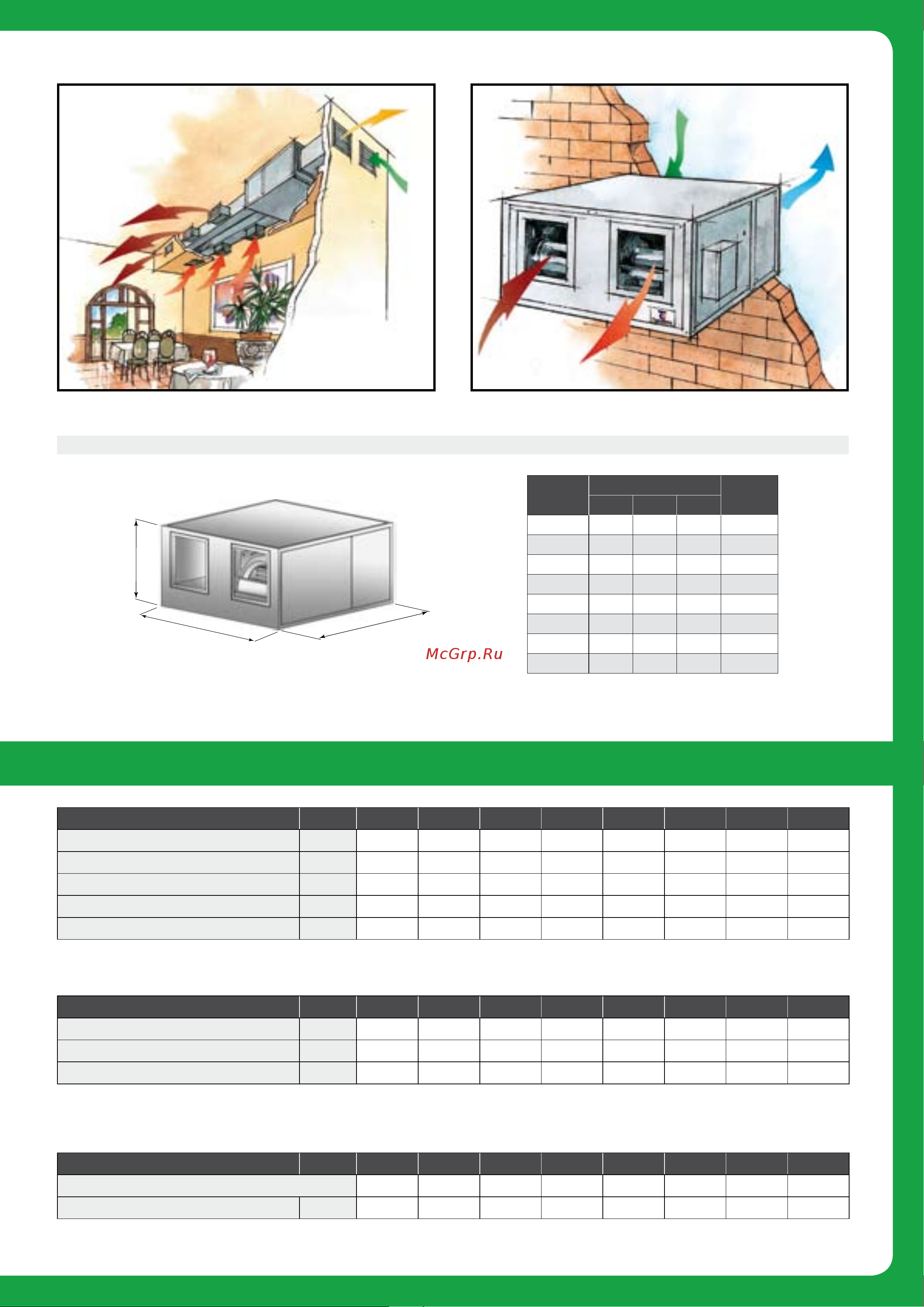

OVERALL DIMENSIONS
A
B
C
Models
Dimensions mm
Weight
Kg
A B C
RCU 33
750 990 290 41
RCU 55
750 990 290 45
RCU 110
860 1.140 410 80
RCU 175
860 1.300 500 125
RCU 220
860 1.380 500 138
RCU 255
1.230 1.650 600 160
RCU 320
1.230 1.650 600 174
RCU 410
1.330 1.750 600 171
TECHNICAL SPECIFICATIONS SERIES
RCU
