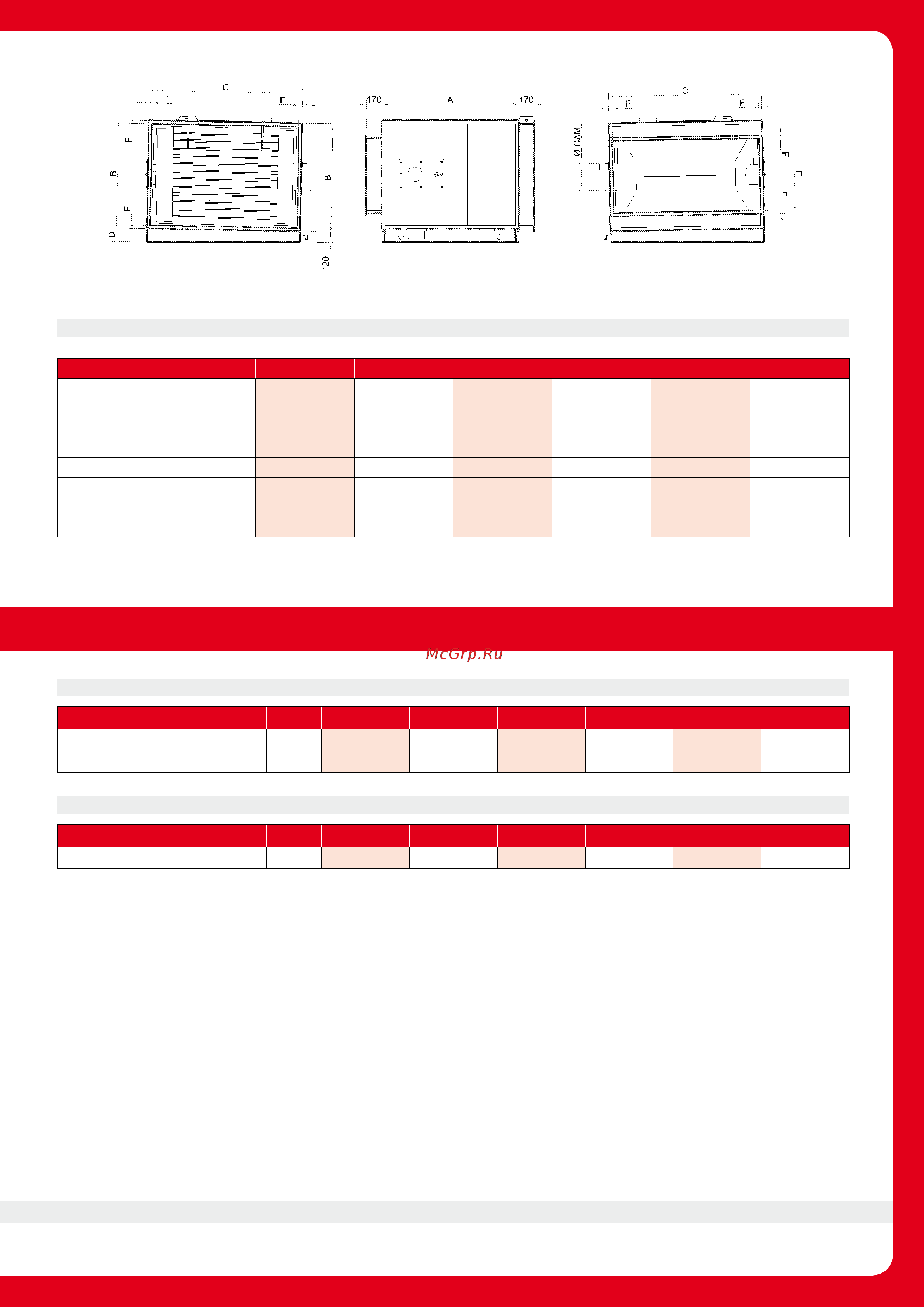

Tecnoclima VX 930 [49/116] Aeraulic needs
![Tecnoclima VX 930 [49/116] Aeraulic needs](/views2/1787161/page49/bg31.png)
46
47
HEATING SECTION
Models Unit SR 150 SR 200 SR 300 SR 450 SR 600 SR 800
Maximal heating capacity
input (burned)
kW 190,0 260,0 390,0 590,0 770,0 1.000
kcal/h 163.400 223,600 335.400 507.400 662.200 860.000
AERAULIC NEEDS
Models Unit SR 150 SR 200 SR 300 SR 450 SR 600 SR 800
Min. air flow to be guaranteed Nm
3
/h 11.000 15.000 23.000 34.000 49.000 67.000
Heating section Unit SR 150 SR 200 SR 300 SR 450 SR 600 SR 800
A mm 1.290 1.400 1.520 1.870 2.120 2.120
B mm 900 1.000 1.200 1.270 1.500 1.500
C mm 1.300 1.500 1.700 2.090 2.500 3.500
D mm 143 145 150 155 164 180
E mm 570 670 870 1.020 1.170 1.070
F mm 35 35 35 35 35 35
∅ Chimney
mm 250 250 300 330 370 380
Weight Kg 375 475 625 775 1.000 1.300
Thermal Performance GASTEC certified
DIMENSIONS
TECHNICAL SPECIFICATIONS SERIES
SR
