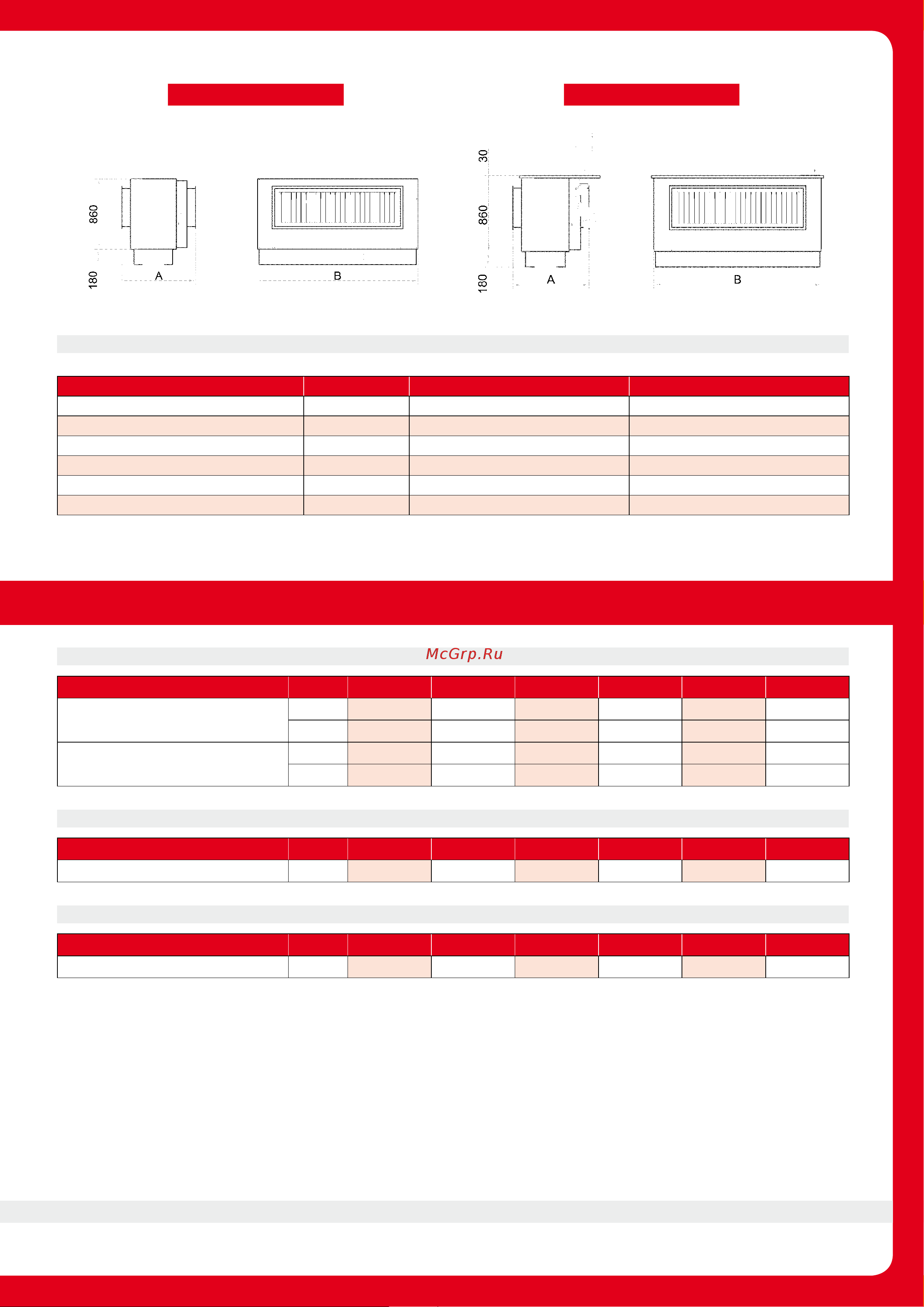

Tecnoclima VX 930 [53/116] Aeraulic needs
![Tecnoclima VX 930 [53/116] Aeraulic needs](/views2/1787161/page53/bg35.png)
50
51
Models Unit A B
SR-UT/UTK 26 mm 845 665
SR-UT/UTK 36 mm 845 745
SR-UT/UTK 46 mm 845 925
SR-UT/UTK 66 mm 985 1.170
SR-UT/UTK 86 mm 895 1.720
SR-UT/UTK 106 mm 895 1.960
HEATING SECTION
Models Unit SR-UT 26 SR-UT 36 SR-UT 46 SR-UT 66 SR-UT 86 SR-UT 106
Max. heating capacity input (burned)
kW 25,4 33,8 46,3 65,0 85,0 104,7
kcal/h 21.844 29.068 39.818 55.900 73.100 90.042
Min. heating capacity input (burned)
kW 17,5 23,3 31,9 44,8 58,6 72,2
kcal/h 15.050 20.038 27.434 38.528 50.396 62.092
AERAULIC NEEDS
Models Unit SR-UT 26 SR-UT 36 SR-UT 46 SR-UT 66 SR-UT 86 SR-UT 106
Min. air flow to be guaranteed Nm
3
/h 1.800 2.900 4.100 5.900 7.900 8.700
ELECTRICAL SPECIFICATIONS
Models Unit SR-UT 26 SR-UT 36 SR-UT 46 SR-UT 66 SR-UT 86 SR-UT 106
Electrical supply V - 50Hz
230
∼ 230 ∼ 230 ∼ 230 ∼ 230 ∼ 230 ∼
SR UT SR UTK
Thermal Performance GASTEC certified
DIMENSIONS
TECHNICAL SPECIFICATIONS SERIES
SR-UT
