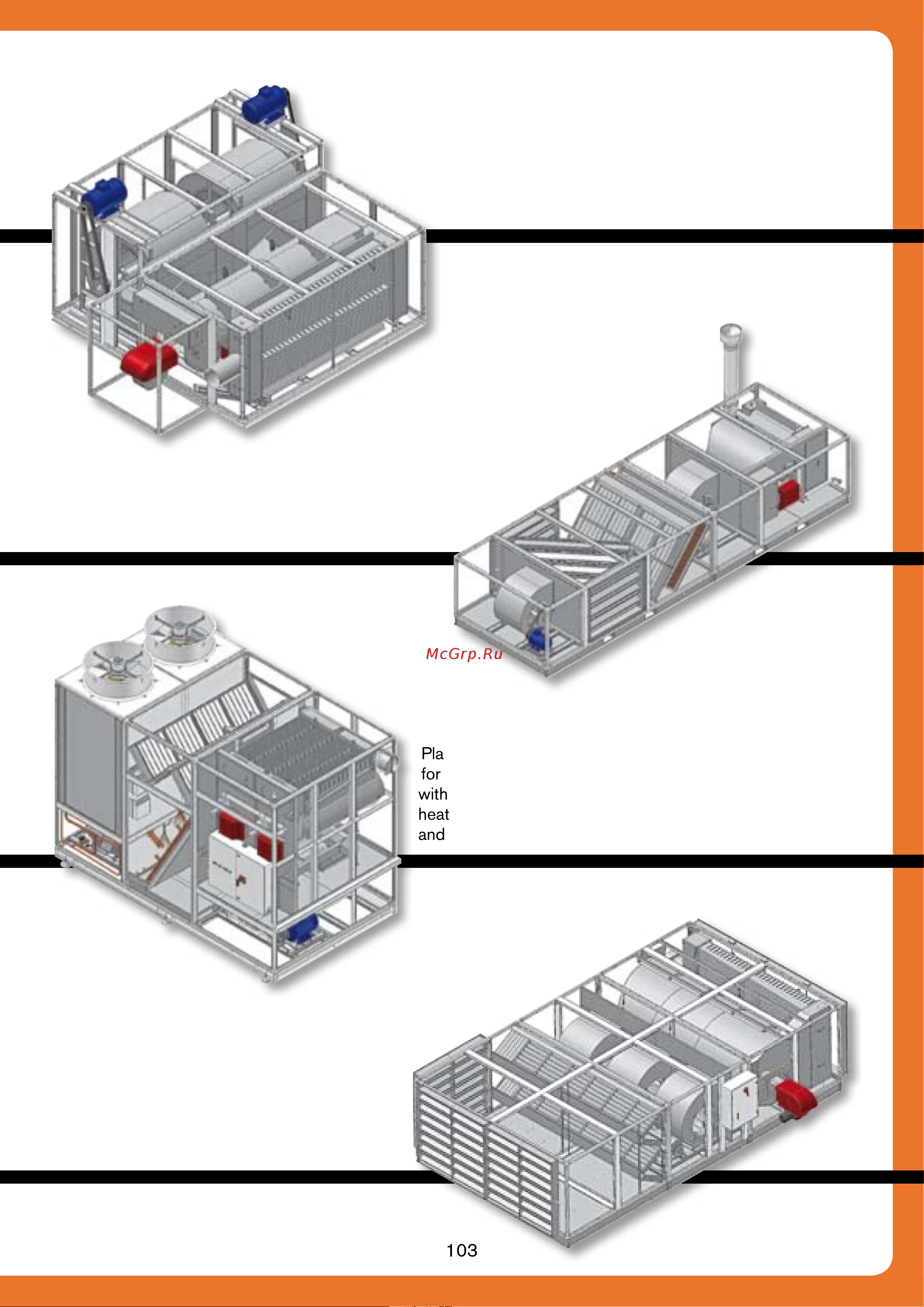

Plan for an appliance designed
for 100% fresh air heating and cooling,
without recirculation, equipped with condensing
heat exchangers featuring modulating burners
and special chilling compressors.
Plan for an appliance designed to heat
outside air drawn at very low temperature,
equipped with condensing heat exchanger
featuring a modulating burner.
It is suitable for treating large air volumes
at very high static pressure.
Plan for an appliance designed
to produce overheated air for industrial processes,
equipped with heat exchanger featuring
a modulating burner.
Plan for an appliance designed
for air heating and cooling,
equipped with condensing heat exchanger featuring
a modulating burner and a special cooling battery
employing well water.
