HEATING SYSTEM: INSTALLED HEATERS
N° 2 WARM AIR HEATERS:
• CABINET VERSION
• DIRECT AIR DIFFUSION ON THREE SIDES OPENING
• FORCED DRAUGHT BURNER
UNITARY HEATING CAPACITY INPUT
➧
280.000 kcal/h
➧
325,6 kW
EFFICIENCY
➧
94%
UNITARY HEATING CAPACITY OUTPUT
➧
263.200 kcal/h
➧
306,0 kW
UNITARY AIR FLOW RATE
➧
28.360 Nm
3
/h
TEMPERATURE DEVIATION
➧
32°K
AIR DIFFUSION AVERAGE SPEED
➧
6,1 m/s
N° AIR DESTRATIFYER:
UNITARY AIR FLOW RATE
➧
3.500 m
3
/h
TREATED AIR VOLUME:
WARM AIR HEATERS AIR FLOW RATE
➧
28.360x2 = 56.720 Nm
3
/h
AIR DESTRATIFYER AIR FLOW RATE
➧
3.500x14 = 49.000 Nm
3
/h
TOTAL AIR FLOW RATE
➧
56.720+49.000 = 105.720 Nm
3
/h
TREATED AIR IN RELATION TO THE BUILDING VOLUMETRY
➧
4 : 1
COVERED SURFACE 3.800 m
2
- VOLUMETRY 25.600 m
3
DESTRATIFYER
WARM AIR
HEATERS

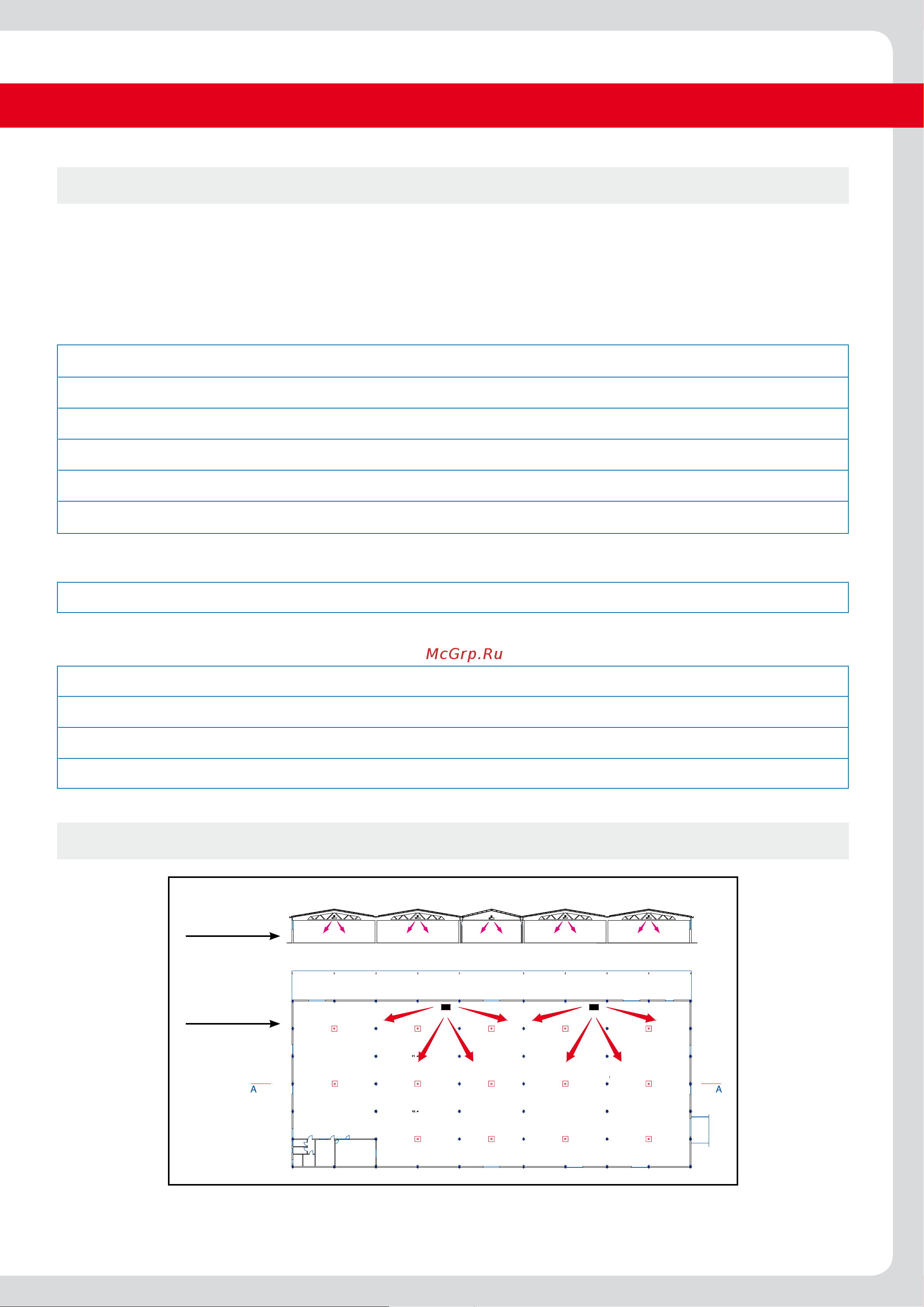

EXAMPLE OF AN INSTALLATION AND ITS ECONOMIC EVALUATION
HEATING PLANT LOCATION
107
