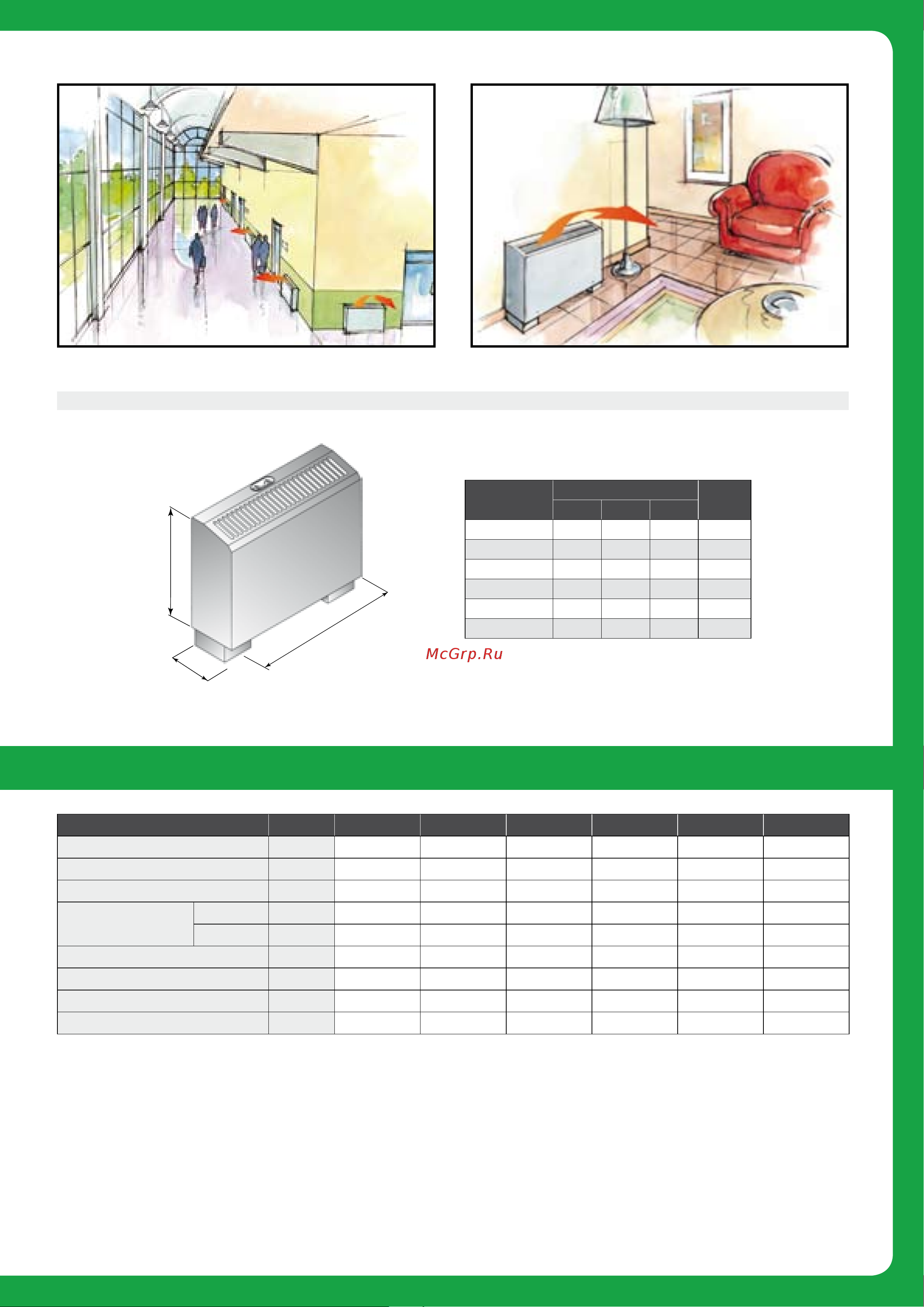

OVERALL DIMENSIONS
Models Unit KUBO 1 KUBO 2 KUBO 3 KUBO 4 KUBO 5 KUBO 6
Max. cooling capacity
(1)
W 1.530 2.400 3.430 4.780 7.200 9.360
Max. heating capacity
(2)
W 3.670 4.980 7.630 9.830 13.390 17.080
Max. nominal air flow Nm
3
/h 430 520 700 820 1.070 1.350
Water flow
Cooling l/h 263 413 590 822 1.238 1.610
Heating l/h 263 413 590 822 1.238 1.610
Max. noise level db(A) 41,5 42,0 39,9 42,4 47,7 49,8
Speeds N° N 5 5 5 5 5 5
Max absorbed electrical power W - A 43W - 0,22A 50W - 0,26A 58W - 0,3A 66W - 0,34A 95A - 0,49A 126A - 0,65W
Electrical supply V - 50Hz 230 ~ 230 ~ 230 ~ 230 ~ 230 ~ 230 ~
(1) Cooling: room air temperature 27°C ( dry bulb ), 19°C (wet bulb ) – Water temp. 7/12°C.
(2) Heating: room air temperature 20°C - Water temperature 70/60°C.
TECHNICAL SPECIFICATIONS SERIES
KUBO
Models
Dimensions mm
Weight
Kg
A B C
KUBO 1
740 230 550 22
KUBO 2
840 230 550 25
KUBO 3
1.040 230 550 30
KUBO 4
1.240 230 550 35
KUBO 5
1.540 230 550 45
KUBO 6
1.840 230 550 55
B
A
C
