6060
6161
Serbatoio
accumulo
Mandata
impianti
Ritorno
impianti
Sonda di temperatura esterna
Pompa di calore
Mod. BESST/R
Supporti antivibranti

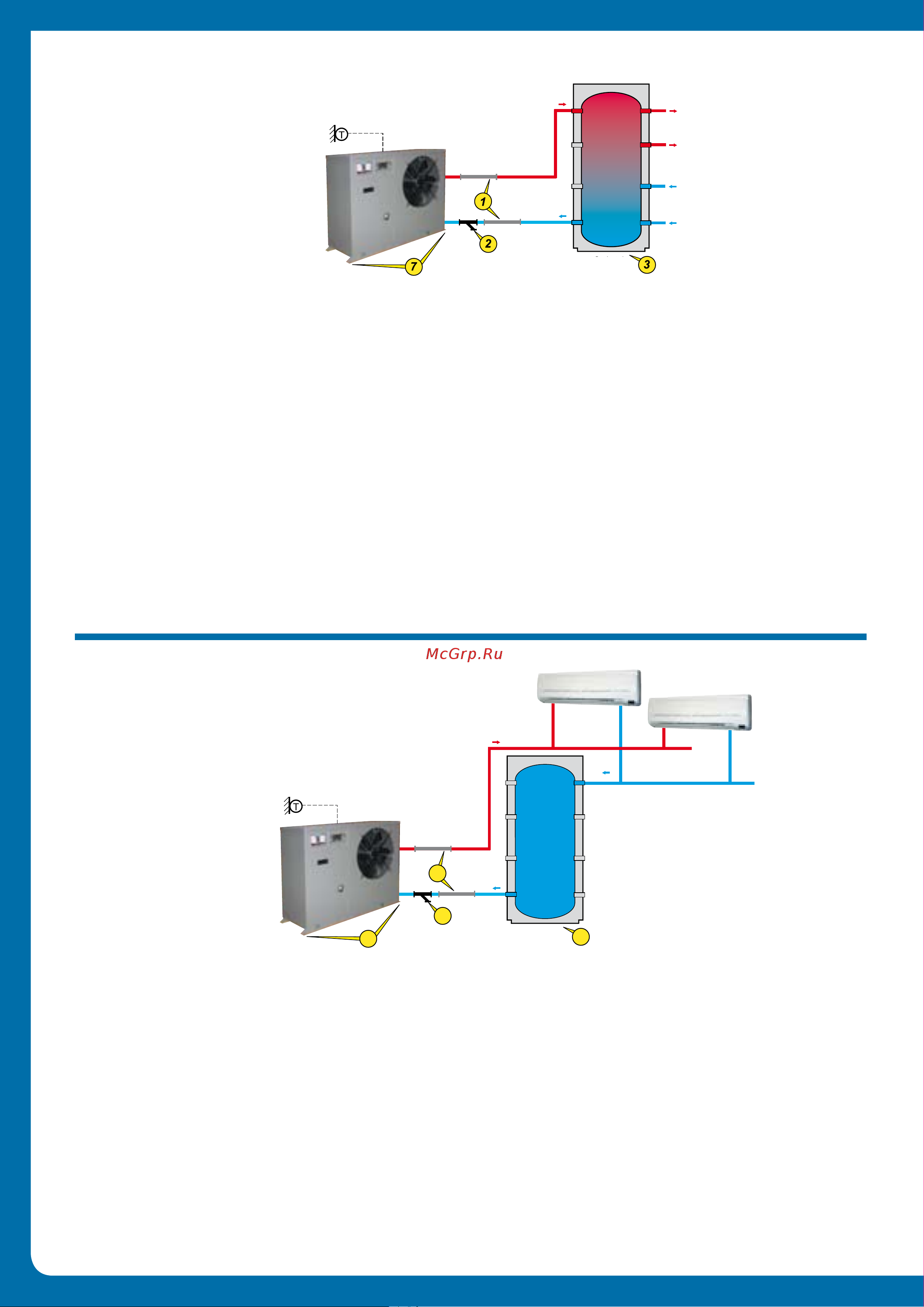

System components:
1. Flexible joints
2. Metal mesh filter
3. Preheat vessel
7. Rubber shock-isolating mountings
This kind of installation represents a solution to connect
a reverse cycle heat pump to several low-temperature
heating systems (floor heating, fan coils, radiant rings
featuring low temperature deviation, etc.).
Its peculiar self-adapting regulation technology – that is
a standard part of the equipment’s electronic manage-
ment system – allows an autonomous and automatic
functioning of the installation.
The various networks are to be regulated separately.
The additional electric resistance to increase thermal
power (installed on the BESST/R version) guarantees
equipment functionality also under estreme conditions.
The resistance is controlled in a fully automatic way,
through the reading and integrated processing of both
the external air and treated water temperatures.
This device also allows to set the equipment’s heat-
ing capacity output without referring to the external
air lowest temperature (BESST guarantees good
operating conditions down to a -15°C outside
temperature), thereby offering remarkable seasonal
energy saving.
System components:
1. Flexible joints
2. Metal mesh filter
3. Preheat vessel
7. Rubber shock-isolating mountings
This kind of installation represents an easy solution
to connect a reverse cycle heat pump to to a network
of fan coils working with low-temperature water. The
heat pump is set at a fixed water temperature, while
the fans belonging to the various terminal units are
to be regulated separately.
The additional electric resistance to increase
thermal power (installed on the BESST/R version)
guarantees equipment functionality also under
estreme conditions. The resistance is controlled
in a fully automatic way, through the reading and
integrated processing of both the external air and
treated water temperatures.
This device also allows to set the equipment’s
heating capacity output without referring to the
external air lowest temperature (BESST guarantees
good operating conditions down to a -15°C outside
temperature), thereby offering certain seasonal
energy saving.
HEAT PUMP connected to a network of fan coils working with low-temperature water
HEAT PUMP connected to several heating systems working with low-temperature water
2
1
Serbatoio
accumulo
3
7
Sonda di temperatura esterna
Ventilconvettori
Pompa di calore
Mod. BESST/R
Supporti antivibranti
heat pump model
BESST/R
outside temperature probe
shock-isolating mountings
Storage
tank
system
output
system
backflow
fan coils
shock-isolating mountings
heat pump model
BESST
outside temperature probe
Storage
tank
