84
85

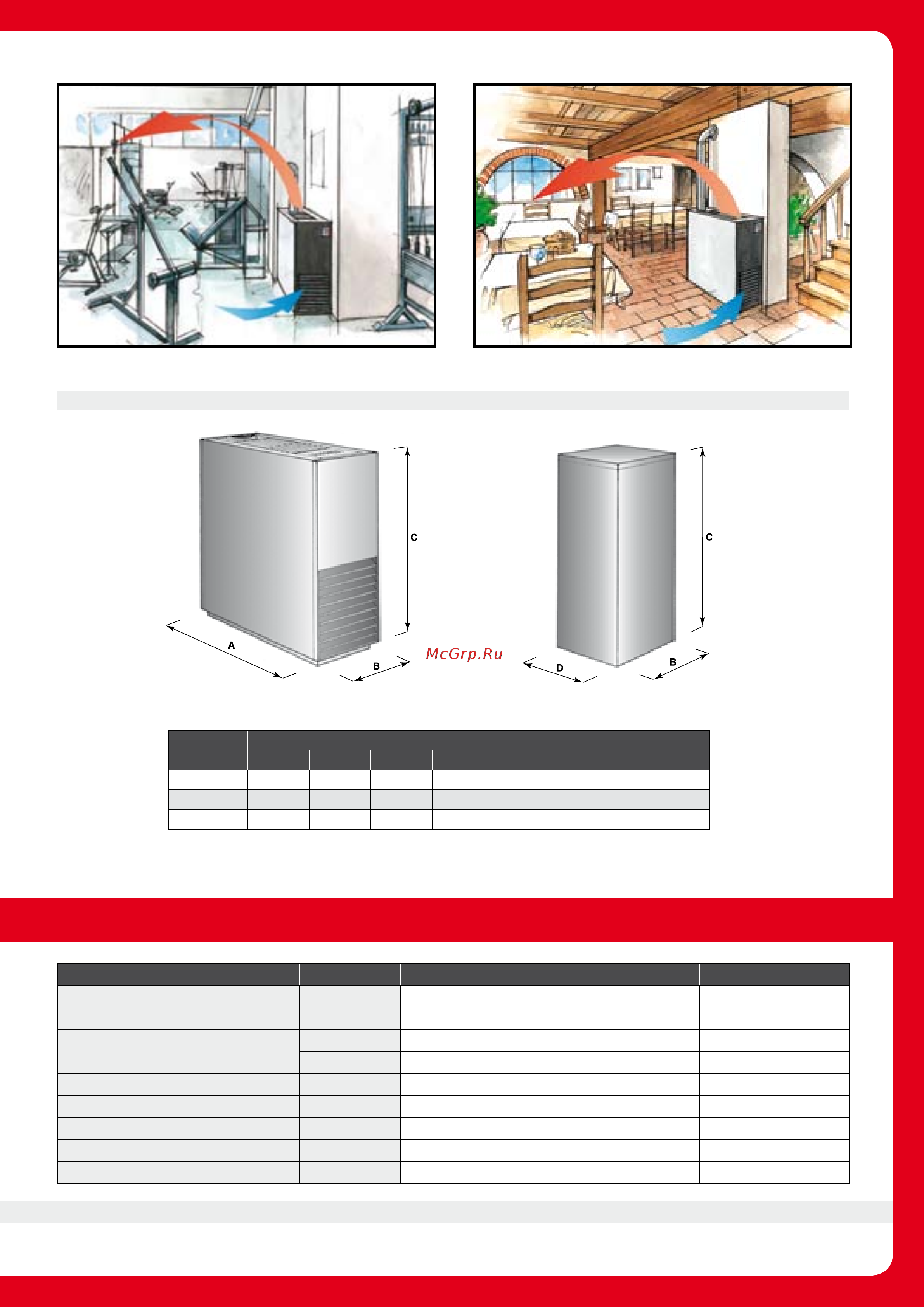

OVERALL DIMENSIONS
Models
Dimensions mm
Chimney
Ø mm
Tank capacity
litres
Weight
Kg
A B C D
DM 15
860 350 860 300 100 80 82
DM 20
960 390 960 300 120 100 97
DM 30
1.030 430 1.030 320 130 130 116
Models
Unit DM 15 DM 20 DM 30
Heating capacity input
kW 18,5 23,7 34,1
kcal/h 15.900 20.400 29.350
USEFUL heating capacity output
kW 16,3 20,9 30,2
kcal/h 14.000 18.000 26.000
Air flow rate Nm
3
/h 850 1.100 1.600
Static pressure at average speed Pa 50 50 70
Static pressure at high speed Pa 80 80 150
Electric fan power W 147 147 420
Electrical supply
V - 50Hz
230 ~ 230 ~ 230 ~
Thermal Performance GASTEC certified
TECHNICAL SPECIFICATIONS SERIES
DM
