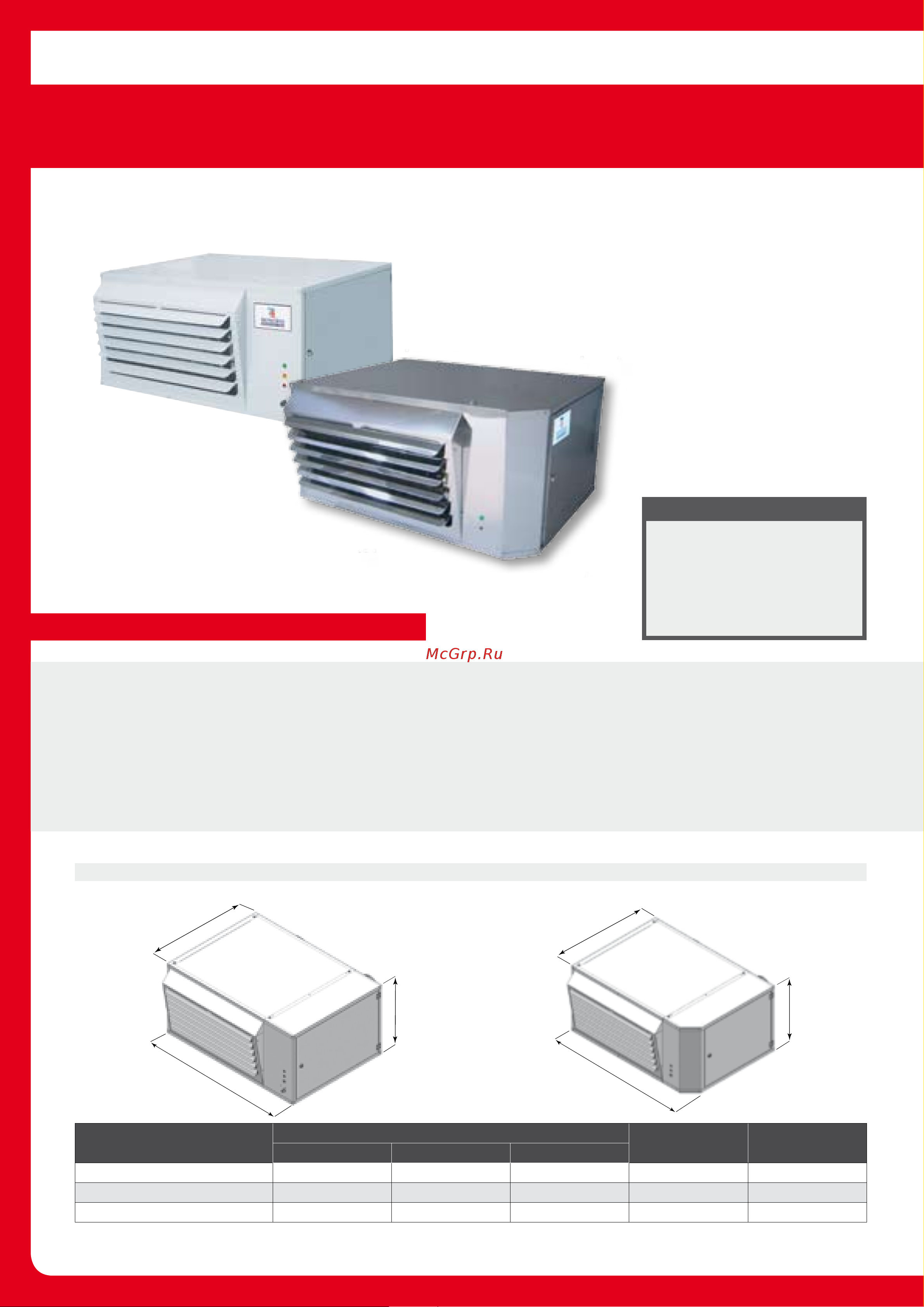

MINIJET
ULTRA-COMPACT SUSPENDED
GAS FIRED HEATERS
WARM AIR HEATERS
Suspended gas-fired air heaters, with high combustion efficiency. For indoor installation, with direct air
throw, patented high efficiency stainless steel AISI 430 combustion chamber and heat exchanger.
A totally sealed combustion circuit, centrifugal smoke extractor, electronic burner ignition and flame control
by ionisation, low sound pressure level propeller fans, electronic control and safety system, cabinet heater
robustly constructed out of painted steel panels, fitted with a radiant sheet insulation.
Available in two different versions:
MJ SINGLE STAGE with one heating capacity output and one air flow stage (ON-OFF).
MJ BI-POWER with heating output and airflow, on two stages.
B
A
C
B
A
C
Models
Dimensions mm
Chimney
Ø mm
Weight Kg
A B C
MINIJET 20 885 625 420 80 54
MINIJET 30 885 625 420 80 62
MINIJET 40 885 625 420 80 66
CERTIFIED IN ACCORDANCE WITH:
GAS DIRECTIVE 90/396/CEE
LOW TENSION DIRECTIVE 73/23/CEE
MACHINE DIRECTIVE 89/392/CEE
ELECTROMAGNETIC COMPATIBILITY
DIRECTIVE 89/336/CEE
OVERALL DIMENSIONS
SERIES
B
B
A
A
C
C
EFFICIENCY ∼ 92%
