70
71

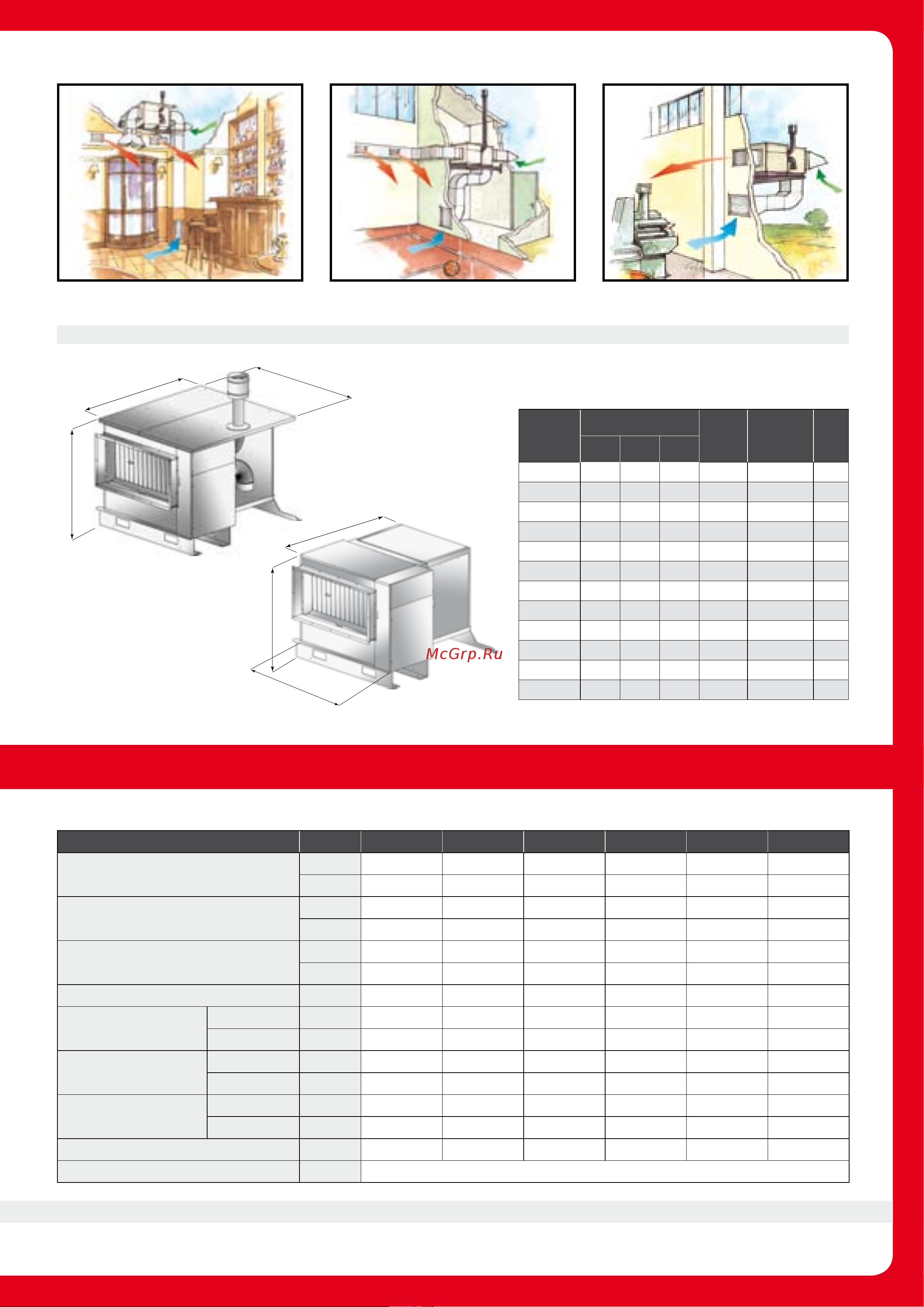

OVERALL DIMENSIONS
Models
Dimensions mm
Chim.
Ø mm
Burner air
inlet Ø mm
W.
Kg
A B C
UTK 26 717 1.280 1.070 100 100 150
UTK 36 797 1.280 1.070 100 100 168
UTK 46 977 1.280 1.070 100 100 196
UTK 66 1.244 1.335 1.070 100 150 245
UTK 86 1.773 1.335 1.070 100 150 316
UTK 106 2.013 1.335 1.070 100 150 351
UT 26 665 1.225 1.040 100 100 122
UT 36 745 1.225 1.040 100 100 133
UT 46 925 1.225 1.040 100 100 156
UT 66 1.170 1.275 1.040 100 150 200
UT 86 1.720 1.275 1.040 100 150 267
UT 106 1.960 1.275 1.040 100 150 311
A
B
C
B
C
A
SERiES UTK/UT SiNGLE-STAGE - SERiES UTK-2/UT-2 DOUBLE-STAGE
Models Unit UTK-UT 26 UTK-UT 36 UTK-UT 36 UTK-UT 66 UTK-UT 86 UTK-UT 106
Heating capacity input
kW 25,4 33,8 46,3 65 85 104,7
kcal/h 21.844 29.068 39.818 55.900 73.100 90.042
Max. USEFUL heating capacity output
kW 23 30,5 41,7 58,6 76,6 94,3
kcal/h 19.780 26.230 35.862 50.396 65.876 81.098
Min. USEFUL heating capacity output
(UTK-2 /UT2 double-stage)
kW 15,8 21 28,8 40,5 52,9 65,2
kcal/h 13.588 18.060 24.768 34.830 45.494 56.062
Nominal air flow rate Nm
3
/h 1.820 2.920 4.130 5.900 7.900 8.750
Temperature deviation
max. °K 37 31 30 30 29 32
min. °K 25 21 20 20 20 22
Useful static pressure
standard Pa 200 200 200 200 200 200
“S” version Pa 500 450 440 470 440 500
Motor capacity
standard kW 0,4 0,4 0,6 0,8 1,1 1,5
“S” version kW 0,6 0,8 1,1 1,5 2,2 3,0
Electrical supply V - 50Hz 230 ~ 230 ~ 230 ~ 400 3N ~ 400 3N ~ 400 3N ~
Electrical protection degree IP 44
Thermal Performance GASTEC certified
TECHNICAL SPECIFICATIONS SERIES
UTK-UT
B
B
C
C
A
A
