![Tecnoclima VX 930 [91/116] Overall dimensions](/img/pdf.png)

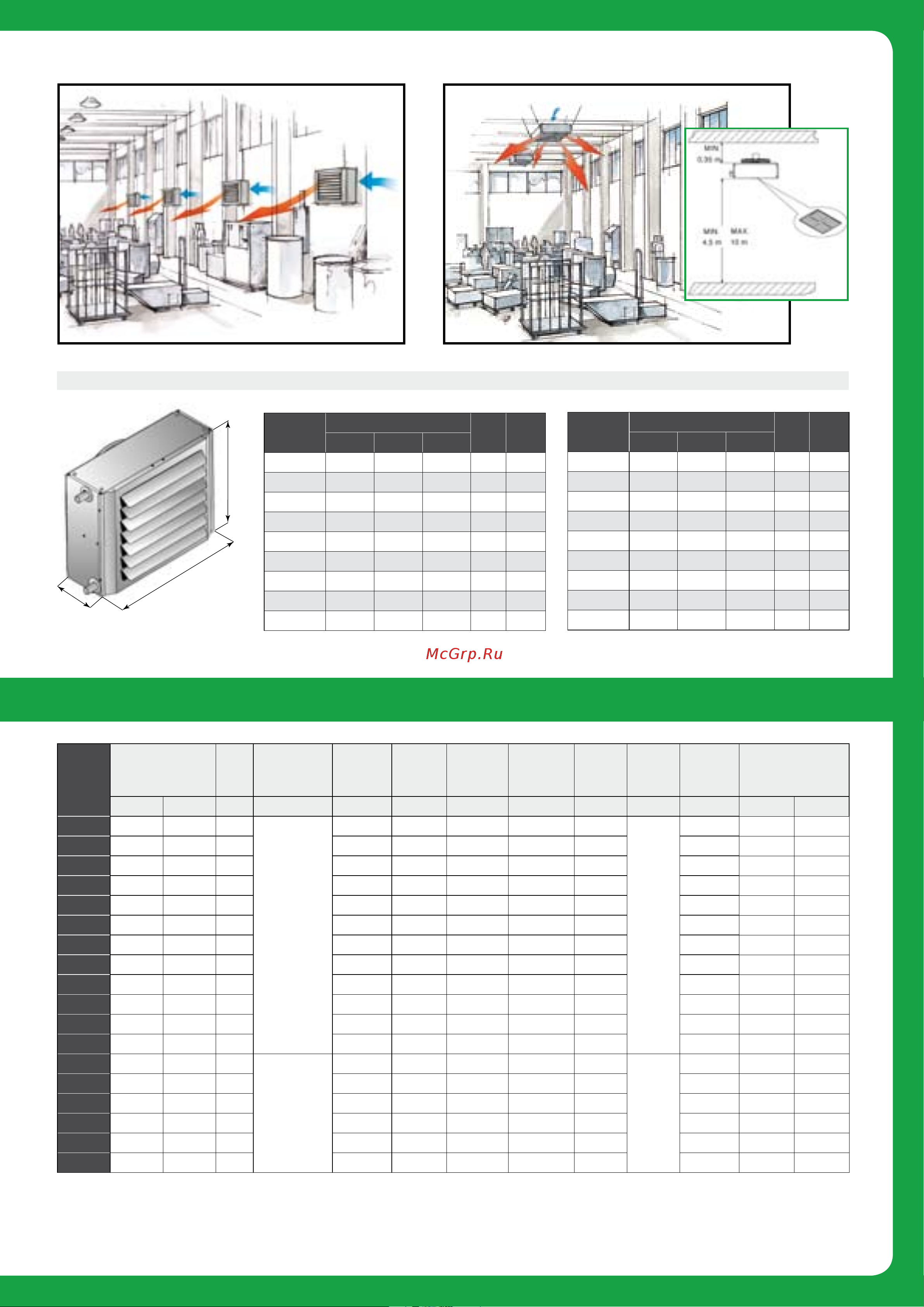

Tecnoclima VX 930 [91/116] Overall dimensions
![Tecnoclima VX 930 [91/116] Overall dimensions](/views2/1787161/page91/bg5b.png)
8888
8989
OVERALL DIMENSIONS
C
A
B
Models
Dimensions mm
Fan
N°
W.
Kg
A B C
AZN 12
555 280 390 1 14
AZN 13
555 280 390 1 15
AZN 22
605 280 440 1 16
AZN 23
605 280 440 1 18
AZN 32
655 280 490 1 19
AZN 33
655 280 490 1 21
AZN 42
705 280 540 1 23
AZN 43
705 280 540 1 24
AZN 52
755 280 590 1 25
Models
Dimensions mm
Fan
N°
W.
Kg
A B C
AZN 53
755 280 590 1 28
AZN 62
805 280 640 1 29
AZN 63
805 280 640 1 32
AZN 72
855 280 690 1 40
AZN 73
855 280 690 1 43
AZN 82
1.205 280 690 2 58
AZN 83
1.205 280 690 2 63
AZN 92
1.405 280 690 2 70
AZN 93
1.405 280 690 2 76
Models
USEFUL heating
capacity output
(1)
Ranks
N°
N° Fan rpm
max-med-min
Fan
N°
Max. air
flow
Air
throw
(2)
Water
pressure
drop
Water
flow
rate
Electr.
supply
Electrical
power
Sound pressure
[dB (A)]
(3)
Kw Kcal/h V/min
Nm
3
/h m KPa l/h
V - 50Hz
W
max speed min speed
AZN 12
13,3 11.450 2
1.400
900
700
1 1.750 22 26 785
230 ~
73 50 41
AZN 13
17,3 14.900 3 1 1.550 17 20 1.020 73 50 41
AZN 22
17,7 15.250 2 1 2.450 25 17 1.044 105 51 45
AZN 23
23,8 20.450 3 1 2.300 19 20 1.401 105 51 45
AZN 32
22,0 18.950 2 1 2.800 31 30 1.296 110 52 43
AZN 33
28,5 24.550 3 1 2.550 25 17 1.680 110 52 43
AZN 42
27,4 23.550 2 1 3.600 31 24 1.612 130 53 43
AZN 43
35,4 31.300 3 1 3.400 25 19 2.141 130 53 43
AZN 52
31,9 27.400 2 1 3.950 32 20 1.876 160 53 43
AZN 53
42,7 36.750 3 1 3.900 24 13 2.514 160 53 43
AZN 62
39,1 33.600 2 1 5.200 33 13 2.300 200 53 47
AZN 63
52,4 45.100 3 1 4.900 26 16 3.086 200 53 47
AZN 72
47,4 40.800 2
900
700
1 6.700 39 14 2.793
400 3N ~
245 52 46
AZN 73
63,0 54.150 3 1 6.200 37 12 3.707 245 52 46
AZN 82
67,7 58.200 2 2 8.500 38 11 3.985 260 54 49
AZN 83
87,8 75.550 3 2 7.700 32 9 5.173 260 54 49
AZN 92
88,8 76.400 2 2 12.550 40 21 5.229 500 53 48
AZN 93
114,9 98.800 3 2 10.900 38 17 6.764 500 53 48
(1) Heating: air inlet temperature 15°C, water temperature 85-70 °C, relative humidity 50%, atmospheric pressure 1013 mbar, at maximal fan speed.
(2) Distance from the equipment where with remaining air speed of 0,2 m/s.
(3) Equipment installed on the wall, at 3 meter distance from the floor, maximal and minimal fan speed, measured in free field.
TECHNICAL SPECIFICATIONS SERIES
AZN
