![Tecnoclima VX 930 [75/116] Overall dimensions](/img/pdf.png)
Tecnoclima VX 930 [75/116] Overall dimensions
![Tecnoclima VX 930 [75/116] Overall dimensions](/views2/1787161/page75/bg4b.png)
72
73
TECHNICAL SPECIFICATIONS SERIE
TC-E
Model TC375E - TC1000E are delivered with the base detached from the main body.

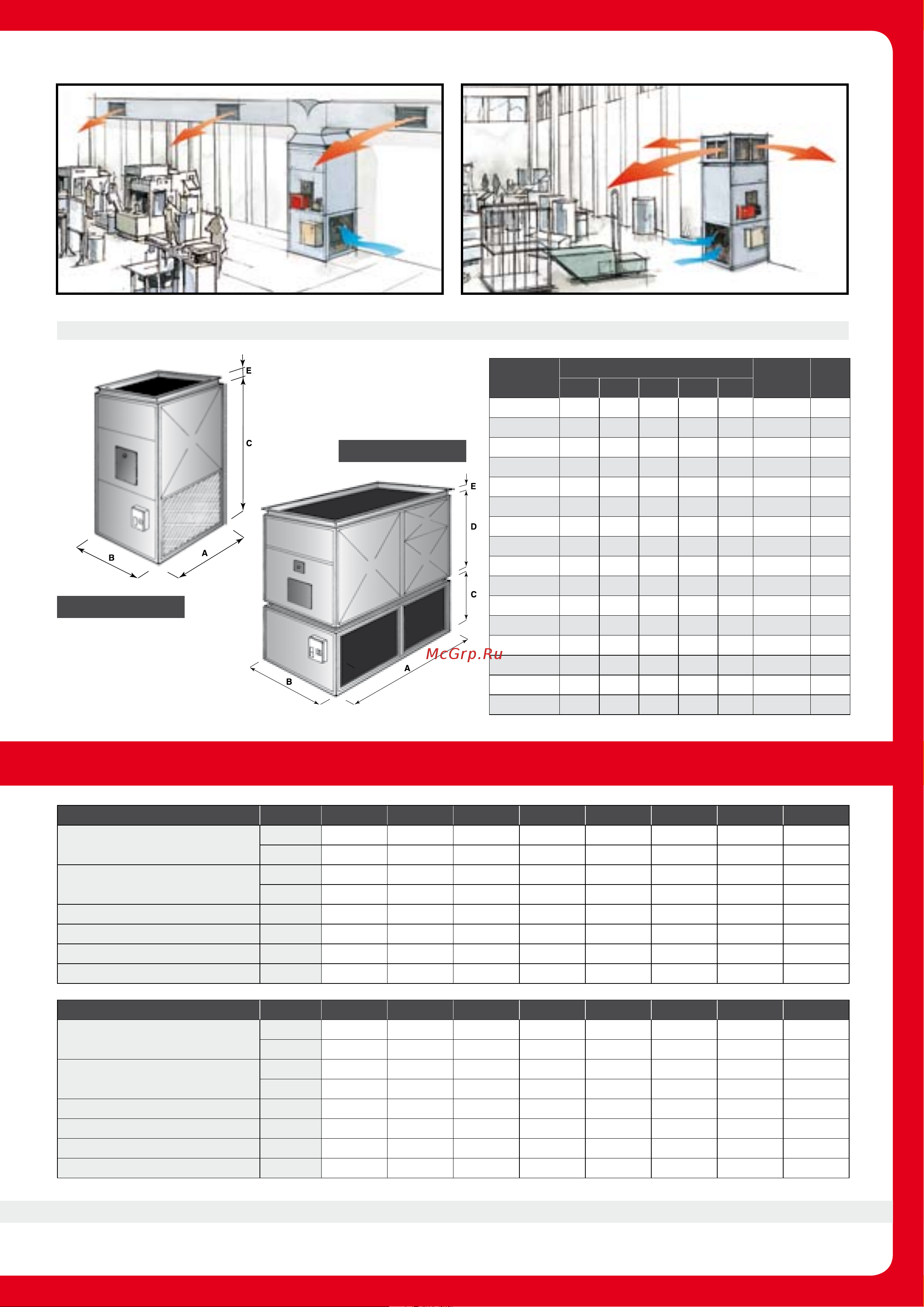

OVERALL DIMENSIONS
Models
Dimensions mm
Chimney
Ø mm
W. Kg
A B C D E
TC 45 E
800 540 1.580 – – 150 125
TC 75 E
890 680 1.825 – – 180 130
TC 80 E
1.060 760 1.926 – – 200 245
TC 100 E
1.060 760 1.926 – – 200 249
TC 125 E
1.300 900 2.120 – 100 250 412
TC 150 E
1.300 900 2.120 – 100 250 437
TC 175 E
1.500 1.000 2.120 – 100 250 520
TC 200 E
1.500 1.000 2.120 – 100 250 525
TC 250 E
1.700 1.200 2.350 – 100 300 694
TC 300 E
1.700 1.200 2.350 – 100 300 734
TC 375 E
2.090 1.270 1.000 1.870 100 330 1.072
TC 450 E
2.090 1.270 1.000 1.870 100 330 1.162
TC 500 E
2.500 1.500 1.000 2.120 100 370 1.497
TC 600 E
2.500 1.500 1.000 2.120 100 370 1.622
TC 800 E
3.500 1.500 1.000 2.120 100 380 2.060
TC 1000 E
3.500 1.500 1.200 2.120 170 380 2.400
TC-E 375 ÷ 1000
Models
Unit
TC 45 E TC 75 E TC 80 E TC 100 E TC 125 E TC 150 E TC 175 E TC 200 E
Heating capacity input
kW 60,0 94,0 103,2 122,3 161,2 190,0 225,8 258,8
kcal/h 51.600 80.850 88.790 105.150 138.600 163.400 194.225 222.600
USEFUL heating capacity
output
kW 54,0 82,2 93,0 107,0 145,0 168,0 204,0 230,0
kcal/h 46.450 70.700 80.000 92.000 125.000 144.600 175.000 198.100
Air flow rate
Nm
3
/h 4.300 6.000 7.600 7.600 9.600 11.500 13.400 15.300
Useful static pressure Pa 160 160 160 160 220 200 200 180
Electric motor Kw 0,55 1,10 1,50 1,50 2,20 3,00 3,00 4,00
Electrical supply
V - 50Hz
230 ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~
Models
Unit
TC 250 E TC 300 E TC 375 E TC 450 E TC 500 E TC 600 E TC 800 E TC 1000 E
Heating capacity input
kW 322,6 391,0 460,6 590,0 645,3 769,0 1.000,0 1.160,0
kcal/h 277.470 336.250 396.160 507.300 554.940 661.500 860.000 997.600
USEFUL heating capacity
output
kW 291,0 348,0 415,0 523,0 581,0 683,0 884,0 1.044,0
kcal/h 250.000 298.950 356.900 450.000 500.000 587.400 760.000 897.840
Air flow rate
Nm
3
/h 19.000 23.000 28.700 34.500 40.200 49.000 67.000 70.000
Useful static pressure Pa 200 170 280 220 220 180 200 200
Electric motor Kw 4,00 5,50 7,50 9,20 11,00 15,00 2 x 9,20 2x11,0
Electrical supply
V - 50Hz
400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~
Thermal Performance GASTEC certified
TECHNICAL SPECIFICATIONS SERIES
TC-E
TC-E 45 ÷ 300
