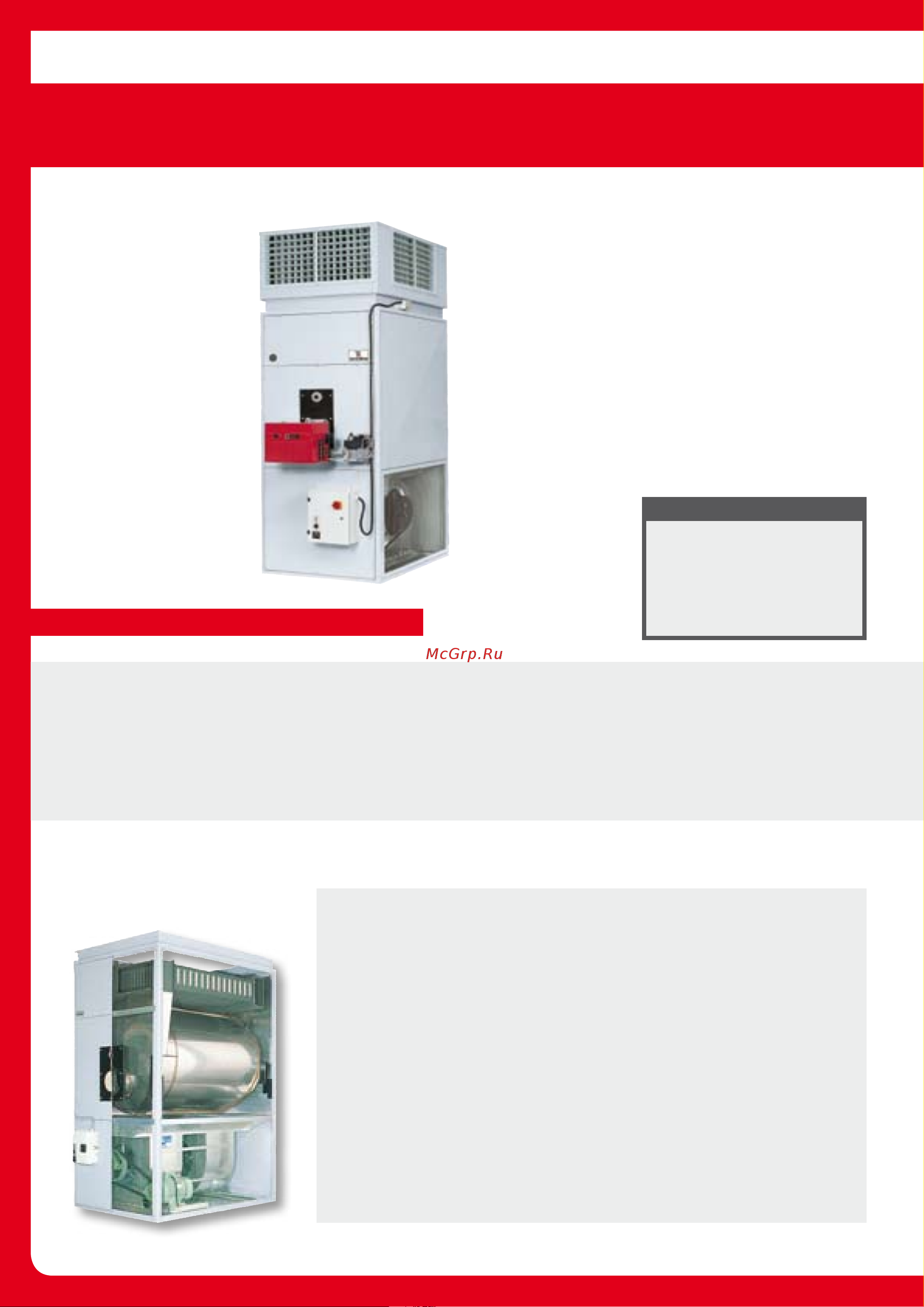

High-efficiency, floor-mounted warm air heaters, working with either gas or oil and suitable to be installed inside.
Their power can range from 60 to 1,160 KW. Heaters can provide both direct and canalized air diffusion. The
particularly solid flame-inversion combustion chamber made of AISI 430 stainless steel featuring low thermal
load, as well as the high-efficiency heat exchanger, make this equipment suitable even for the most demanding
tasks whilst allowing to cut off operating costs. The centrifugal fans are driven by a variable gear transmission
belt. Heaters can come in the following versions: single-phase (On/Off), two-phase, low NOx, with variable air
flow rate and for very high static pressure.
TC
-
E
GAS AND OIL FIRED SPACE HEATERS
FOR WIDE SPACES
WARM AIR HEATERS
CONSTRUCTION CHARACTERISTICS
• Cabinetconsistsofasteelsheetsupportingstructurewithdetachableclosing
panels internally lined with radiation-proof heat insulation and finely epoxy-
painted.
• Fangroupincludesoneormorecentrifugaldoubleintakefans,staticallyand
dynamically balanced, driven through a variable gear transmission by an elec-
tric motor complete with belt tightner.
• Electricequipment-forautomaticormanualfancontrolandforemergency
stopping of the burner in case of air overheating. Inclusive of electric switch-
board and FAN-LIMIT double thermostat.
High efficiency heat exchanger
• Combustion chamber made of AISI 430 18% chromium stainless steel,
flame-inversion model with low thermal load, cylindrical or ellipsoidal, perfectly
cooled in all of its points.
• Exchangeelementswithsteelplate exhaust flues,flattubularsections,with
swirl impressions for maximum thermal efficiency.
• Exhaustmanifoldfrontandrear,steel,withwideinspectiondoorsforrational
and easy cleaning.
SERIES
EFFICIENCY ∼ 90%
CERTIFIED IN ACCORDANCE WITH:
GAS DIRECTIVE 90/396/CEE
LOW TENSION DIRECTIVE 73/23/CEE
MACHINE DIRECTIVE 89/392/CEE
ELECTROMAGNETIC COMPATIBILITY
DIRECTIVE 89/336/CEE
