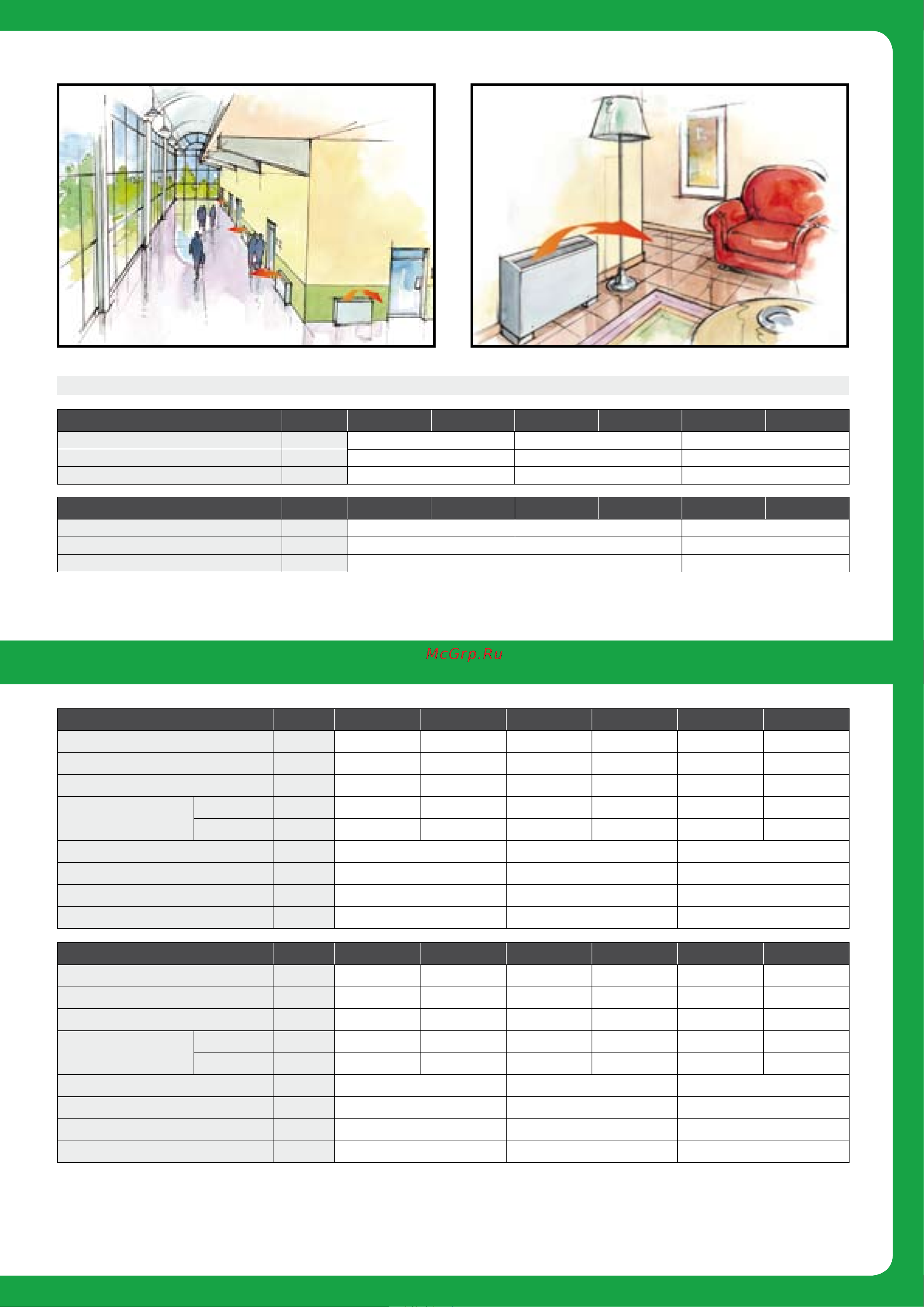

OVERALL DIMENSIONS
Models Unit VX 730 VX 830 VX 930 VX 1030 VX 1130 VX 1230
Lenght mm 1.270 1.470 1.670
Height mm 520 520 520
Width mm 220 220 220
Models Unit VX 130 VX 230 VX 330 VX 430 VX 530 VX 630
Lenght mm 670 870 1.070
Height mm 520 520 520
Width mm 220 220 220
Models Unit VX 130 VX 230 VX 330 VX 430 VX 530 VX 630
Cooling capacity
(1)
W 1.500 2.000 2.530 3.020 3.750 4.250
Heating capacity
(2)
W 3.430 4.330 5.510 6.140 7.980 9.210
Nominal air flow rate Nm
3
/h 350 360 435 447 647 665
Water flow rate
Cooling l/h 258 344 435 520 645 732
Heating l/h 296 373 475 528 687 792
Noise level (min. med. max) db(A) 28 - 34 - 38 29 - 35 - 40 30 - 36 - 42
Speeds N° N 6 6 6
Absorbed electrical power W - A 58W - 0,25A 83W - 0,36A 108W - 0,49A
Electrical supply
V - 50Hz
230 ~ 230 ~ 230 ~
Models Unit VX 730 VX 830 VX 930 VX 1030 VX 1130 VX 1230
Cooling capacity
(1)
W 5.520 6.420 7.530 9.020 9.600 10.710
Heating capacity
(2)
W 12.160 13.620 17.020 19.070 21.110 24.200
Nominal air flow rate Nm
3
/h 975 1.003 1.431 1.472 1.908 1.962
Water flow rate
Cooling l/h 950 1.105 1.296 1.552 1.652 1.844
Heating l/h 1.046 1.172 1.464 1.640 1.816 2.081
Noise level (min. med. max) db(A) 32 - 38 - 43 37 - 44 - 49 38 - 45 - 50
Speeds N° N 6 6 5
Absorbed electrical power W - A 147W - 0,65A 159W - 0,71A 270W - 1,20A
Electrical supply
V - 50Hz
230 ~ 230 ~ 230 ~
(1) Cooling: room air temperature 27°C ( dry bulb ), 19°C (wet bulb ) – Water temp. 7/12°C.
(2) Heating: water temperature 70/60°C, room air temperature 20°C, relative humidity 50%.
TECHNICAL SPECIFICATIONS SERIES
