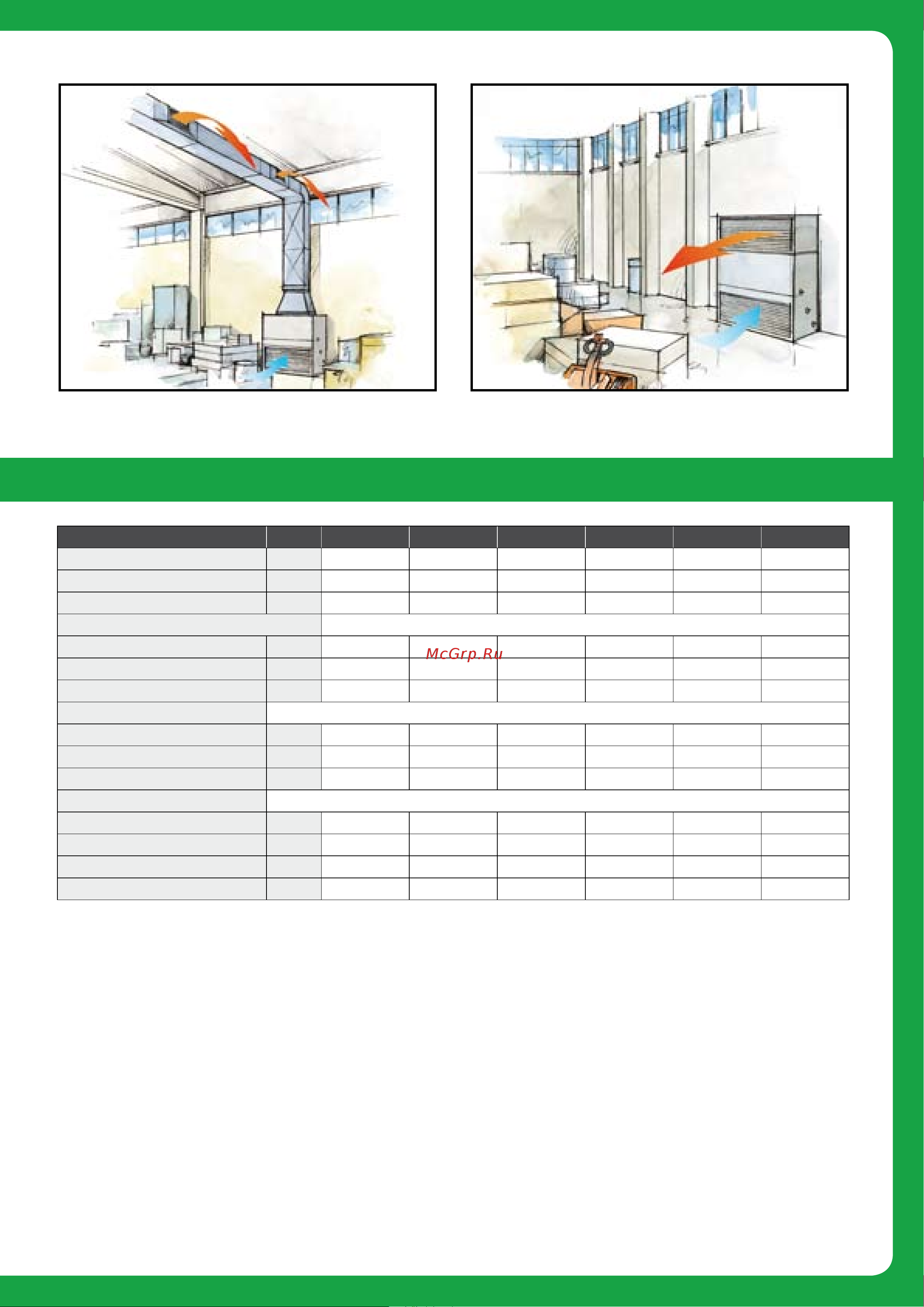

Models Unit NTN 30 NTN 53 NTN 72 NTN 95 NTN 130 NTN 175
Nominal air flow rate Nm
3
/h 3.000 5.300 7.200 9.600 13.000 17.500
Air flow rate (MIN – MAX) Nm
3
/h 2.300-3.800 3.900-6.700 6.300-8.100 8.200-11.000 11.000-15.000 15.000-20.000
Static pressure Pa 150-370 180-350 250-340 250-375 260-350 250-400
Fan type CENTRIFUGAL
N° speed n° 1 1 1 1 1 1
Motor power kW 0,75 1,5 2,2 2,2 4,0 5,5
Electrical supply
V - 50Hz
400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~ 400 3N ~
Warm water 4-ranks battery
Heating capacity
(1)
kW 52.7 84.8 112.4 152.6 206.4 283.2
Water flow rate m
3
/h 4.63 7.44 9.91 13.40 18.15 24.87
Water pressure drop kPa 15 15 27 33 41 45
Cooled water 6-ranks battery
Total cooling capacity
(2)
kW 36.2 60.7 78.3 108.3 146.1 200.1
Sensible cooling capacity
(2)
kW 19.9 34 43.9 60.6 81.8 110.1
Water flow rate m
3
/h 6 10.1 13.1 18.1 24.4 33.5
Water pressure drop kPa 15 42 27 35 44 71
(1)
Heating: incoming air temperature 0°C ( dry bulb ). - Incoming/outgoing Water temperature 70/60°C – Data referred to the nominal air flow
.
(2)
Cooling: incoming air temperature 32°C ( dry bulb ), relative humidity 50% - Incoming/outgoing Water temperature 7/12°C – Data referred to the nominal air flow
.
TECHNICAL SPECIFICATIONS SERIES
NTN
