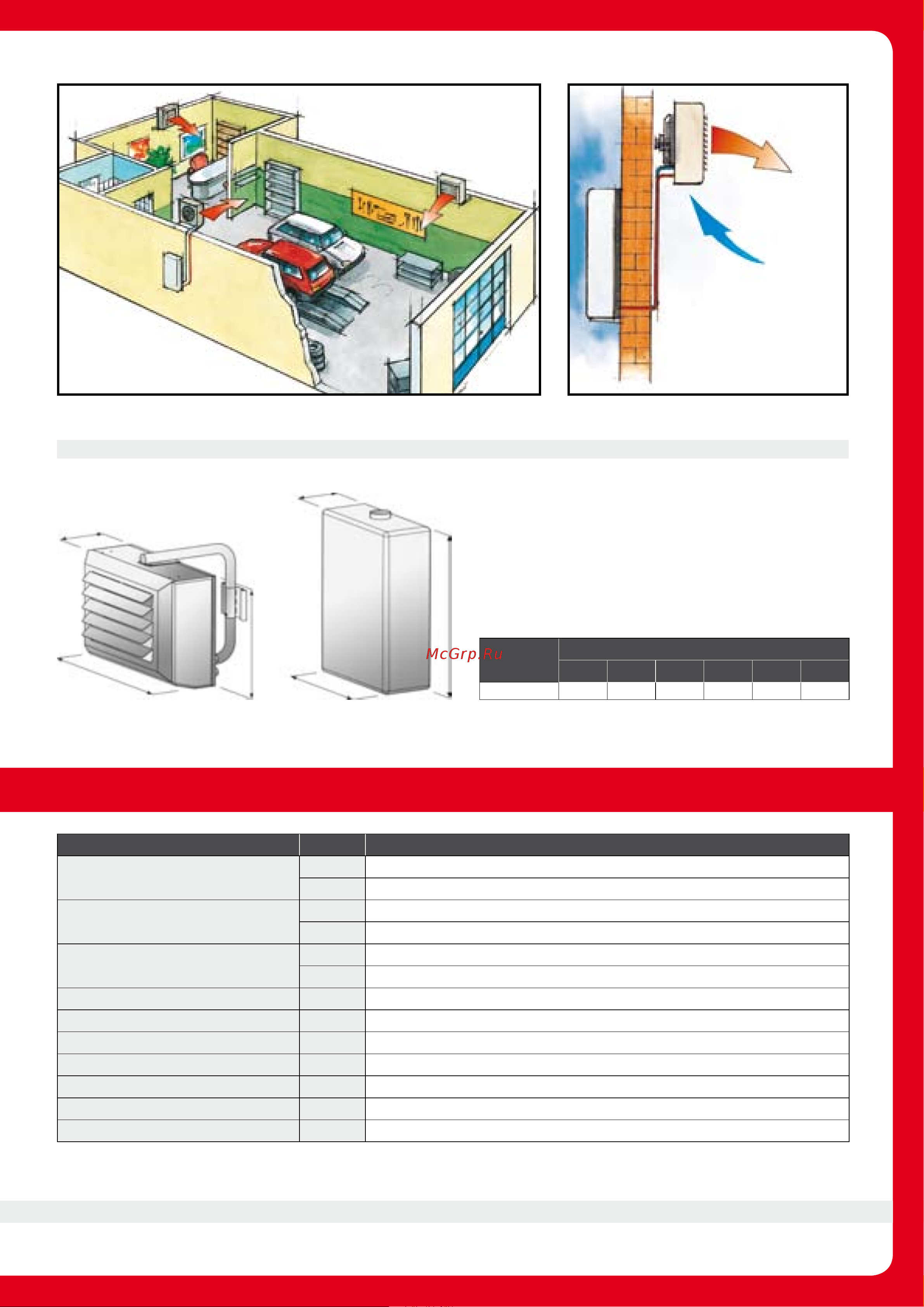

![Tecnoclima VX 930 [89/116] Tandem](/views2/1787161/page89/bg59.png)
86
87
Models
Dimensions mm
A B C D E F
TANDEM 600 254 815 800 370 550
OVERALL DIMENSIONS
D
E
F
C
B
A
Models
Unit TANDEM
Heating capacity input
kW 34,9
kcal/h 30.000
Max. USEFUL heating capacity
output
(1)
kW 32,0
kcal/h 27.500
Min. USEFUL heating capacity
output
kW 11,5
kcal/h 9.900
Electrical protection degree IP 44
Air flow rate Nm
3
/h 3.950
Temperature deviation K 24
Nominal water flow rate l/h 1.500
Battery ranks n° 2
Max. absorbed electrical power W 160
Electrical supply
V - 50Hz
230 ~
(1) Maximum heating efficency with temperature of boiler + 80,5°C, ambient temperature + 15°C, maximal fan speed
Thermal Performance GASTEC certified
TECHNICAL SPECIFICATIONS SERIES
TANDEM
