Tecnoclima VX 930 [83/116] Overall dimensions
![Tecnoclima VX 930 [83/116] Overall dimensions](/views2/1787161/page83/bg53.png)
80
81
Models
Dimensions mm
Chimney
Ø mm
Weight
Kg
A B C
HB 101
968 500 1.395 150 128
HB 102
968 500 1.395 150 128
HB 103
968 500 1.395 150 128
HB 131
968 600 1.395 150 132
HB 132
968 600 1.395 150 132

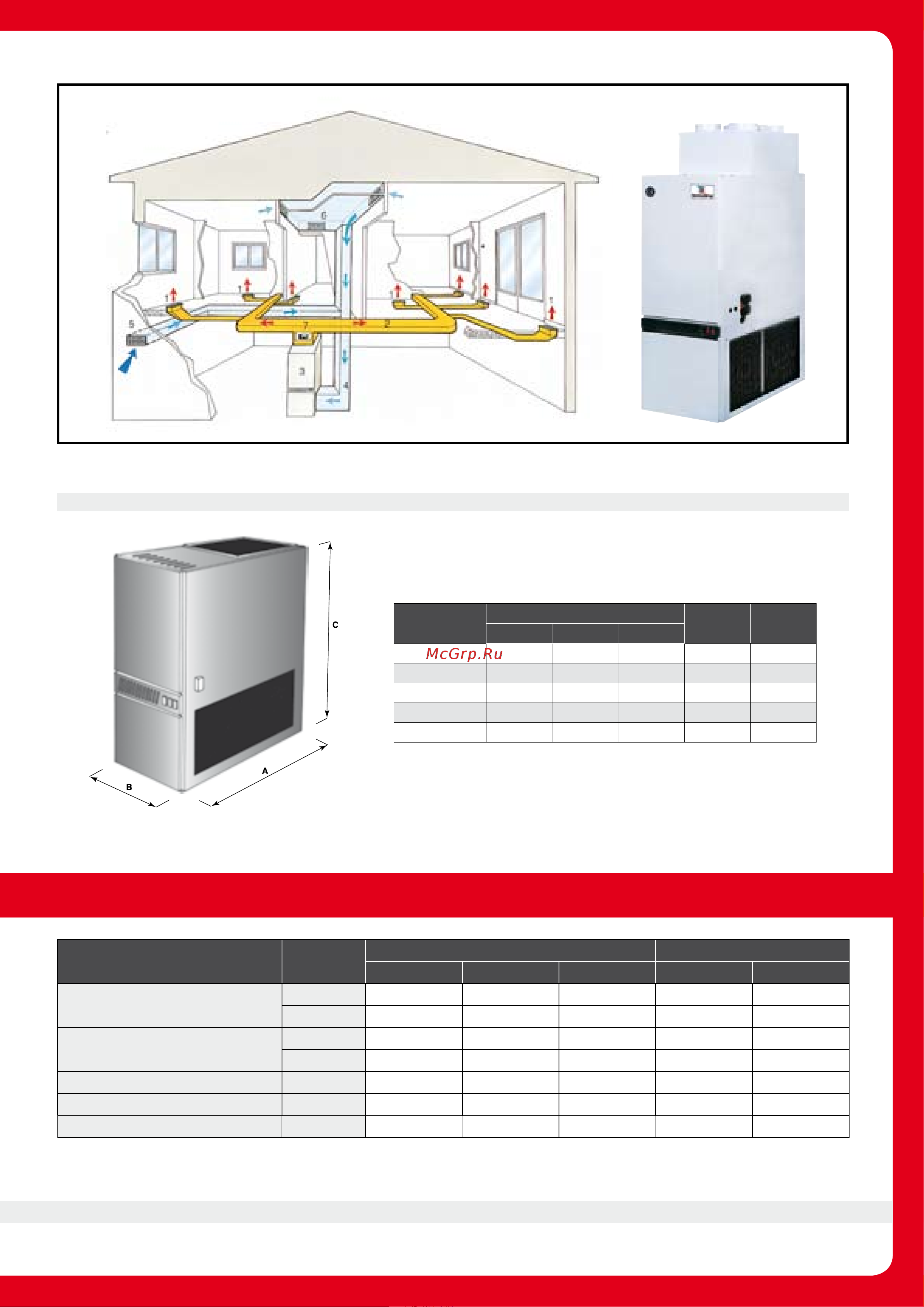

OVERALL DIMENSIONS
Models
Unit
HB 100 HB 130
HB 101 HB 102 HB 103 HB 131 HB 132
Heating capacity input
kW 21,9 25,6 32,1 36,1 41,2
kcal/h 18.826 22.075 27.654 31.042 35.437
USEFUL heating capacity output
kW 19,7 23,2 29,1 32,5 37,2
kcal/h 17.000 20.000 25.000 28.000 32.000
Air flow rate Nm
3
/h 1.400 1.550 2.100 2.450 2.850
Fan motor W 245 245 245 245
245
Electrical supply
V - 50Hz
230 ~ 230 ~ 230 ~ 230 ~ 230 ~
Thermal Performance GASTEC certified
TECHNICAL SPECIFICATIONS SERIES
HB
