PECULIARITY
- Maximum energy efficiency with flame modulation system and functioning at condensation
conditions.
- Maximum efficiency about 102%.
- AISI 430 stainless steel combustion chamber with elliptical cross-section and low heating load.
- AISI 304 stainless steel, corrosion-resistant heat exchanger featuring flat section fume pipes
with swirl impressions.
- Screw-threaded connector for condensate discharge.
- Suitable for coupling with all kinds of modulating burners.
- Standard version 500 PA, “S version” with high static pressure 800 PA.
- Version suitable for running at extreme temperatures (down to -45°C).
- Standard version running until -20°C, down to -45°C with the low-temperature kit.
- Complementary supplement cooling unit (direct expansion exchanger or cooled water coil)
mixing, renewal, filtering, air expulsion (M-UTAK).
UTAK

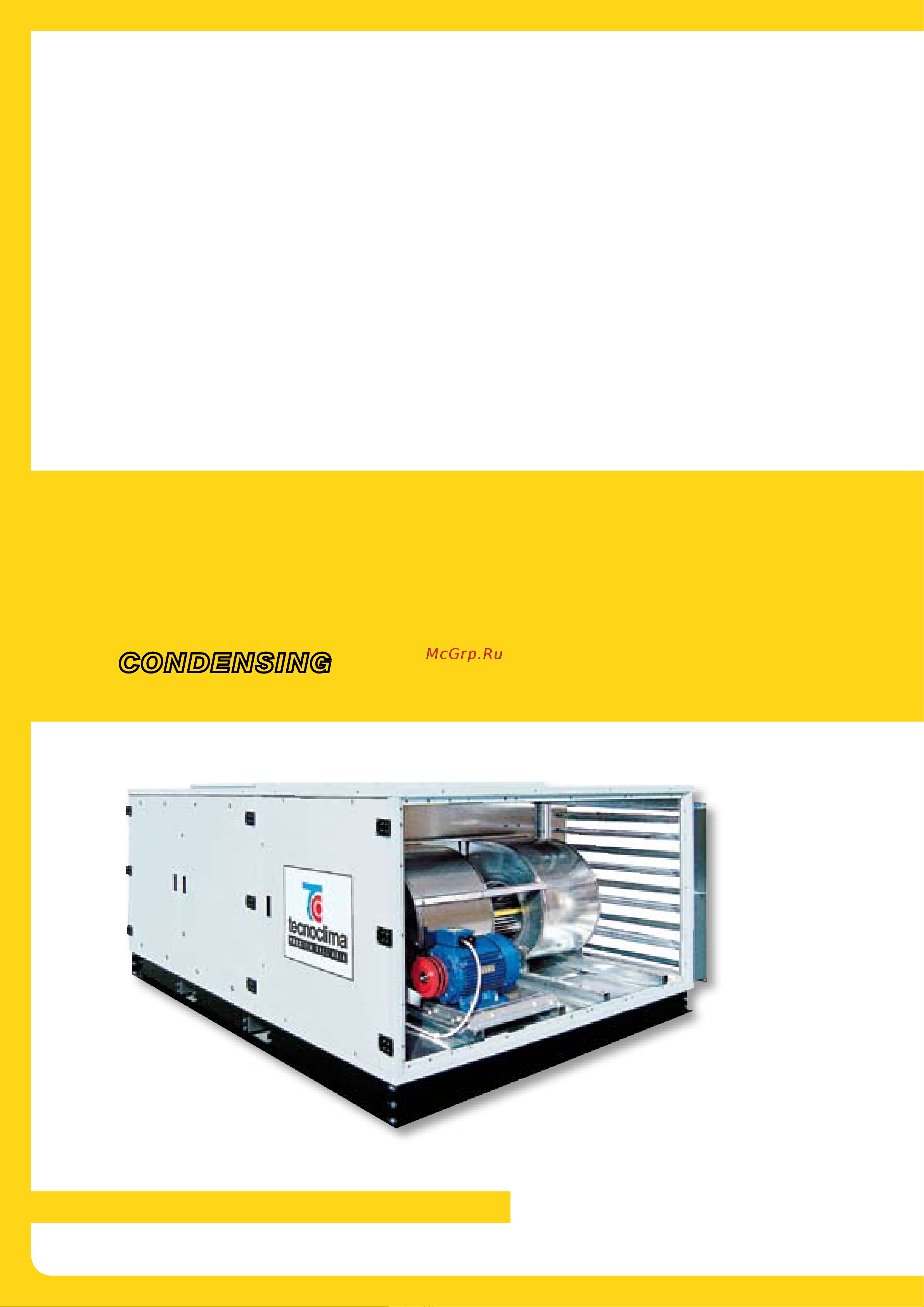

condensing AIR TREATMENT UNIT FEATURING
HIGH AERAULIC PERFORMANCES
EFFICIENCY ~102%
SERIES
