Tecnoclima VX 930 [80/116] Efficiency 90
![Tecnoclima VX 930 [80/116] Efficiency 90](/views2/1787161/page80/bg50.png)
78
79

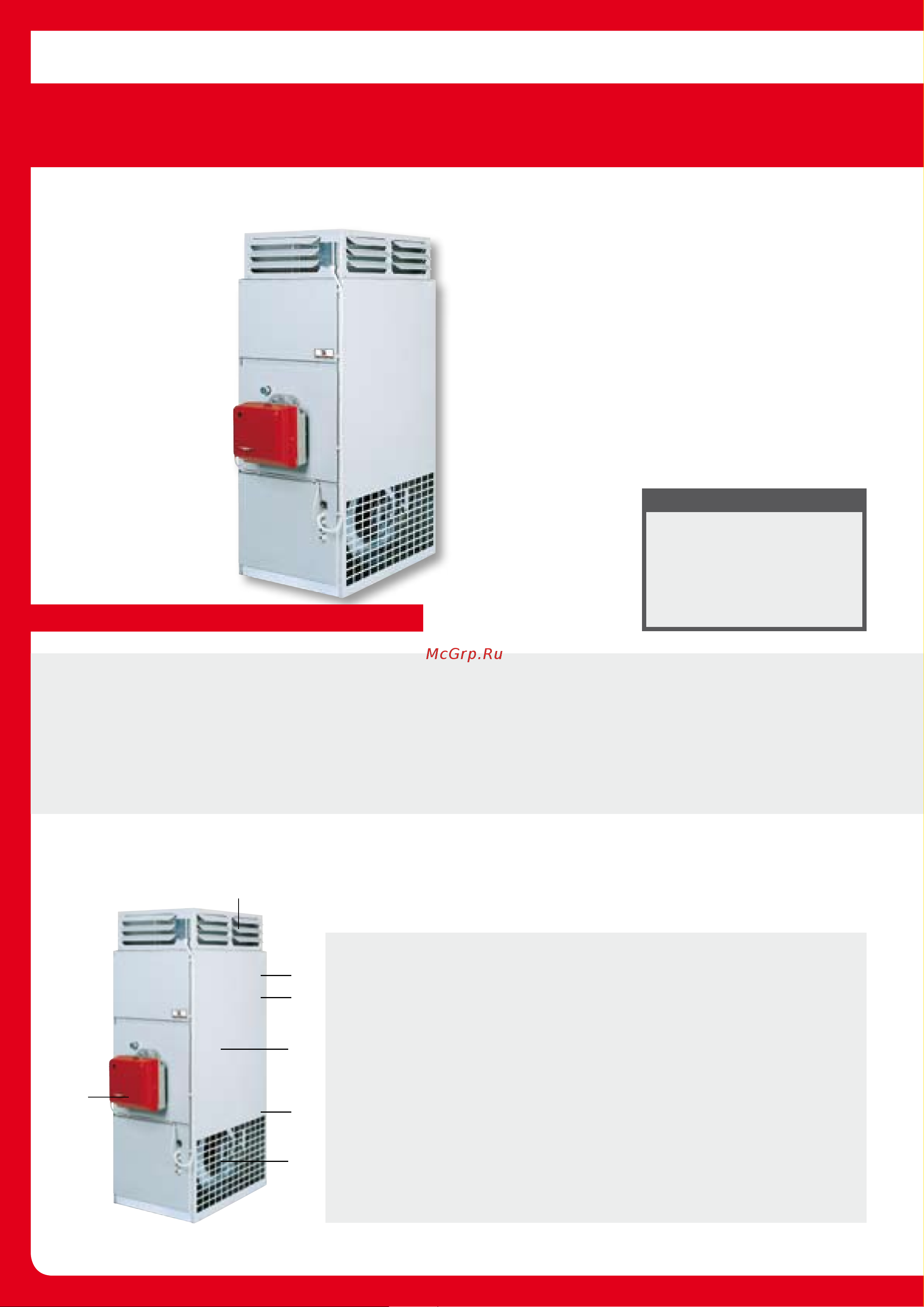

High efficiency cabinet warm air heaters for industrial and commercial environments heating.
Warm air heaters, with direct air distribution through its own incorporated air outlet plenum. Stainless steel
AISI 430 high efficiency combustion chamber. Low sound pressure centrifugal fan with fix transmission
pulley, electronic control and safety system. The cabinet is robustly constructed by galvanized pre-coated
steel panels fitted with radiant sheet insulation.
Tecnoclima’s 7 models have been designed for heating medium size environments like industrial sheds and
warehouse, sport centres and laboratories.
TE
GAS AND OIL SPACE HEATERS
FOR DIRECT AIR DIFFUSION
WARM AIR HEATERS
CONSTRUCTION CHARACTERISTICS
1. Combustion chamber with flame inversion made of AISI 430 stainless
steel, resistant to high temperatures, with low thermal load, perfectly
cooled in all of its points.
2. Exchange elements with flats tubular section, with swirl impressions for
maximum thermal efficiency.
3. The rear exhaust manifold with wide inspection door for rational and
easy cleaning.
4. External cabinet robustly constructed formed by galvanized pre-coated
steel panels fitted with radiant sheet insulation.
5. Burner.
6. Direct air diffusion plenum with 4 side outlet with horizontals fins, which
can be closed to exclude eventually one side.
7. Centrifugal fan with double aspiration, with electrical motor.
5
1
2
3
4
7
6
SERIES
CERTIFIED IN ACCORDANCE WITH:
GAS DIRECTIVE 90/396/CEE
LOW TENSION DIRECTIVE 73/23/CEE
MACHINE DIRECTIVE 89/392/CEE
ELECTROMAGNETIC COMPATIBILITY
DIRECTIVE 89/336/CEE
EFFICIENCY ∼ 90%
