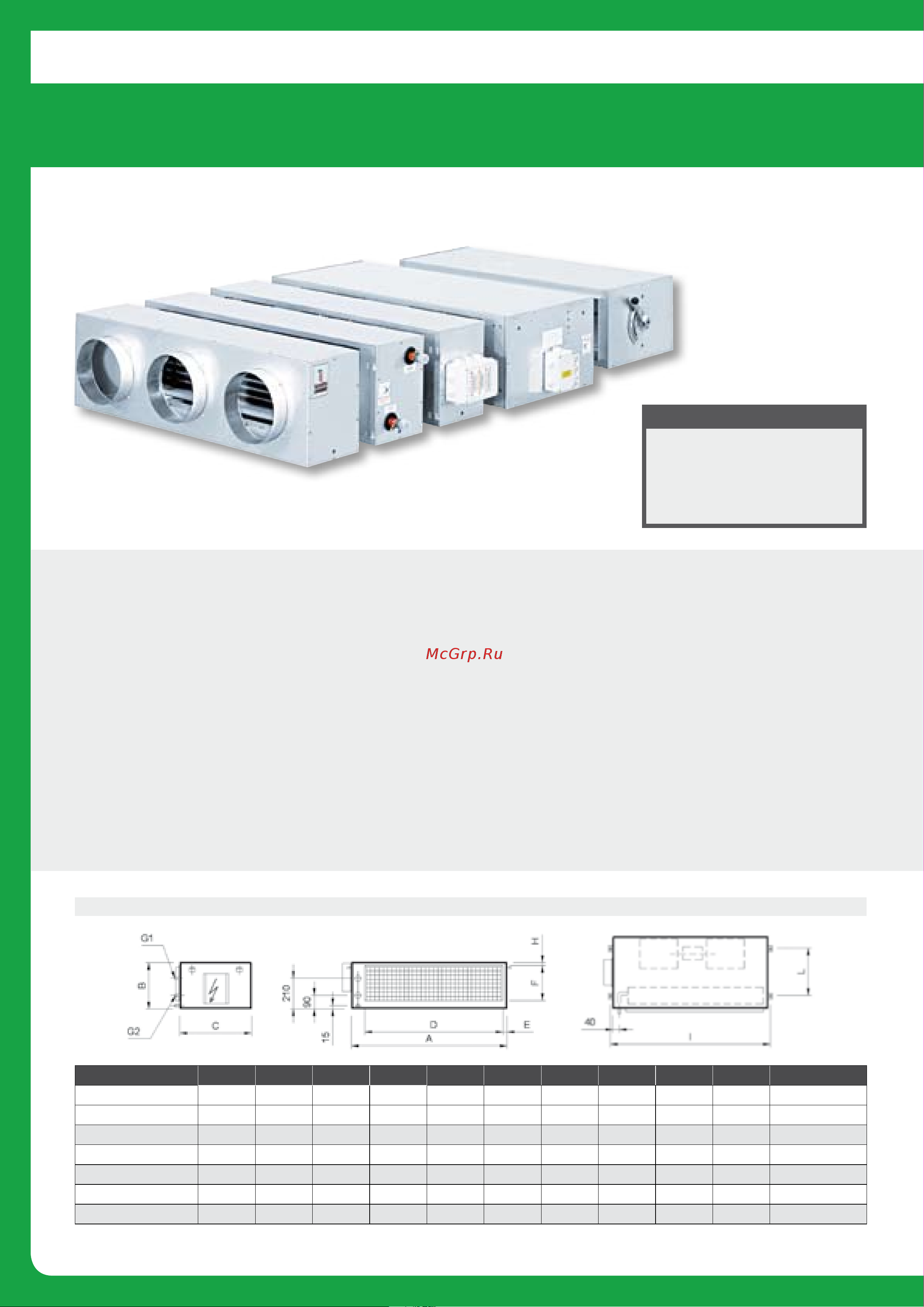

The NTPM units size is extremely small, thereby allowing their installation even where little room is available -

as it often happens in residential and commercial premises. The units’ basic version consists in a “module +

battery” group (either at direct expansion functioning mode or working with water) combined with an electro-

ventilator that can be pulled out downwards for inspection/inspecting purposes. Two versions available: hori-

zontally oriented called NTPM/O; vertically oriented called NTPM/V. The units are made of Aluzink steel sheet

and are coated with polyethylene and polyester sheets inside. All appliances are equipped with heat exchange

battery made of copper pipes and aluminium fins, collectors featuring GAS screw thread for the water unit and

SAE screw thread for the direct expansion unit. All batteries include a condensation basin made of AISI 304

stainless steel. The basic unit is equipped with three-speed centrifugal electro-ventilators whose fan wheels

are balanced both statically and dynamically. Noise and vibrations have been reduced to the minimum accord-

ing to the product’s marketing applications. The basic unit can be equipped with filters, whose periodical

cleaning is made easier thanks to a specific pull-out device. Connection to the electrical network is eased by

a terminal strip on the equipment’s side, where also the ventilator terminals are connected. The terminal strip

is protected by a relay in all product versions (except for the 09 version, where such kind of controlling device

is unnecessary due to its very low electrical absorption).

NTPM

VARIABLY

COMBINED UNITS

MODULAR AIR HANDLING UNITS

Models A B C D E F G1 - G2 H I L

Weight (kg)

NTPM 09

645 296 520 500 40 210 3/4” 30 675 335 24

NTPM 15

1.000 296 520 860 40 210 3/4” 30 1.035 335 34

NTPM 17

1.000 296 520 860 40 210 3/4” 30 1.035 335 37

NTPM 21

1.100 325 600 960 40 235 3/4” 30 1.135 335 41

NTPM 24

1.345 325 600 1.200 40 235 3/4” 30 1.375 335 47

NTPM 36

1.345 375 600 1.200 40 260 1” 30 1.375 335 55

NTPM 43

1.345 375 600 1.200 40 260 1” 30 1.375 335 60

OVERALL DIMENSIONS

SERIES

CERTIFIED IN ACCORDANCE WITH

LOW TENSION DIRECTIVE 73/23/CEE

MACHINE DIRECTIVE 89/392/CEE

ELECTROMAGNETIC COMPATIBILITY

DIRECTIVE 89/336/CEE
