![Tecnoclima VX 930 [85/116] Overall dimensions](/img/pdf.png)
Tecnoclima VX 930 [85/116] Overall dimensions
![Tecnoclima VX 930 [85/116] Overall dimensions](/views2/1787161/page85/bg55.png)
82
83

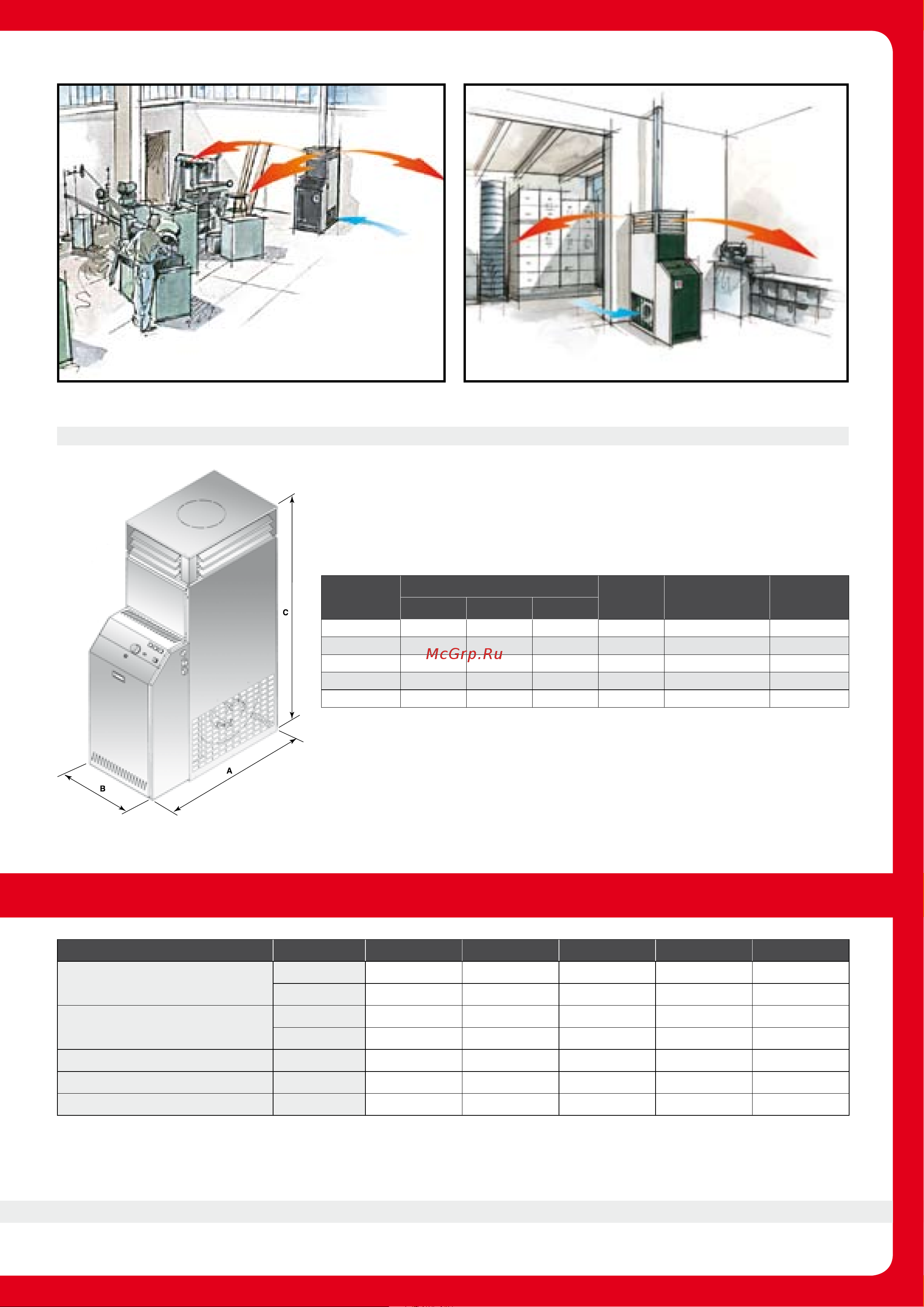

OVERALL DIMENSIONS
Models
Dimensions mm
Chimney
Ø mm
Tank capacity
litres
Weight Kg
A B C
BA 30 S
1.050 460 1.600 120 20 132
BA 40 S
1.050 460 1.600 120 55 137
BA 60 S
1.120 540 1.700 150 75 173
BA 80 S
1.220 680 1.885 180 105 197
BA 100 S
1.400 760 2.000 200 135 264
Models
Unit BA 30 S BA 40 S BA 60 S BA 80 S BA 100 S
Heating capacity input
kW 33,7 46,8 71,1 93 104,6
kcal/h 29.000 40.300 61.200 80.000 90.000
USEFUL heating capacity output
kW 30,4 42,2 64,4 83,9 94,2
kcal/h 26.130 36.300 55.400 72.100 81.090
Air flow rate Nm
3
/h 1.900 2.800 4.500 5.300 6.300
Electric motor power kW 0,245 0,245 0,59 0,736 0,736
Electrical supply
V - 50Hz
230 ~ 230 ~ 230 ~ 230 ~ 230 ~
Thermal Performance GASTEC certified
TECHNICAL SPECIFICATIONS SERIES
BA-S
