Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 3-7

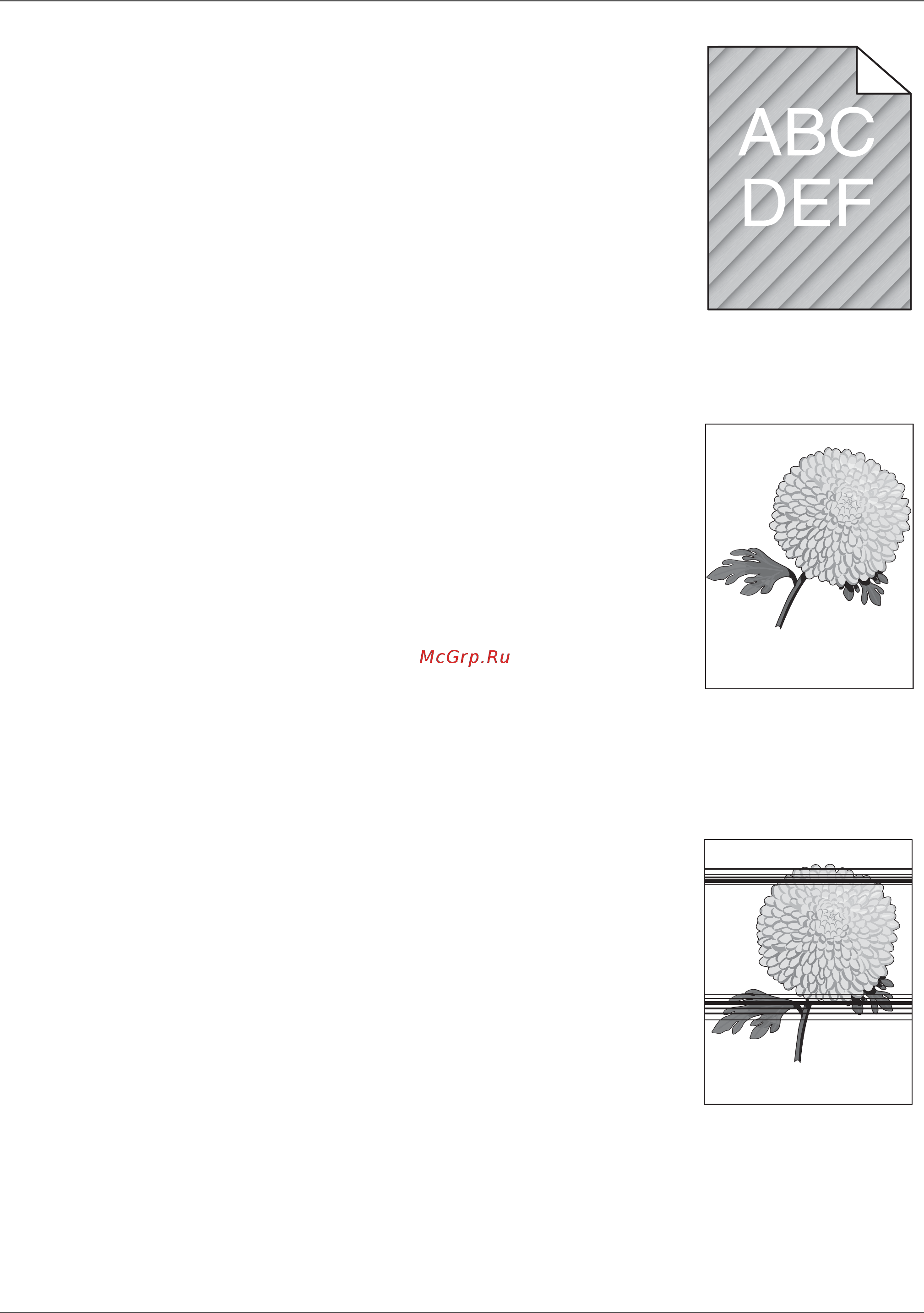

Image Quality
Auger Mark
Diagonal marks of non-uniform density in
halftone areas.
a. The toner may be low. Change the Toner
Cartridge.
b. Test the Toner Motor.
Skewed Images
a. Verify that the paper guides are set
correctly.
b. Verify that the correct print media is being
used.
Horizontal Streaks
The toner may be low. Change the Toner
Cartridge.
s3040-121
Skew 2
Horizontal Stripes
