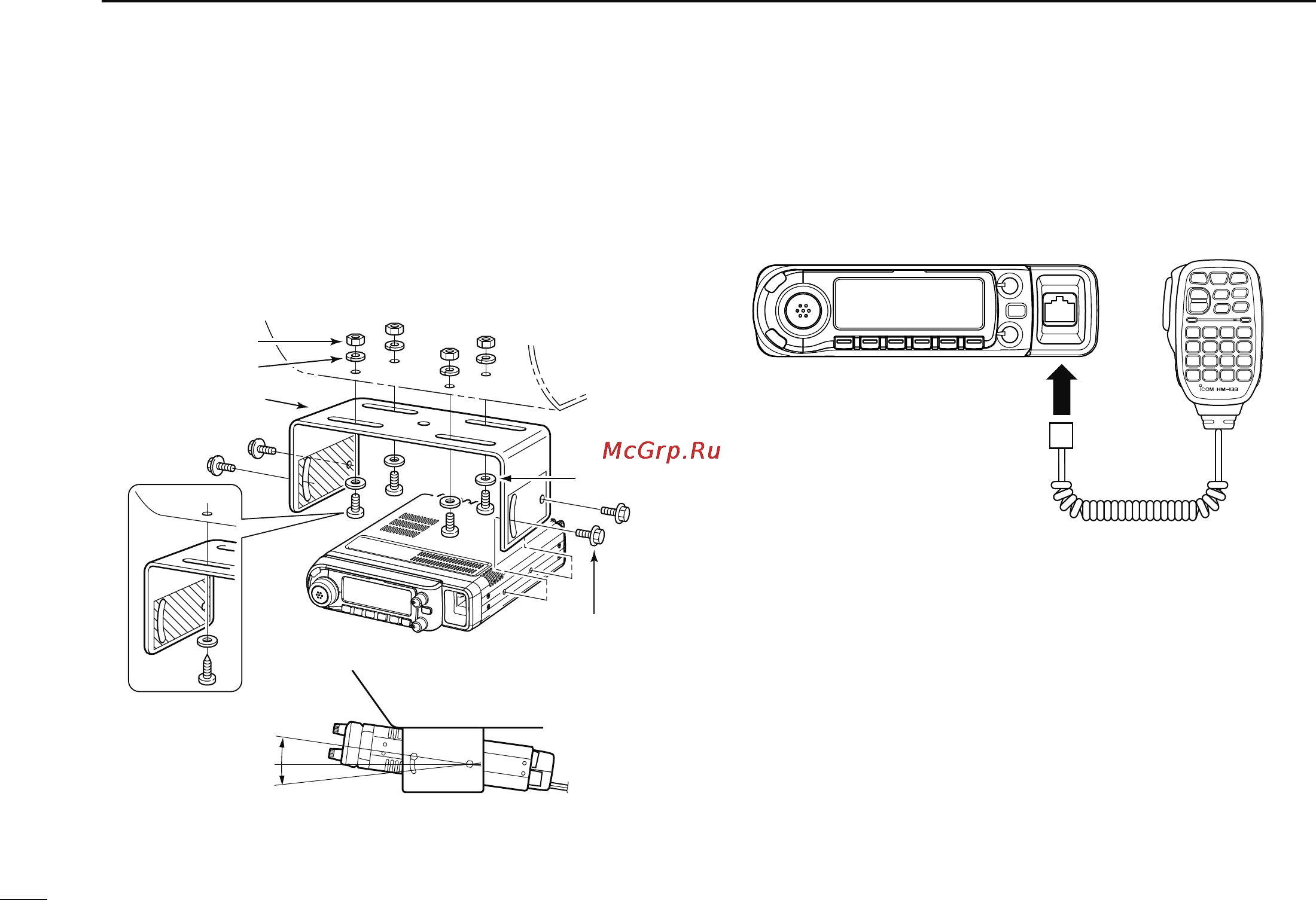

D Using the mounting bracket
q Drill 4 holes where the mounting bracket is to be installed.
• Approx. 5.5–6 mm (
1
⁄4″) when using nuts; approx. 2–3 mm (
1
⁄8″)
when using self-tapping screws.
w Insert the supplied screws, nuts and washers through the
mounting bracket and tighten.
e Adjust the angle for your suitable position.
Nut
Spring washer
When using
self-tapping
screws
Flat washer
Mounting nut
Mounting
bracket
25°
D Microphone connection
A microphone connector is available on the main unit front
panel. Connect the supplied microphone connector as illus-
trated below.
Transceiver
Microphone
III
