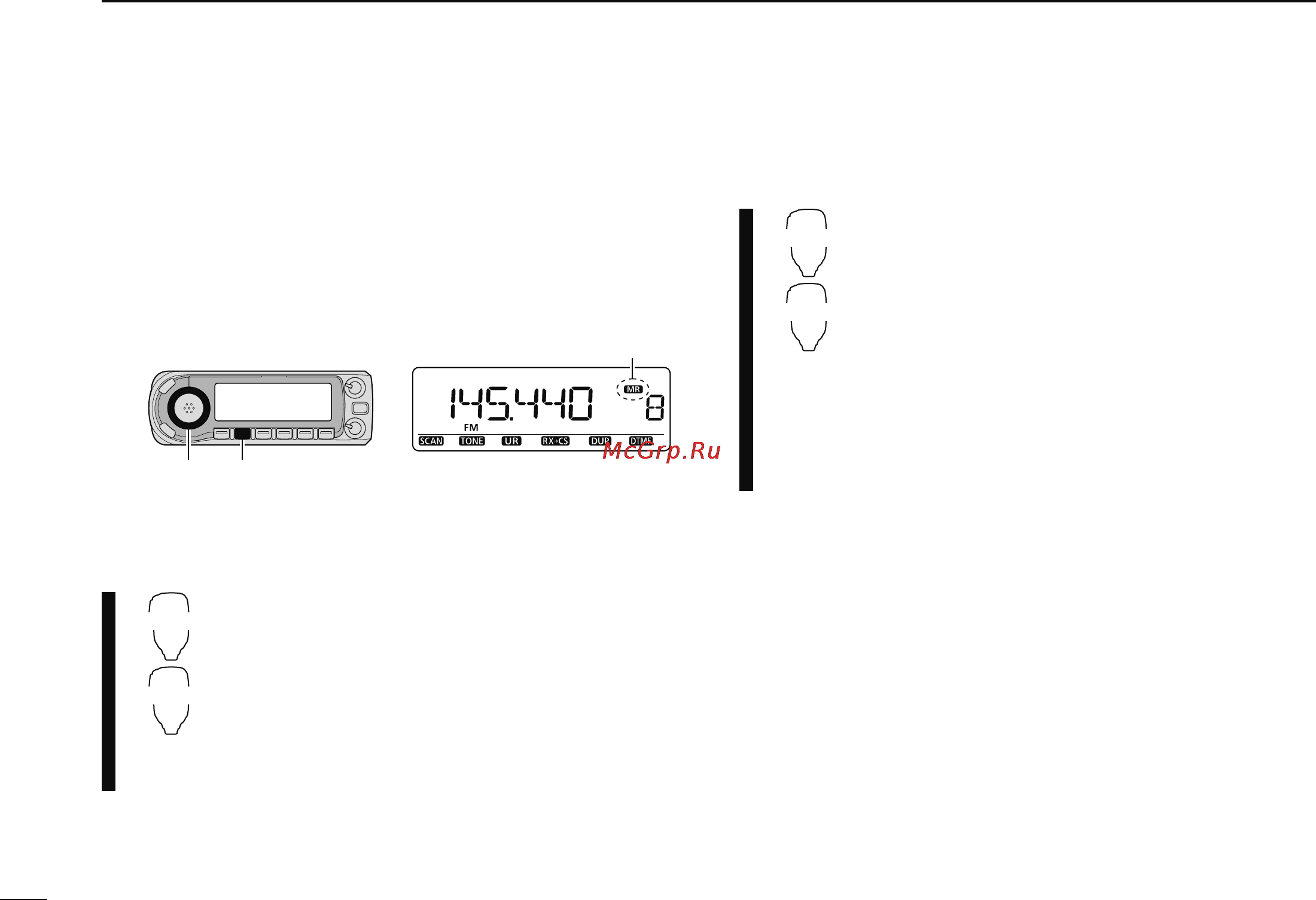

D Using the tuning dial
q Push [M/CALL] several times to select the memory
mode.
• “X” indicator appears.
w Rotate [DIAL] to select the desired memory channel.
• Only programmed memory channels can be selected.
[DIAL]
Appears
[M/CALL]
D Using the [Y]/[Z] keys
z Push [MR/CALL] to select the memory
mode.
x Push [Y] or [Z] to select and set the desired
memory channel.
• Pushing and holding [Y]/[Z] for 1 sec. activates a
scan.
• If scan is activated, push [Y]/[Z] again or push
[CLR A(MW)] to stop it.
D Using the keypad
z Push [MR/CALL] to select the memory
mode.
x Push [
ENT C(T-OFF)] to activate the keypad
for numeral input.
c Push 3 appropriate digit keys to input a chan-
nel number.
• Blank channel can be selected.
• Push only 1 or 2 appropriate digit key(s),
[VOLY 0(TONE-2)] to
[SIMP 9(16-KEY-L)] then push
[VOL
Z M(TONE-1)] or [SQLZ #(16KEY-L)]
to select
scan edge channels. “M” and “#” can be used for
“A” and “B” respectively.
Selecting a memory channel
7
MEMORY/CALL CHANNELS
MR/CALL
2/3
MR/CALL
ENT
C
88
