63
5
DV MODE OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
q Set the desired repeater’s frequency, offset and shift direc-
tion (pgs. 14, 15, 23, 27), then select the DV mode (p. 18).
w Set the current MY call sign to your own call sign.
• See pgs. 42, 43 for current call sign setting detail.
e Set the current station call sign and repeater call signs as
follow;
z Push [CS] to enter the current call sign mode.
• UR call sign is displayed.
• Push [M/CALL] to toggle the call sign and repeater name
indications.
x Push [ ](MONI) to enter the current call sign selection
mode.
c Rotate [DIAL] to select the desired station call sign, then
push [
](MONI) to set the call sign for “UR.”
• Return to the current call sign mode.
v Rotate [DIAL] to select “R1,” access repeater’s call sign,
then push [
](MONI) to enter the current call sign se-
lection mode.
b Rotate [DIAL] to select the desired access repeater’s
call sign, then push [
](MONI) to set the call sign for
“RPT1.”
• Return to the current call sign mode.
n
Rotate [DIAL] to select “R2,” linked repeater’s call sign, then push
[
](MONI) to enter the current call sign selection mode.
• “RPT2” call sign screen is displayed.
m Rotate [DIAL] to select the specified gateway repeater
call sign in the same zone, then push [
](MONI).
• Return to the current call sign mode.
, Push [MENU ] to return to frequency indication.
r Push [PTT] to transmit; release to receive.
• UR call sign is displayed and scrolled in sequence on the fre-
quency display depending on “TX CS” setting (p. 136).

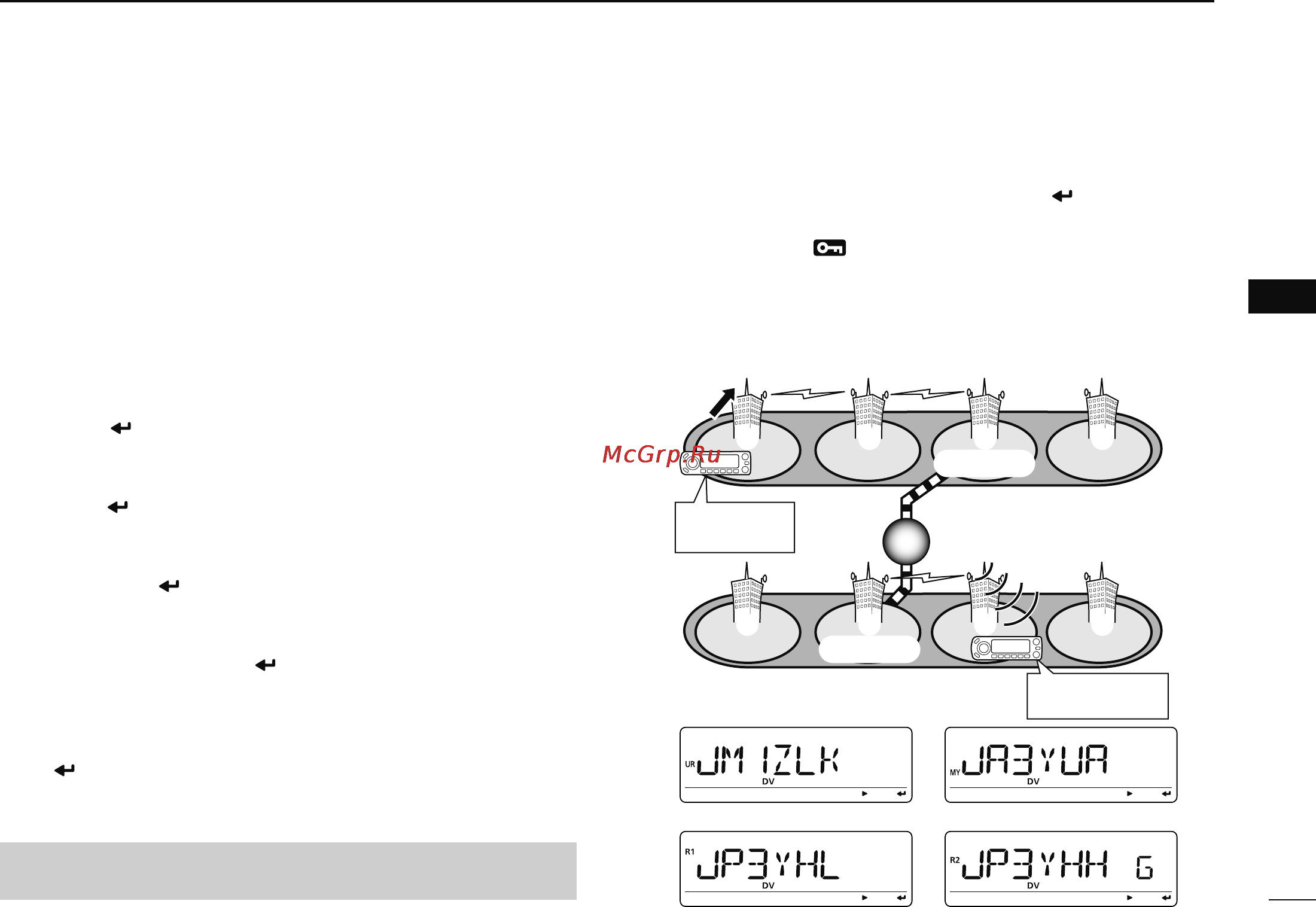

• Current call sign setting example
Repeater q ： JP3YHL
Repeater e ： JP3YHH G
Repeater u ： JP1YIU
Gateway
Gateway
Area
Zone A
Zone B
q w e r
t y u i
UR MY
R1 R2
My call sign：
JA3YUA
Station call sign：
JM1ZLK
Pushing and holding [BAND] for 1 sec. selects the repeater
group when in selection mode.
D Calling a specific station in another zone (Different zone call)
