MENU SCREEN OPERATION

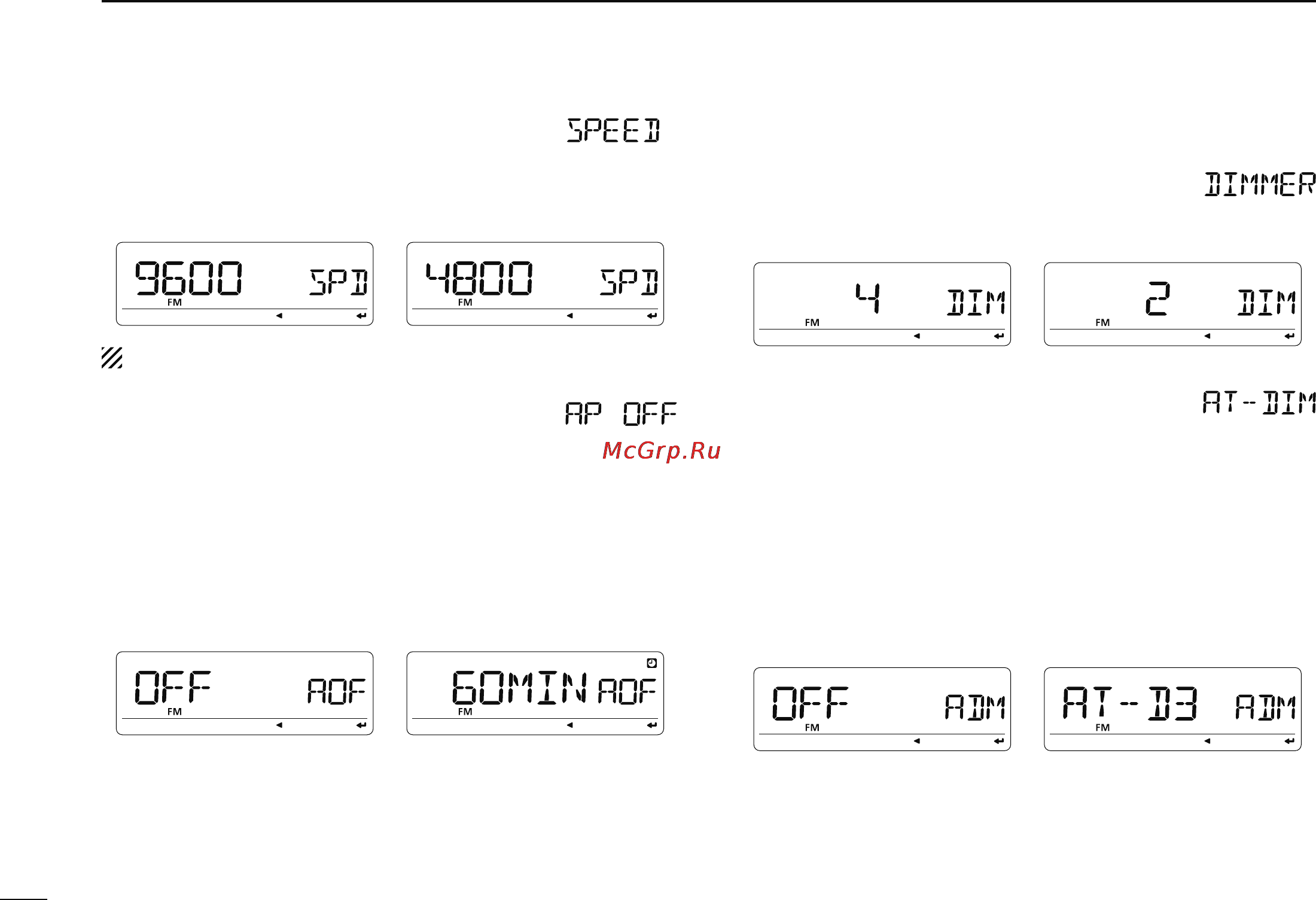

D Data speed
Selects the data speed of [DATA] jack between 4800 bps
and 9600 bps
(default) for low-speed data communication in
the DV mode or GPS receiving.
This setting does not change the cloning speed.
D Auto power OFF
The transceiver can automatically turn itself OFF after a spec-
ified time period. Activating any control restarts the time-out
period. The transceiver beeps before it turns OFF.
30 min., 60 min, 90 min, 120 min and OFF
(default) can be
specified. The specified time period is retained even when
the transceiver is turned OFF by the auto power OFF func-
tion. To cancel the function, select “OFF” in this item.
SET mode — DISP items
D Display dimmer
Sets backlighting brightness.
The levels 1 (dark) to 4 (bright: default) are available.
D Auto dimmer
Sets backlighting brightness when no operation is performed
for approx. 5 sec.
• OFF : The backlight brightness will not be
changed. (default)
• AT–OFF : The backlight will be turned OFF when no
operation is performed for approx. 5 sec.
• AT–D1 to D3 : Brightness level 1 to 3 is selected when
no operation is performed for approx. 5
sec.
