73
6
GPS/GPS-A OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
GPS operation
You can display GPS data when in FM, FM-N, WFM, AM
and DV* modes. You can also transmit GPS data when in DV
mode. To receive GPS data, connect a third-party GPS re-
ceiver that has an RS-232C output and NMEA data format.
Third-party GPS receivers connect to the ID-880H [DATA]
jack.
In addition, the GPS message transmission is also available
in GPS mode operation.
* Set “GPS-TX” to “DVG” or “DVA” at step w of next page if you want
to use a 3rd party GPS receiver in DV mode.

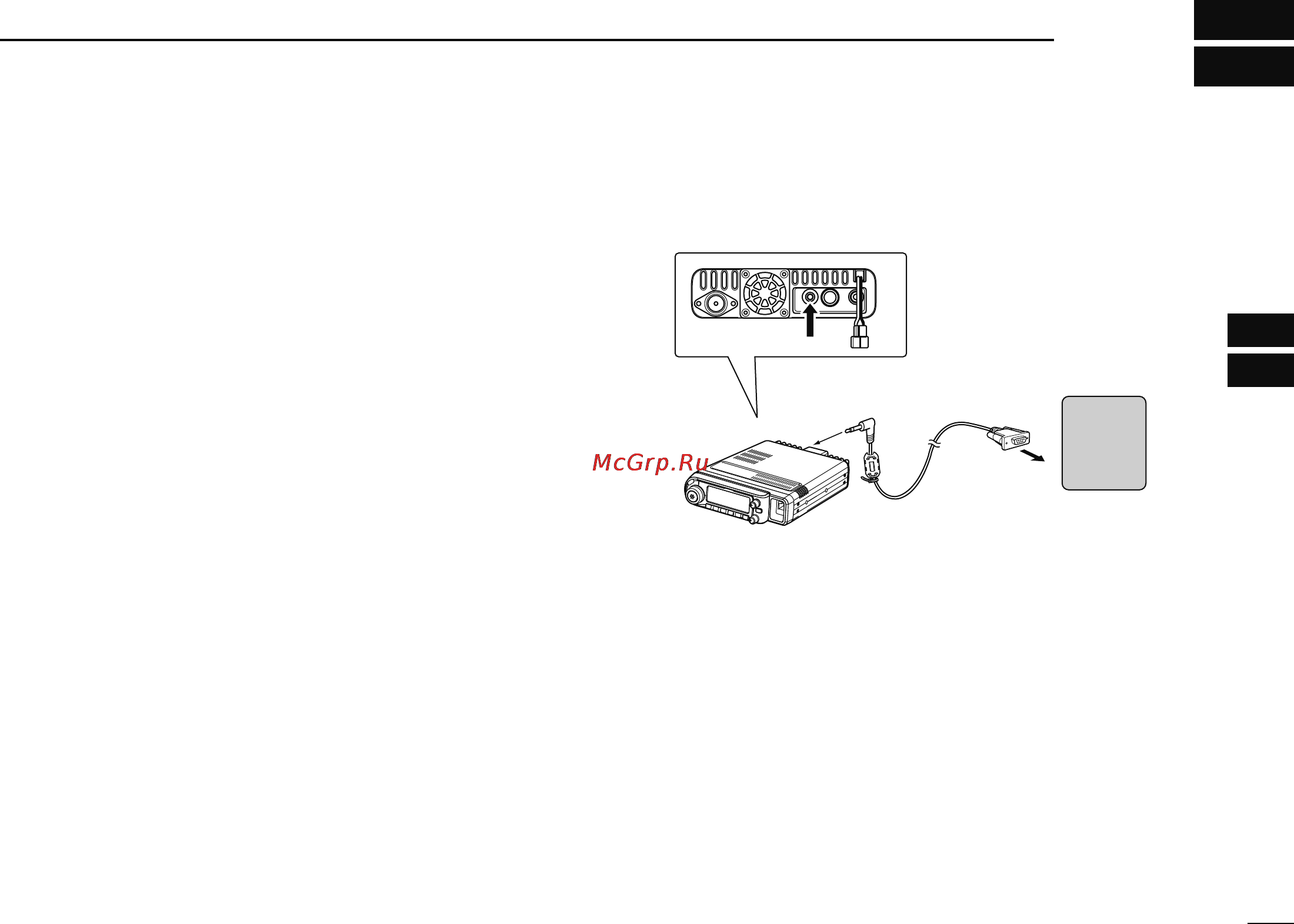

• When connecting the GPS receiver
to [DATA]
OPC-1529R
(optional)
to RS-232C port
(null modem
adapter is required)
GPS
receiver
