80
6
GPS/GPS-A OPERATION
D GPS data addition

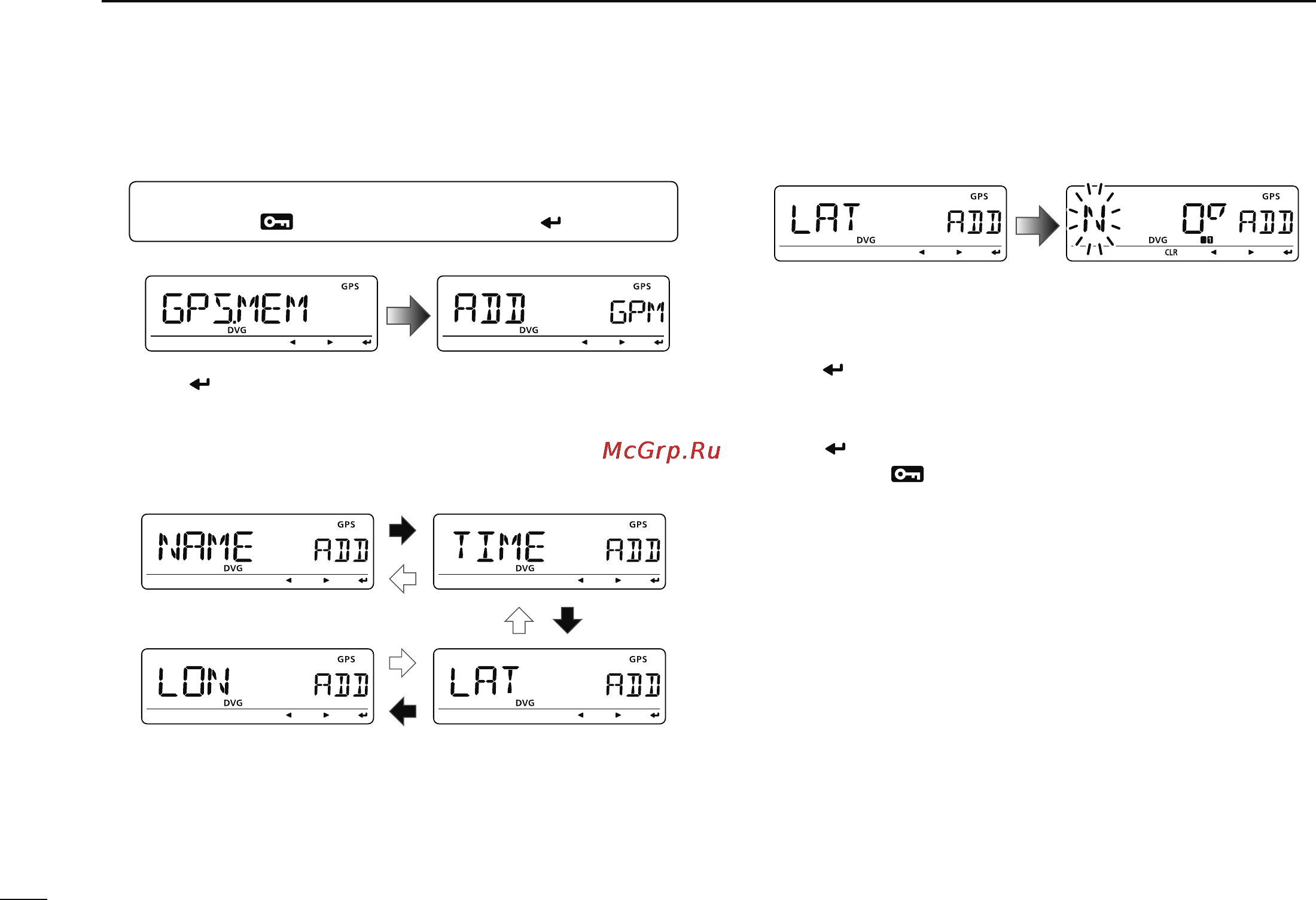

q Enter “GPS.MEM” (GPS memory) in GPS mode.
MENU ¶ GPS ¶ GPS.MEM
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
• GPS memory selection screen is displayed.
w Push [ ](MONI) to enter the new GPS memory channel
programming state.
e Rotate [DIAL] to select the desired items, “NAME,” “TIME,”
“LAT” (LATITUDE) or “LON” (LONGITUDE), then push
[](LOW) to edit the selected item.
r Rotate [DIAL] to select the desired character or number.
• Push [](LOW) to move the cursor right; push [](CS) to move
the cursor left.
t Repeat step r to enter the desired latitude data, then
push [
](MONI) to program the item.
y Repeat steps e to t to program the other items.
• The name may contain up to 6 characters.
u Push [ ](MONI) to store the GPS data.
i Push [MENU
] to return to frequency indication.
