162
13
OTHER FUNCTIONS
D Weather channel selection
q Push [M/CALL] several times to select weather channel
group.
[M/CALL]

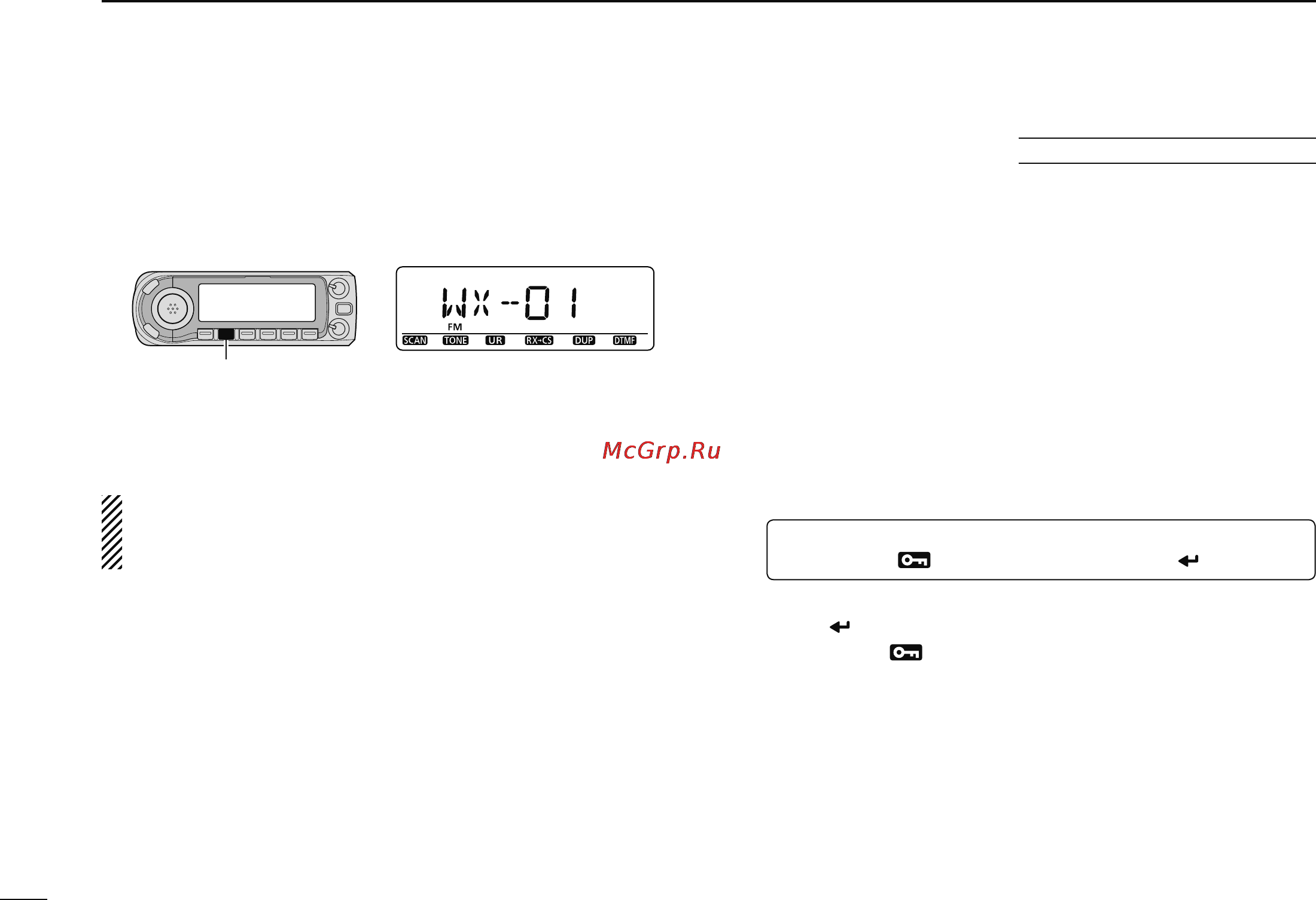

Weather channel group indicaiton
w Rotate [DIAL] to select the desired weather channel.
e Push [M/CALL] to select the memory mode, or push [VFO/
MHz] to select the VFO mode.
Push and hold [SCAN](VFO/MHz) for 1 sec. activates the
weather channel scan. Push [SCAN](VFO/MHz) again to
stop the scan.
D Weather alert function
NOAA broadcast stations transmit weather alert tones be-
fore important weather announcements. When the weather
alert function is turned ON, the selected weather channel is
monitored every 5 sec. so you can hear weather announce-
ments. When the alert signal is detected, the “ALT” and the
WX channel indications are displayed alternately and a beep
sounds until the transceiver is operated. The previously se-
lected (used) weather channel is checked periodically during
standby or while scanning.
q Select the desired weather channel.
w
Enter “WX-ALT” in the SCAN set mode.
MENU ¶ SCAN ¶ WX-ALT
(p. 63)
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
e Rotate [DIAL] to select “ON” or “OFF.”
r Push [
](MONI) to return to the SCAN set mode, and
push [MENU
] to return to the weather channel indica-
tion.
t Sets the desired stand-by condition.
• Selects the VFO, memory or call channel.
• Scan or priority watch operation can also be selected.
Weather channel operation
USA/CHN/EXP versions only
