GPS/GPS-A OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

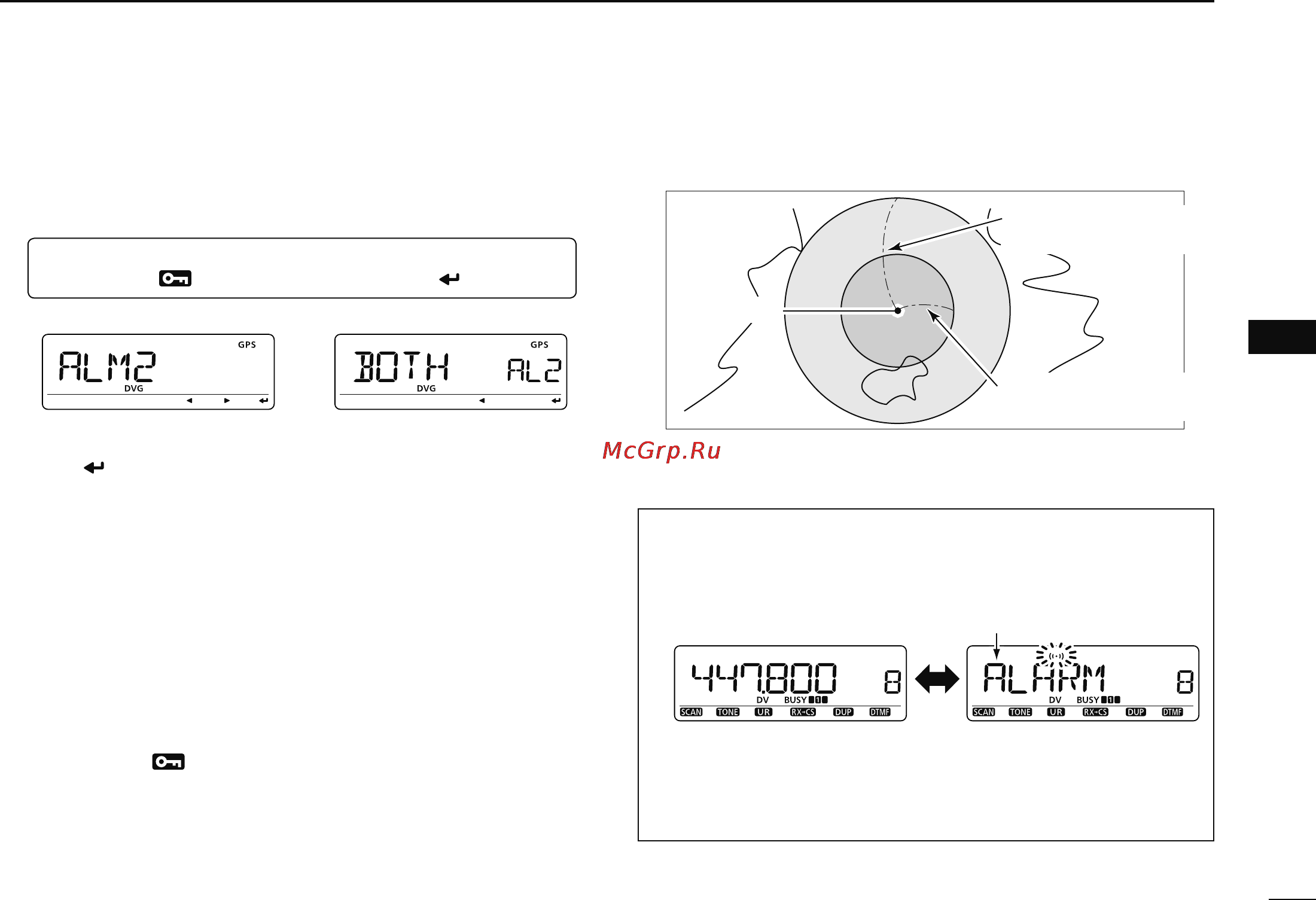

D Alarm area 2
Selects GPS alarm active range from “BOTH,” “EXTEND” and
“LIMIT” when “CH” or “RX” is selected at GPS alarm setting.
q Enter “ALM2” in GPS mode.
MENU ¶ GPS ¶ ALM2
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
• ALM2 setting screen is displayed.
w Rotate [DIAL] to select the desired alarm setting, then
push [
](MONI) to set.
• BOTH : GPS alarm
†
will sound when a target posi-
tion enters both 500 m*
(547 Y)* and 1 km*
(1094 Y)* range. (default)
• EXTEND : GPS alarm
‡
will sound when a target position
enters 1 km*
(1094 Y)* range.
• LIMITE : GPS alarm
‡
will sound when a target position
enters 500 m*
(547 Y)* range.
*Approximate
†
One beep sounds when coming within 1 km (1094 Y) and three
beep sounds when coming within 500 m (547 Y).
‡
Three beep sounds.
e Push [MENU ] to return to frequency indication.
Extended range
(approx. 1 km; 1094 Y)
Limited range
(approx. 500 m; 547 Y)
Your position
• Example:
The target position definitions for Alarm area 2.
Alarm indication
When a target position comes into the alarm area, below
indication appears.
Appears
Shows above indications alternately.
• Push any key to return to frequency indication, but “S” indica-
tor continues to blink in the area.
