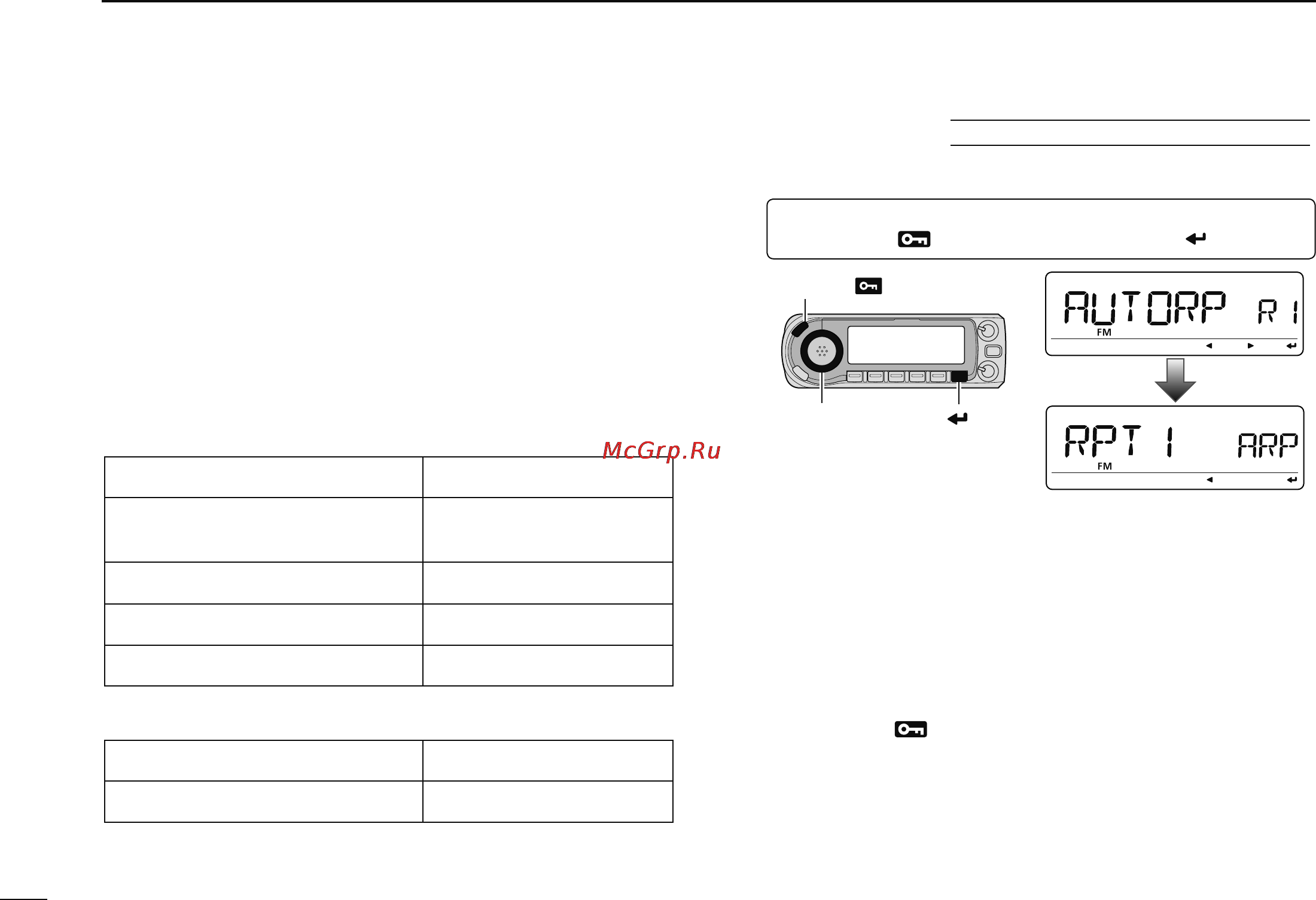

![Icom ID-880H [46/196] Auto repeater](/views2/1074127/page46/bg2e.png)
28
3
REPEATER OPERATION
Auto repeater
USA/CHN/EXP/KOR versions only
The USA, China, Export and Korean versions automatically
use standard repeater settings
(duplex ON/OFF, duplex direc-
tion, tone encoder ON/OFF) when the operating frequency falls
within or outside of the general repeater output frequency
range. The offset and repeater tone frequencies are not
changed by the auto repeater function. Reset these frequen-
cies, if necessary.
D Frequency range and offset direction
• USA/CHN/EXP versions
FREQUENCY RANGE SHIFT DIRECTION
147.000–147.395 MHz “DUP+” appears
442.000–444.995 MHz “DUP+” appears
447.000–449.995 MHz “DUP–” appears
145.200–145.495 MHz
146.610–146.995 MHz
“DUP–” appears
• KOR version
FREQUENCY RANGE
SHIFT DIRECTION
439.000–440.000 MHz “DUP–” appears
q
Enter “AUTORP” in the FUNC set mode (SET).
MENU ¶ SET ¶ FUNC ¶ AUTORP
(p. 128)
(Push [MENU ]), (Rotate [DIAL], then push [ ](MONI).)
[DIAL]
[MENU ]
[ ]
w Rotate [DIAL] to select the auto repeater setting.
[USA/CHN/EXP versions]:
• “RPT1” : Activates duplex only. (default)
• “RPT2” : Activates duplex and tone.
• “OFF” : Auto repeater function is turned OFF.
[KOR version]:
• “ON” : Activates duplex and tone. (default)
• “OFF” : Auto repeater function is turned OFF.
e Push [MENU ] to exit the set mode.
