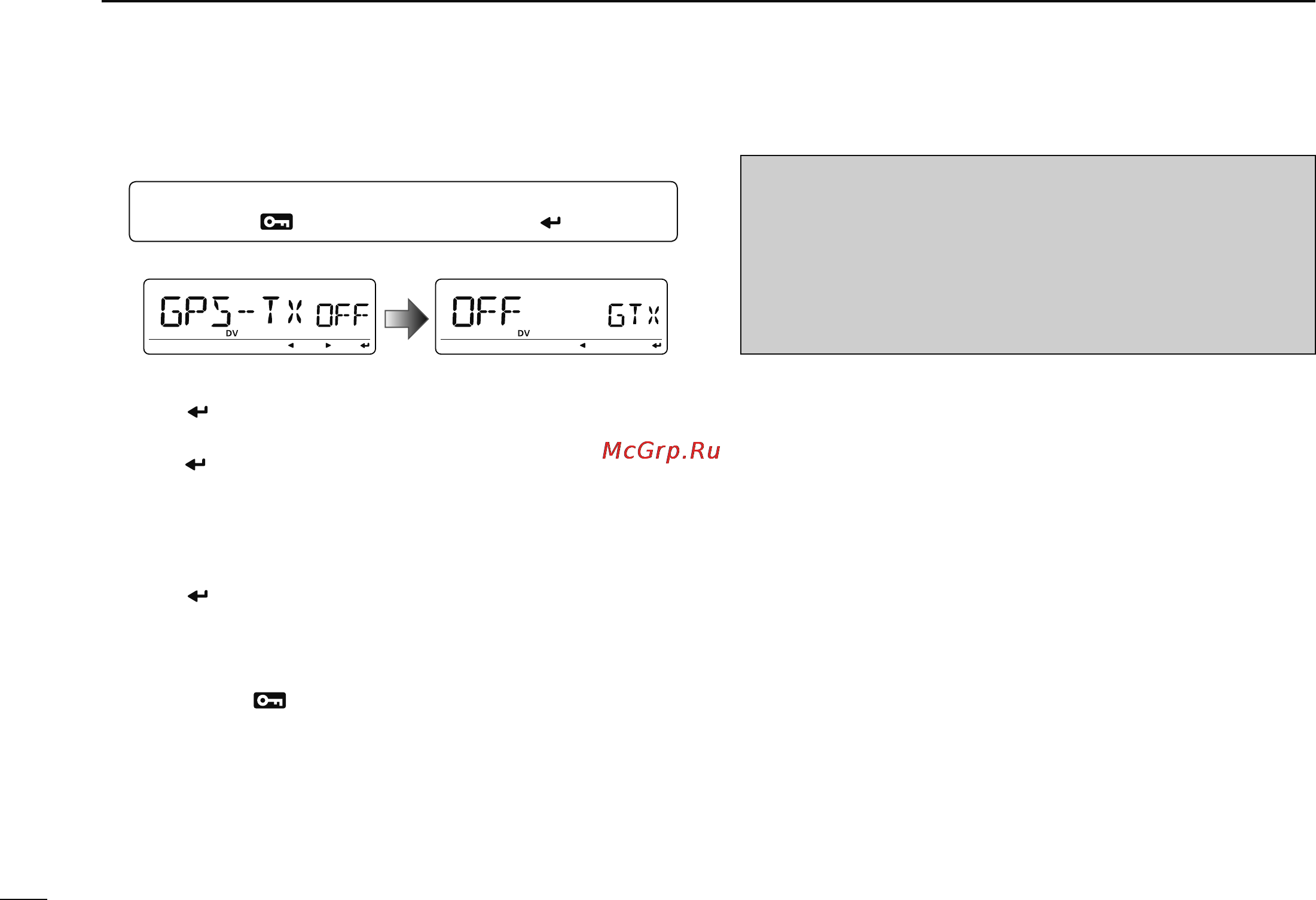

D Sentence formatter setting
q Enter “GPS-TX” in GPS mode.
MENU ¶ GPS ¶ GPS-TX
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
• GPS-TX screen is displayed.
w Rotate [DIAL] to select “DVG.”
e Push [
](MONI) to select GPS sentence screen.
r Rotate [DIAL] to select the desired GPS sentence, then
push [
](MONI).
• A total of 6 sentences, RMC, GGA, GLL, GSA, VTG and GSV
are available.
t Rotate [DIAL] to select to turn the sentence usage ON or
OFF.
y Push [
](MONI) to return to GPS sentence screen.
u Repeat the steps r to y to set another GPS sentence
usage.
• Up to 4 GPS sentences are usable at the same time.
i Push [MENU ] to return to frequency indication.
NOTE:
Set the GSV sentence to OFF when sending the GPS mes
-
sage to conventional digital transceivers (IC-2820H, ID-
800H, IC-91AD, IC-V82, IC-U82, IC-2200H).
The GSV sentence is incompatible with them. Those trans
-
ceivers will not display GPS messages properly if sent as a
GSV sentence from the ID-880H.
74
6
GPS/GPS-A OPERATION
