129
10
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

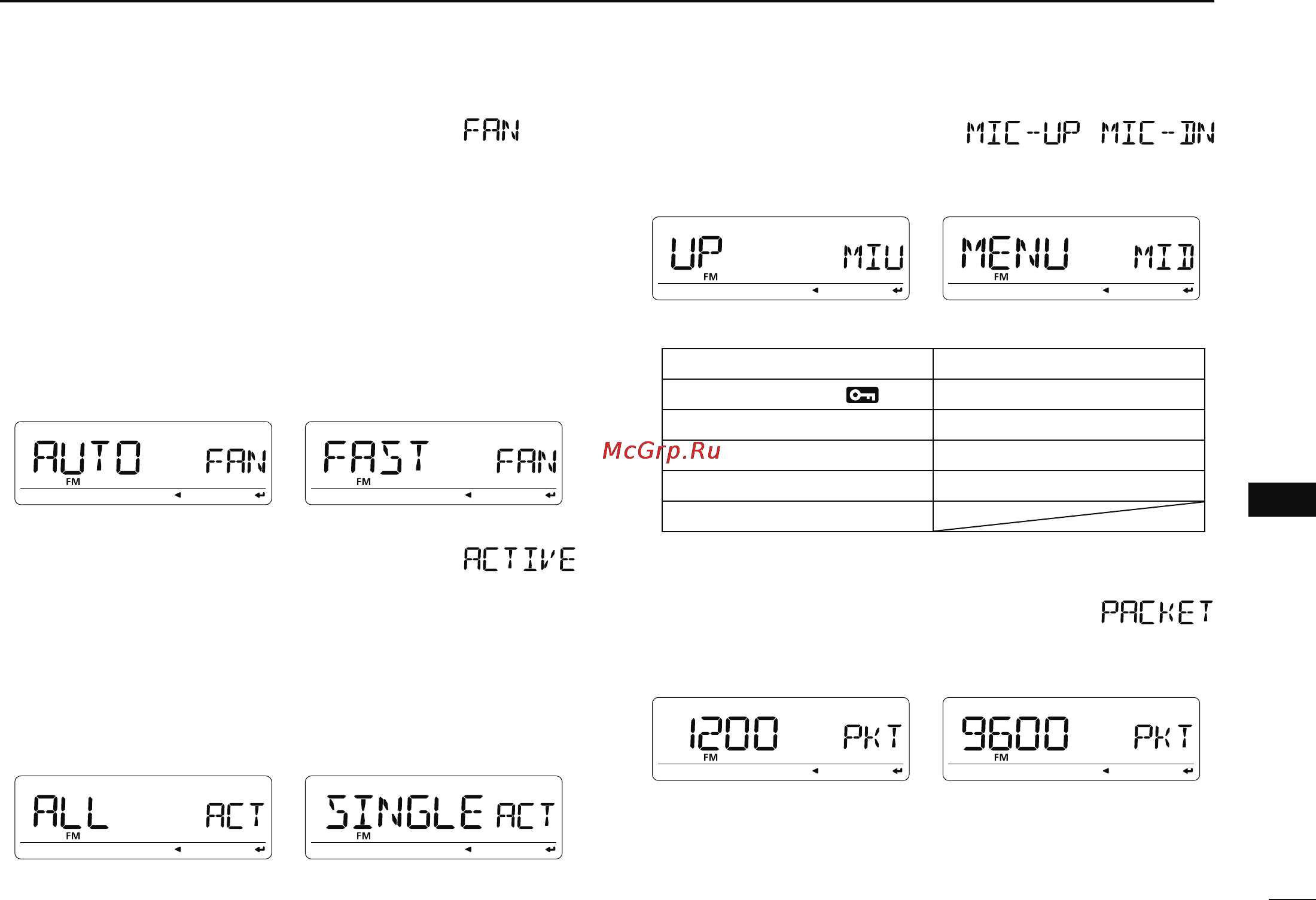

D Fan control
Selects the cooling fan control condition from AUTO, FAST,
MID and SLOW.
• SLOW : The fan continuously rotates at low speed.
• MID : The fan continuously rotates at medium
speed.
• FAST : The fan continuously rotates at fast speed.
• AUTO : The fan rotates during transmit and for 30 sec.
after transmission, or when the internal tem-
perature of the transceiver exceeds the preset
value until the temperature drops. (default)
D Active band
Allows continuous frequency selection of the operating fre-
quency across all bands.
• SINGLE : A single operating frequency can be selected
within the current band. Push [BAND] for band
selection in this case.
• ALL : The operating frequency can be selected con-
tinuously.
(default)
D Mic UP/DN /
Sets the assigning function to the [UP]/[DN] keys on the op-
tional M-103/HM-154.
Assignable functions:
UP* (default) DOWN
†
(default)
MENU (as
[MENU ]) V/MHZ (as [VFO/MHz])
BAND (as [BAND MODE]) SMW (as [S.MW MW])
M/CALL (as [M/CALL]) DR (as [DR])
CS (as [CS]) LOW (as [LOW])
MONI (as [MONI])
*Available for “MIC-UP” only;
†
Available for “MIC-DN” only
D Packet speed
Selects the data transmission speed for packet operation
from 1200 bps (default) and 9600 bps.
