19
2
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

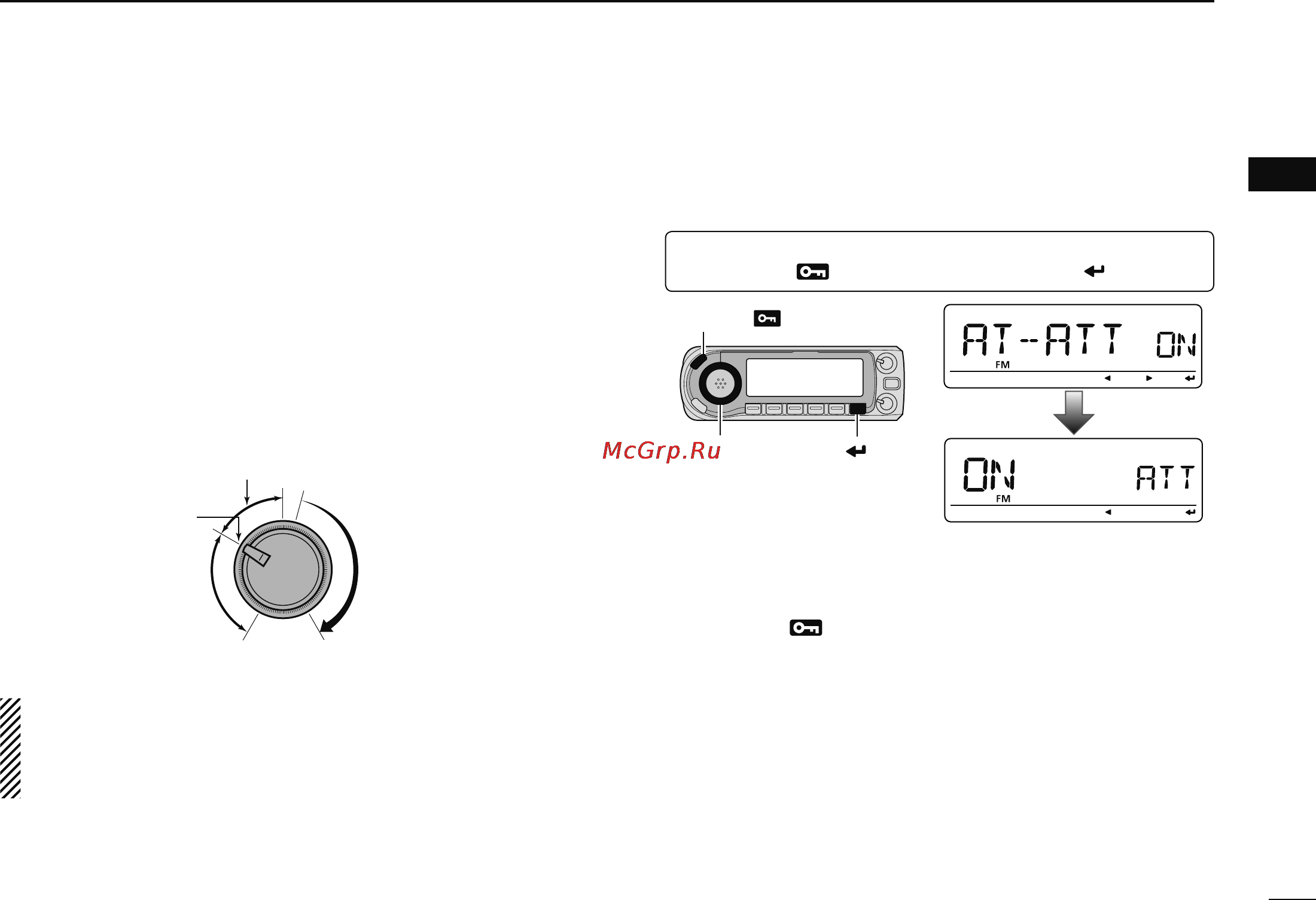

Squelch attenuator
The transceiver has an RF attenuator related to the squelch
level setting. Approx. 10 dB attenuation is obtained at maxi-
mum setting.
The squelch attenuator allows you to set the minimum signal
level needed to open the squelch. The attenuator function can
be deactivated in the FUNC set mode (SET).
± Rotate [SQL] clockwise past the 13 o’clock position to ac-
tivate the squelch attenuator.
• Attenuation level can be adjusted up to 10 dB (approx.) between
13 o’clock and fully clockwise position.
Squelch is
open.
Squelch
attenuator
Squelch
threshold
Shallow Deep
Noise squelch
NOTE: The squelch attenuator functions even when the
monitor function is in use. We recommend setting the
[SQL] control between the 10 and 13 o'clock positions
when using the monitor function.
D Squelch attenuator setting
q
Enter “AT-ATT” in the FUNC set mode (SET).
MENU ¶ SET ¶ FUNC ¶ AT-ATT
(p. 127)
(Push [MENU ]), (Rotate [DIAL], then push [ ](MONI).)
[DIAL]
[MENU ]
[ ]
w Rotate [DIAL] to turn the squelch attenuator function ON
or OFF.
• Select “OFF” to deactivate the squelch attenuator function.
e Push [MENU ] to exit the set mode.
