132
10
MENU SCREEN OPERATION

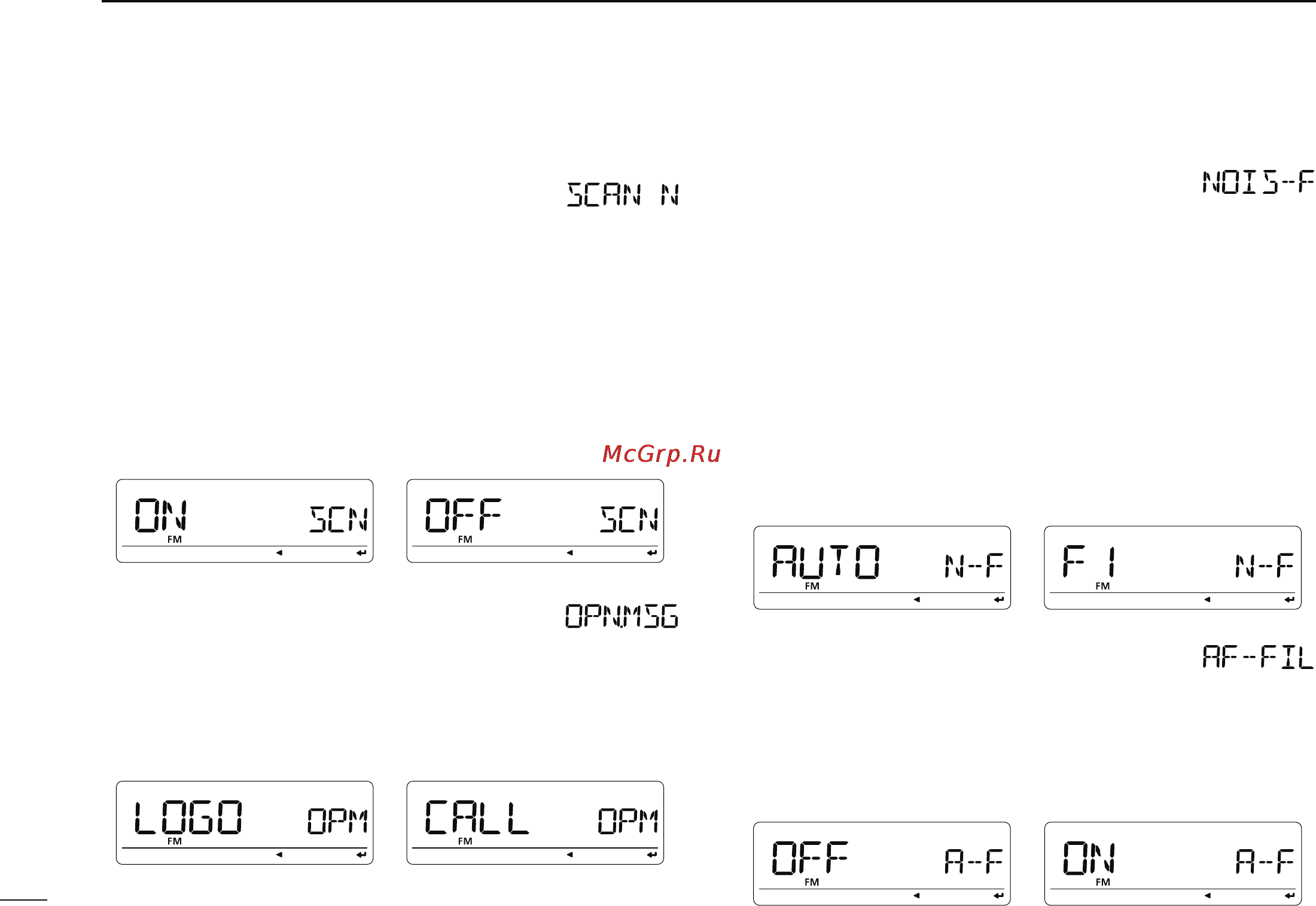

D Scan name
The programmed scan, programmed link scan or bank name
is displayed during the scan type selection.
• OFF : The programmed scan number, programmed
link scan number or bank initial is displayed dur-
ing selection.
• ON : The programmed scan, programmed link scan
or bank name is displayed. However, the pro-
grammed scan number, programmed link scan
number or the default bank initial is displayed if
no name is programmed.
(default)
D Opening message
The opening message indication that is displayed at power
ON is selectable from “ICOM” logo, my call sign or skipped.
• OFF : Opening message indication is skipped.
• LOGO : “ICOM” is displayed at power ON.
(default)
• CALL : The set my call sign is displayed at power ON.
Set mode — SOUNDS items
D Noise filter
- Appears only when the FM/N or AM/N mode is selected.
The noise filter selects audio signal filter width to reduce high-
pitch noise in analog mode (FM/N, AM/N) operation— clear
voice audio reception is provided. Selects the noise filter from
AUTO, F1–F3.
• AUTO : Selects the suitable audio filter width according
to the received signal strength. When a weak
signal is received, selects a narrow audio filter
width to reduce noise audio. (default)
• F1 : The widest audio filter width.
• F2 : Middle audio filter width.
• F3 : The narrowest audio filter width.
D Audio filter
- Appears only when AM/N mode is selected.
The AF filter suppresses high-pitch tone during AM mode op-
eration.
• OFF : The AF filter is deactivate. (default)
• ON : The AF filter is activate.
