133
10
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

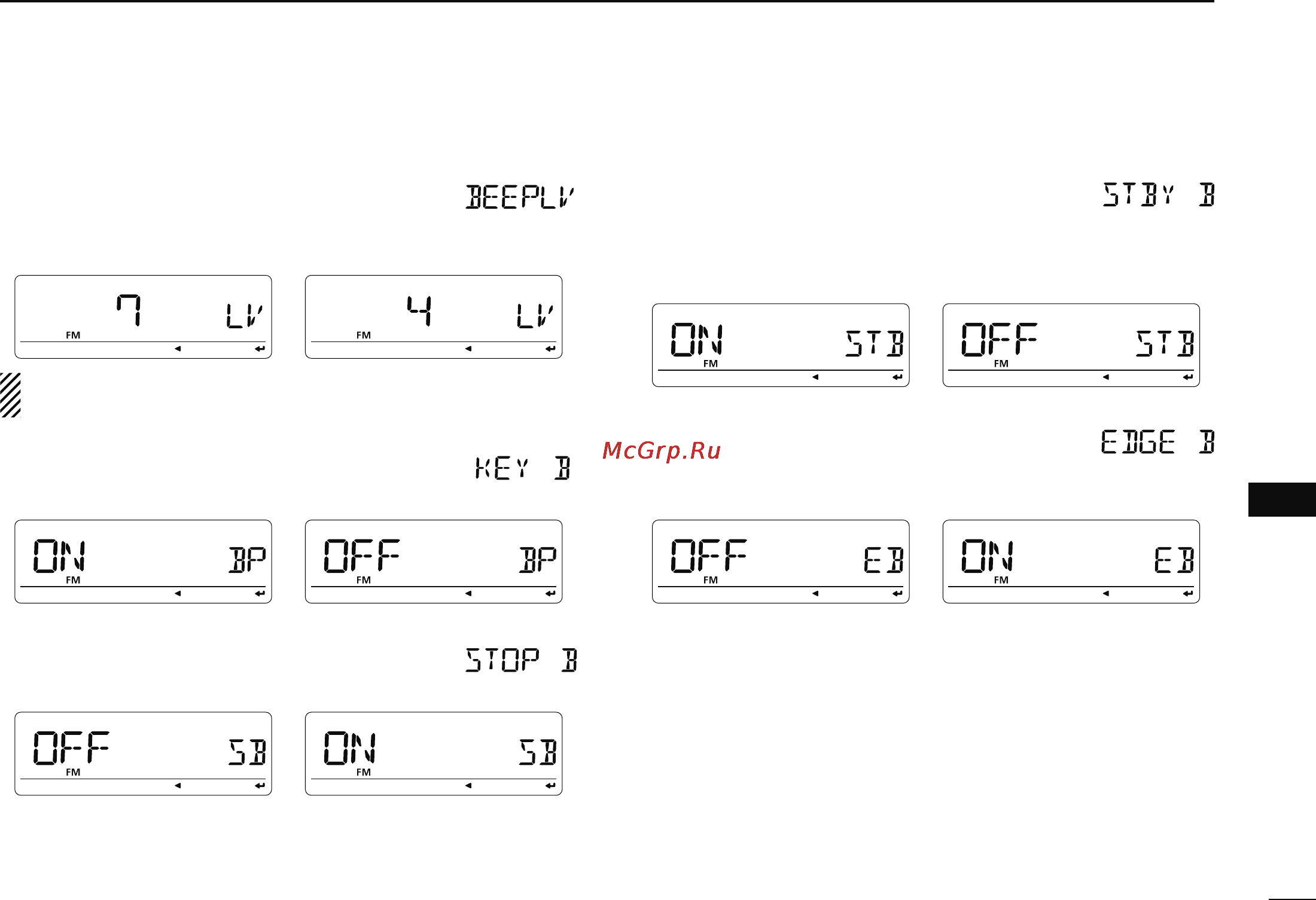

D Beep output level
Adjusts the key-touch beep tone level to the desired level
within 9 levels.
(default: 7)
The key-touch beep (following item) must be set to ON to
have a beep tone.
D Key-touch beep
Turns the key-touch beep ON or OFF. (default: ON)
D Scan stop beep
Turns the scan stop beep function ON or OFF. (default: OFF)
D Standby beep
Turns the beep emission capability ON or OFF when the
communicating station finishes transmitting or the receive
signal disappears during DV mode operation.
(default: ON)
D Band edge beep
Turns the beep emission capability ON or OFF when the fre-
quency is changed over the band edge.
(default: OFF)
