44
5
DV MODE OPERATION
Received call sign
When a call is received in the DV mode, the calling station
and the repeater call signs being used can be stored into the
received call record. The stored call signs are viewable in the
following manner. Up to 20 calls can be recorded.
D Desired call record indication
q Enter RX call sign set mode.
MENU ¶ RX CAL
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
• RX call sign screen is displayed.
w Rotate [DIAL] to select the desired record channel.

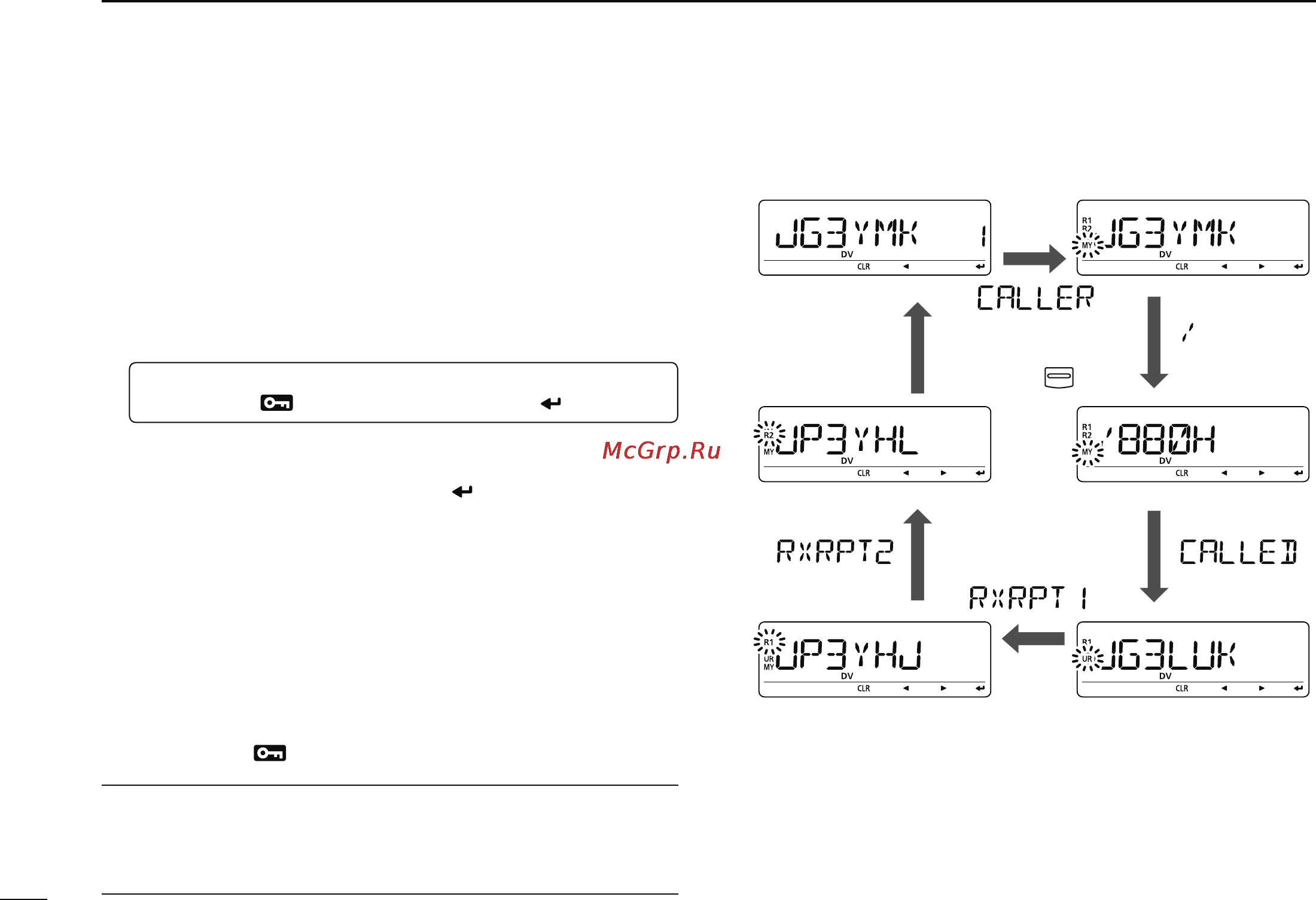

e To confirm the received call, push [ ](MONI) several times
to select the desired call sign from CALLER, / (CALLER’s
note), CALLED, RXRPT1 and RXRPT2.
CALLER : The station call sign that made the call.
/ : 4 character note with call sign that made the call.
CALLED : The station call sign called by the caller.
RXRPT1 :
The repeater call sign used by the caller station in the
same zone, or gateway repeater call sign of the down link
repeater when the caller station is in a different zone.
RXRPT2 : The repeater call sign for down link repeater.
r Push [MENU ] to return to frequency indication.
For your information
When receiving a call, the received station call sign is auto-
matically displayed and scrolled in sequence on the frequency
display. This can be turned OFF in the DV SET mode. (p.136)
Push
Call record channel
MONI
