46
5
DV MODE OPERATION

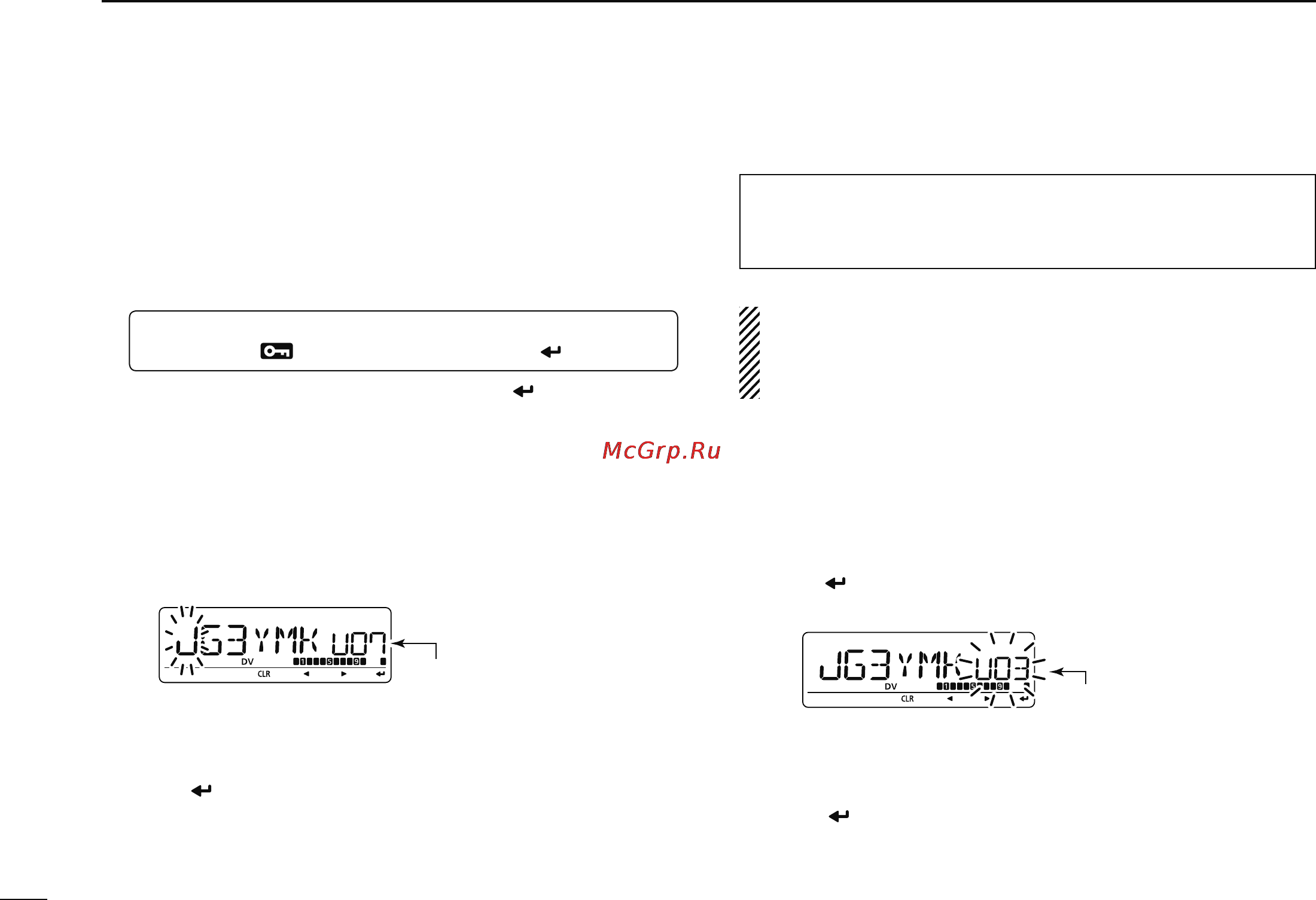

Copying the call sign
D Copying the call sign memory contents
This function is convenient when modifying a part of the cur-
rent call sign.
q Enter the call sign menu.
MENU ¶ CALL-S
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
w Rotate [DIAL] to select “UR,” then push [ ](MONI).
e Rotate [DIAL] to select the desired call sign channel to be
copied.
• U01–U60 are available.
• When “AUTO” is set to “EDIT R” item
r Push [](LOW) to select the call sign programming mode.
• The 1st digit of the selected call sign blinks.
Blank channel is selected
automatically.
t Modify the selected call sign as described in “Station call
sign programming”
(p. 32).
y Push [
](MONI) to store the modified call sign into the
selected blank channel.
NOTE:
Make sure that the “EDIT R (EDIT RECORD)” item in the
DV SET mode is set to “AUTO” or “SEL” in advance.
(p. 135)
NOTE: If no blank channel is available in the station call
sign memory, select the desired call sign channel number
as described in step u of “• When “SEL” is set to “EDIT R”
item” below.
• When “SEL” is set to “EDIT R” item
r Push [](LOW) to select the call sign programming mode.
• The 1st digit of the selected call sign blinks.
t Modify the selected call sign as described in “Station call
sign programming” (p. 32).
y Push [ ](MONI).
• Call sign channel number blinks.
Call sign channel number
blinks.
u Rotate [DIAL] to select the desired call sign channel to
store.
i Push [ ](MONI) to store the modified call sign into the
selected channel.
