Icom ID-880H [25/196] Microphone hm 133
![Icom ID-880H [25/196] Microphone hm 133](/views2/1074127/page25/bg19.png)
7
1
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

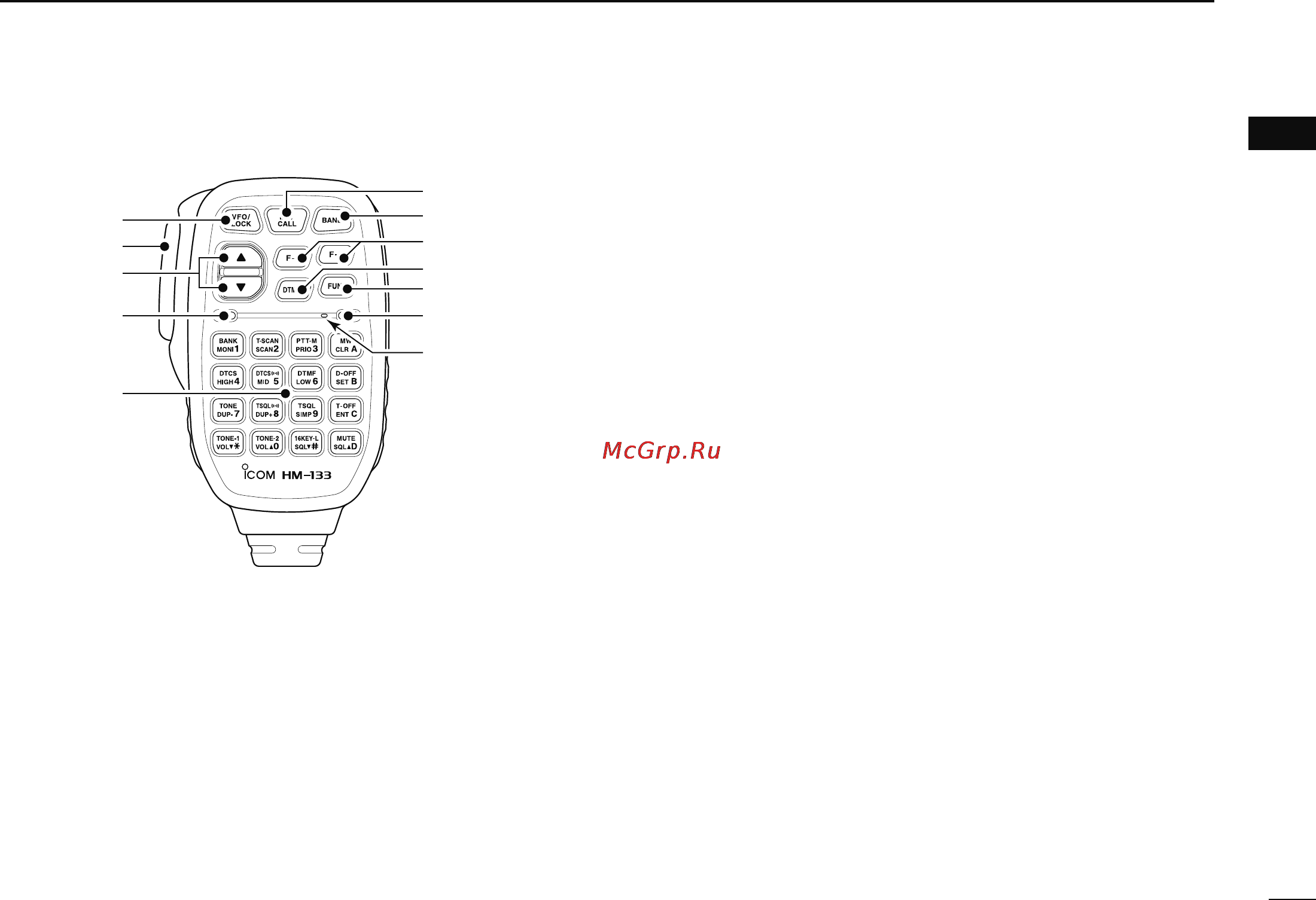

Microphone (HM-133)
Mic element
q
e
r
t
w
y
u
i
o
!0
!1
q VFO/LOCK KEY [VFO/LOCK]
± Push to select the VFO mode.
(p. 12)
± Push and hold for 1 sec. to turn the lock function ON or
OFF.
(p. 16)
w PTT SWITCH
± Push and hold to transmit; release to receive.
± Switches between transmitting and receiving while the
one-touch PTT function is in use.
(p. 21)
e UP/DOWN KEYS [Y]/[Z]
± Push either key to change operating frequency, memory
channel, set mode setting, etc.
(pgs. 12, 14, 88, 117)
± Push and hold either key for 1 sec. to start scanning.
(p. 107)
r ACTIVITY INDICATOR
± Lights red while any key, except [FUNC] and [DTMF-S],
is pushed, or while transmitting.
± Lights green while the one-touch PTT function is in use.
(p. 21)
t KEYPAD (pgs. 8, 9)
y FUNCTION INDICATOR
± Lights orange while [FUNC] is activated—indicates the
secondary function of keys can be accessed.
± Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
u 2nd FUNCTION KEY [FUNC]
i DTMF SELECT KEY [DTMF-S]
(p. 144)
o FUNCTION KEYS [F-1]/[F-2] (p. 153)
Program and recall your desired transceiver configuration.
!0 BAND KEY [BAND]
(p. 11)
Push to select the operating bands.
!1 MEMORY/CALL KEY [MR/CALL]
± Push to select the memory mode.
(p. 88)
± Push and hold for 1 sec. to select call channel. (p. 89)
