D Program scan link function
Sets the program scan link function. The link function pro-
vides continuous program scan in the selected program
scan number during program scan.
Default setting for P-LINK
P0 to P-LINK P9: PROG 0 to
PROG 24 are linked.
• Confirming program scan link

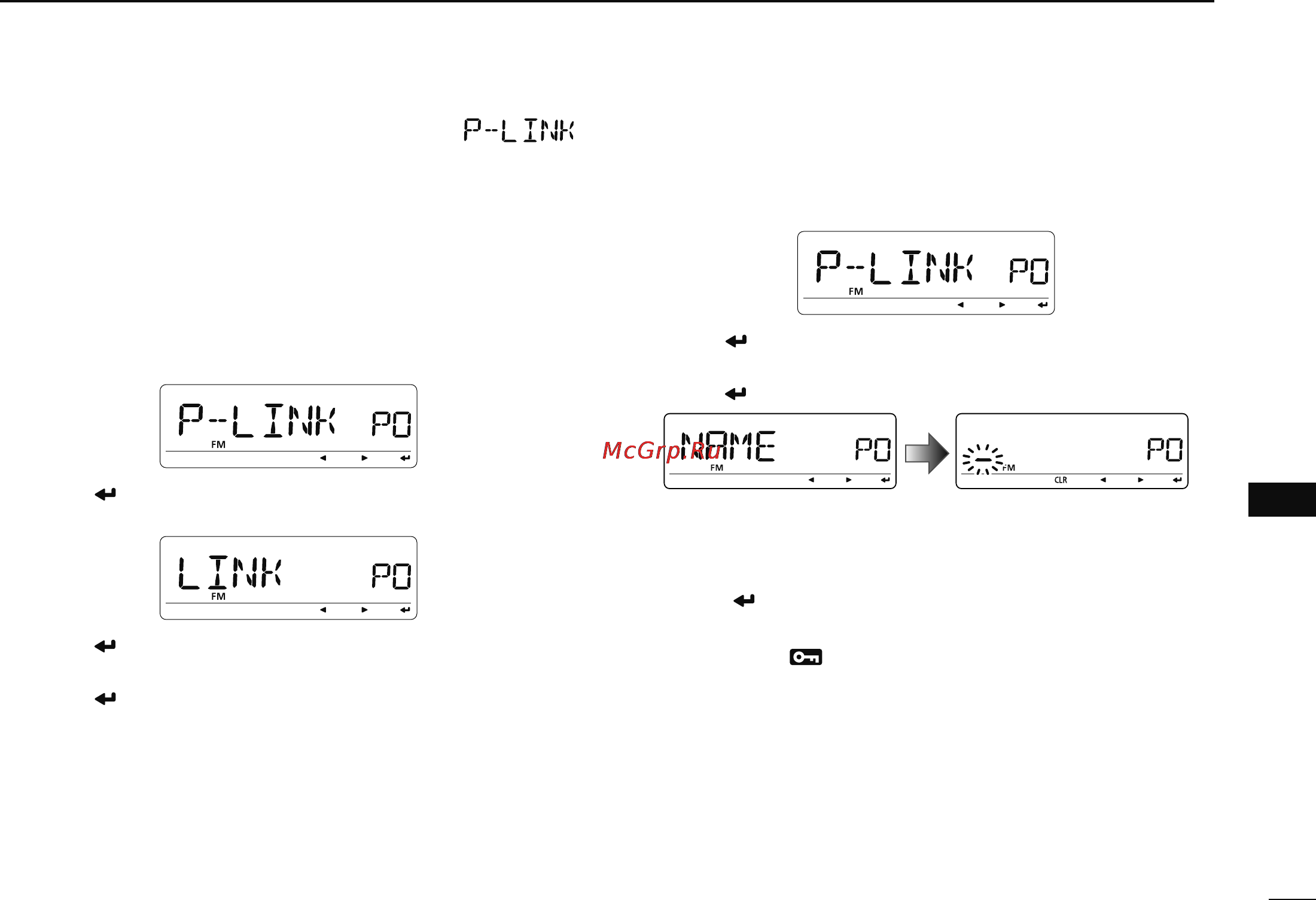

q Rotate [DIAL] to select the program scan link number that
you want to confirm.
w Push [ ](MONI) to enter program scan link setting.
e Rotate [DIAL] to select “LINK.”
r Push [ ](MONI), then rotate [DIAL] to confirm the linked
program scan.
t Push [
](MONI) to exit.
• Program scan link name programming
q Rotate [DIAL] to select the program scan link number for
which you want to program a name.
w Push [ ](MONI) to enter program scan link setting.
e Rotate [DIAL] to select “NAME.”
r
Push
[ ](MONI)
to enter the name programming state.
t Rotate [DIAL] to select the desired character, number,
symbol or space; push [](LOW) or [](CS) to move the
cursor right or left, respectively.
y Push [
](MONI)
to
program the repeater name and exit
the state
.
u Push [MENU ] to exit the MENU screen operation.
