97
7
MEMORY/CALL CHANNELS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D Memory/call¶call/memory
q Select the memory (call) channel to be copied.
± Push [M/CALL] several times to select the memory
mode or call channel mode, then rotate [DIAL] to select
the desired channel.
w Push [S.MW] to enter the select memory write mode.
• “X” indicator and the memory channel number blink.
• Do not hold [S.MW](MW) for more than 1 sec., otherwise the
memory contents will be copied to the VFO.
e Rotate [DIAL] to select the target memory (call) channel.
• Scan edge channels, 0A/0B to 24A/24B can also be selected.
r Push and hold [MW](S.MW) for 1 sec. to write the selected
channel contents to the target channel.
• The targeted memory and copied contents are indicated.
Rotate [DIAL] to
select a target channel.
Select a memory channel,
then push [S.MW].

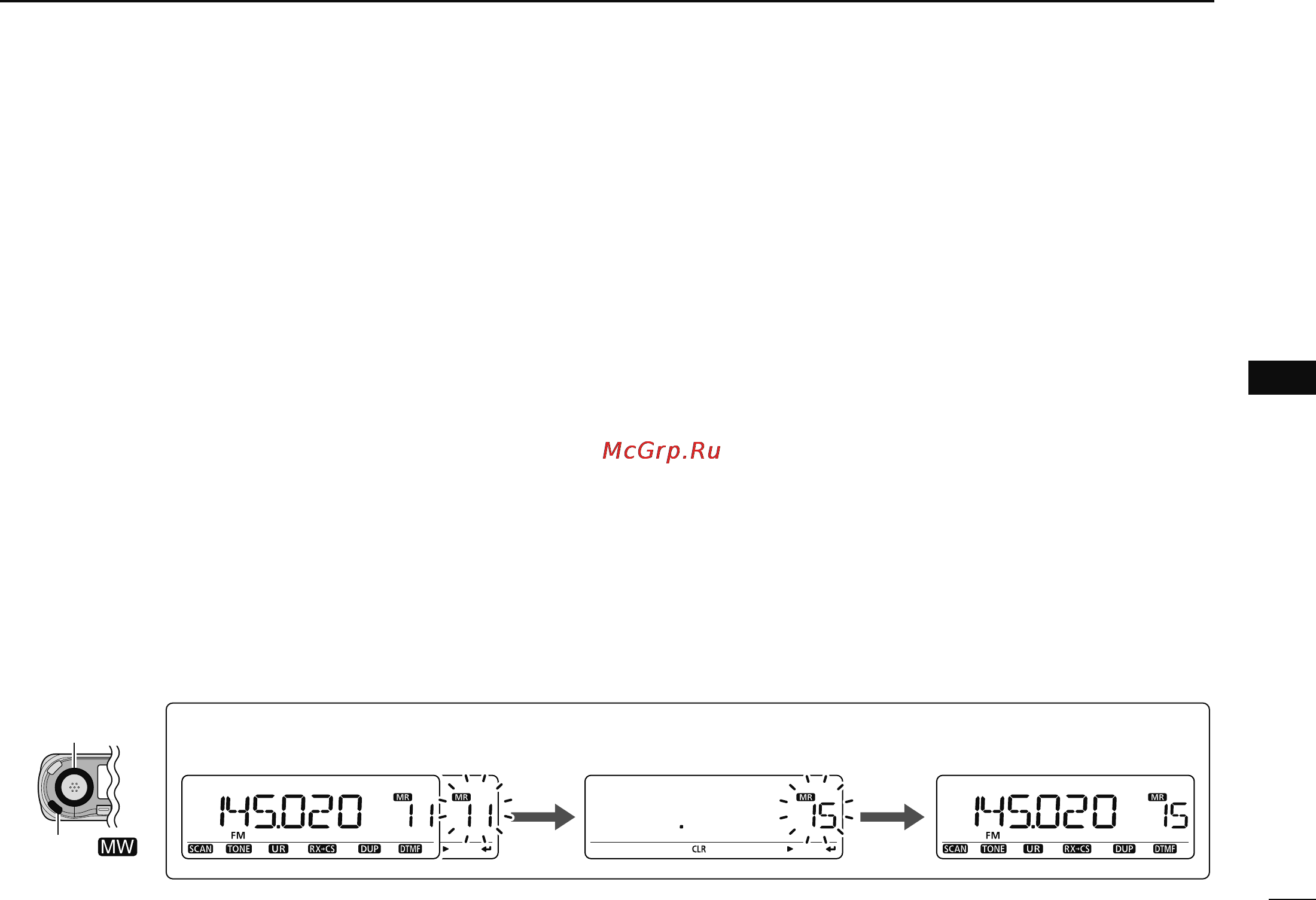

[EXAMPLE]: Copying memory channel 11 contents to channel 15.
Push and hold [MW] for 1 sec.
[DIAL]
[S.MW ]
