PANEL DESCRIPTION
q MENU•LOCK KEY [MENU ]
± Push to enter the MENU screen indication ON or OFF.
(p. 116)
± Push and hold for 1 sec. to toggle the lock function ON
or OFF.
(p. 16)
w SELECT MEMORY WRITE•MEMORY WRITE KEY
[S.MW•MW]
(pgs. 90, 92, 94, 96–99, 103)
± Push to enter the select memory write mode for mem-
ory channel programming.
• Push [MENU ] to cancel and exit the select memory write
mode.
± Push and hold to store the frequency, operating mode,
etc. into the selected memory channel.
e TUNING DIAL [DIAL]
Selects the operating frequency
(p. 14), memory channel
(pgs. 12, 88), the setting of the set mode item (p. 116) and
the scanning direction
(pgs. 102, 105, 106).
r BAND•MODE KEY [BAND•MODE]
± Push to enter the band selection state.
(p. 11)
• Rotating [DIAL] selects the band.
± Push and hold for 1 sec. to enter operating mode selec-
tion state.
(p. 18)
• Rotating [DIAL] selects the operating mode.
t VFO/MHz TUNING•SCAN KEY [VFO/MHz•SCAN]
± Push to select the VFO mode.
(p. 12)
± During VFO mode operation, push to select 1 MHz and
10 MHz tuning steps.
(p. 14)
± Push and hold for 1 sec. to enter the scan type selec-
tion state.
(pgs. 102, 105, 106, 150)
• Cancels a scan when pushed during scan.
y MEMORY/CALL•TONE KEY [M/CALL•TONE]
± Push to select memory, call and weather channel*
modes.
(pgs. 12, 13, 88, 89, 162)
*Weather channels are available depending on versions.

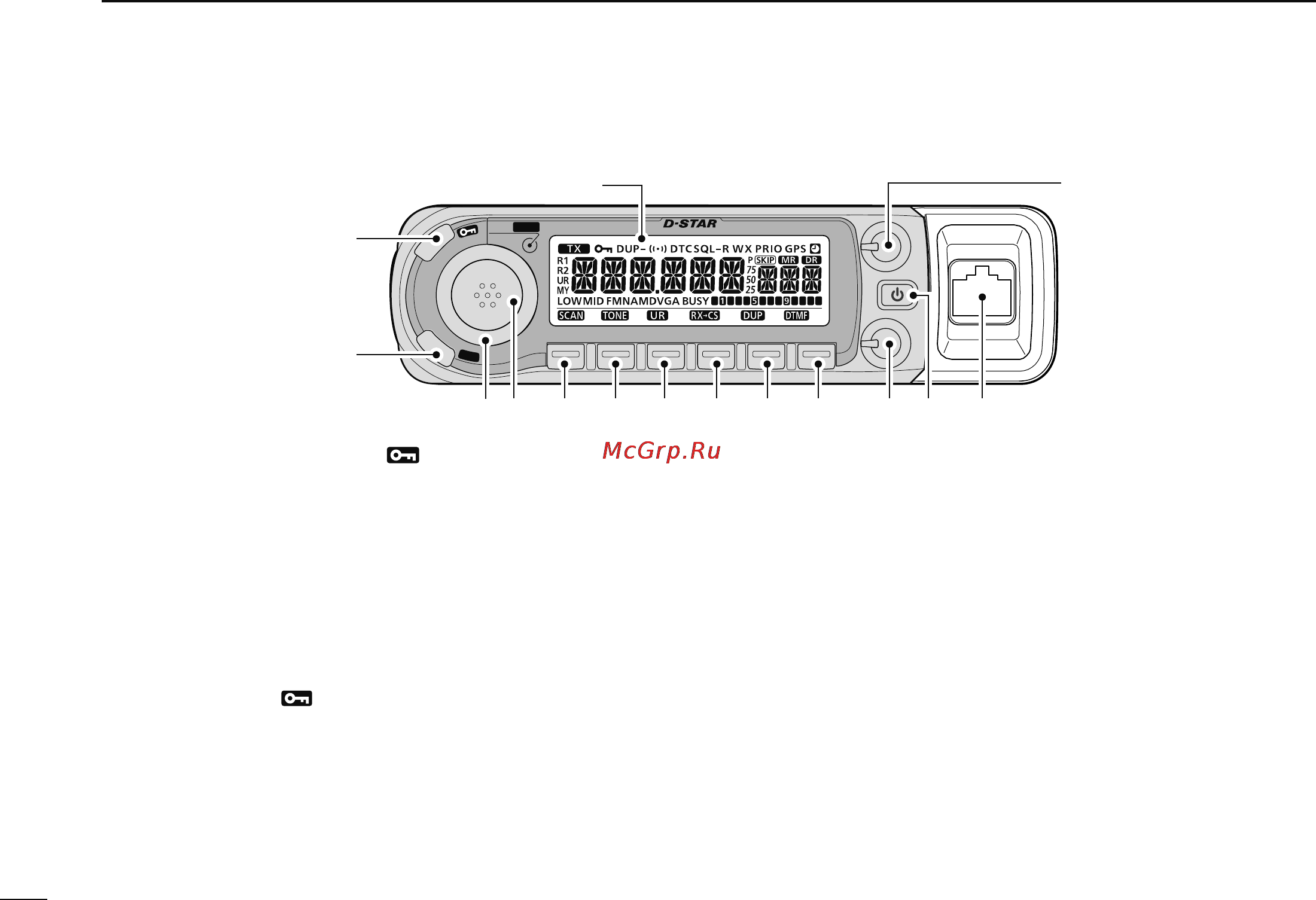

Front panel
