157
13
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Auto power OFF
The transceiver can be set to automatically turn OFF after a
specified period with a beep when no switch is pushed.
120 min., 90 min., 60 min., 30 min. and OFF can be specified.
The specified period is retained even when the transceiver
is turned OFF by the auto power-off function. To cancel the
function, select “OFF” in the auto power-off item in set mode.
This can be selected with “AP OFF” in the FUNC set mode
(SET).
MENU ¶ SET ¶ FUNC ¶ AP OFF
(p. 130)
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
Time-out timer
To prevent accidental prolonged transmission, etc., the
transceiver has a time-out timer. This timer cuts a trans-
mission OFF after 1, 3, 5, 10, 15 or 30 min. of continu-
ous transmission. This timer can be cancelled (default).
Approx. 10 sec. before the time-out timer is activated, the
transceiver emits a beep tone as a warning.
This can be selected with “TOT” in the FUNC set mode
(SET).
MENU ¶ SET ¶ FUNC ¶ TOT
(p. 128)
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)

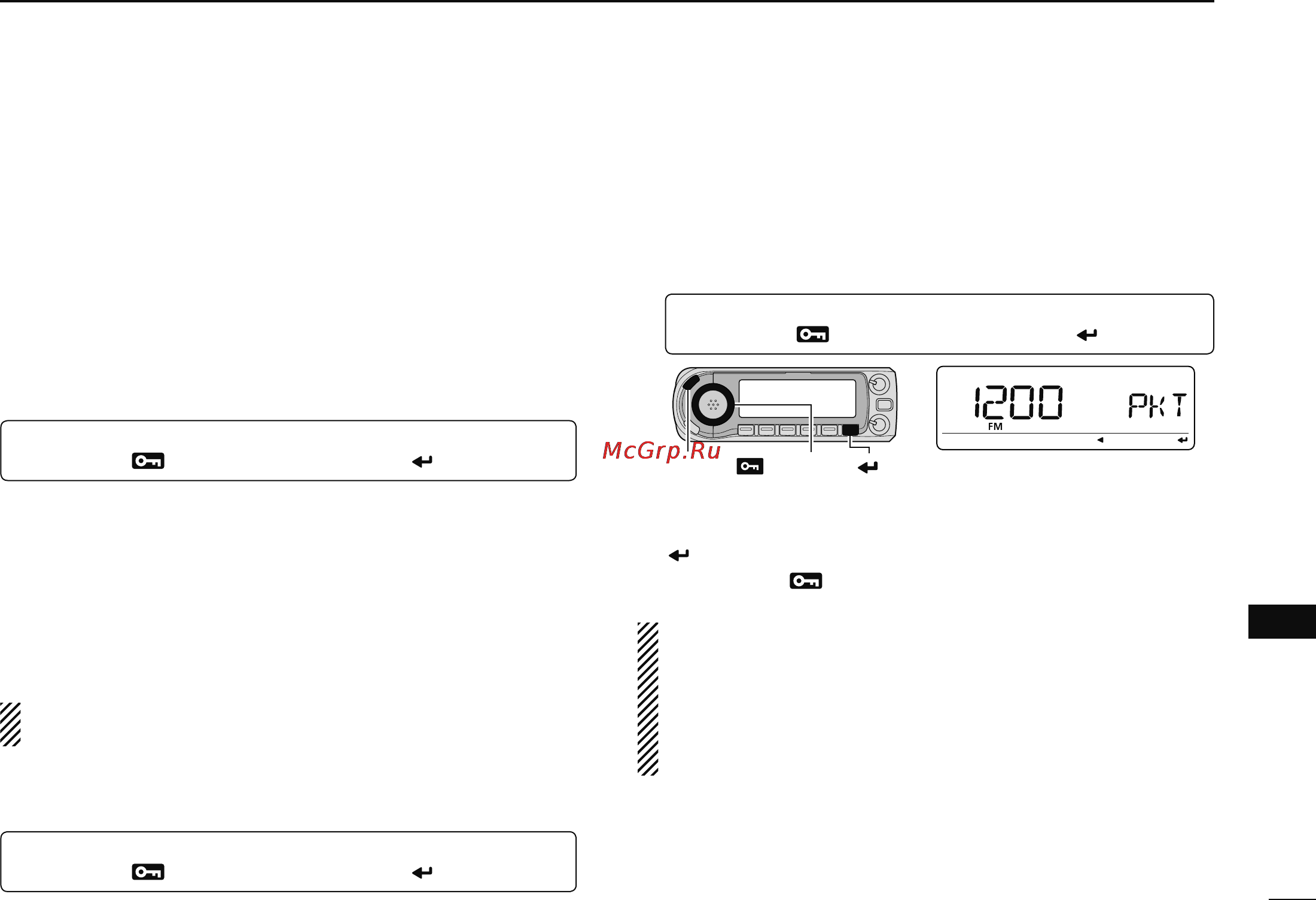

Packet operation
D Data speed
For packet operation, the transceiver can be set to one of
two data speeds: 1200 bps
(default) or 9600 bps.
q
Enter “PACKET” in the FUNC set mode (SET).
MENU ¶ SET ¶ FUNC ¶ PACKET
(p. 129)
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
[DIAL]
[MENU ]
[ ]
w Rotate [DIAL] to select the
desired data transmission
speed from 1200 bps
(default) and 9600 bps, then push
[
](MONI).
e Push [MENU
] to exit the FUNC set mode.
• The microphone signal is automatically cut. Therefore, it
is not necessary to disconnect the microphone plug from
the connector in this case.
• When pushing [PTT] during data transmission, data
transmission is interrupted and voice signals have
priority.
