PANEL DESCRIPTION

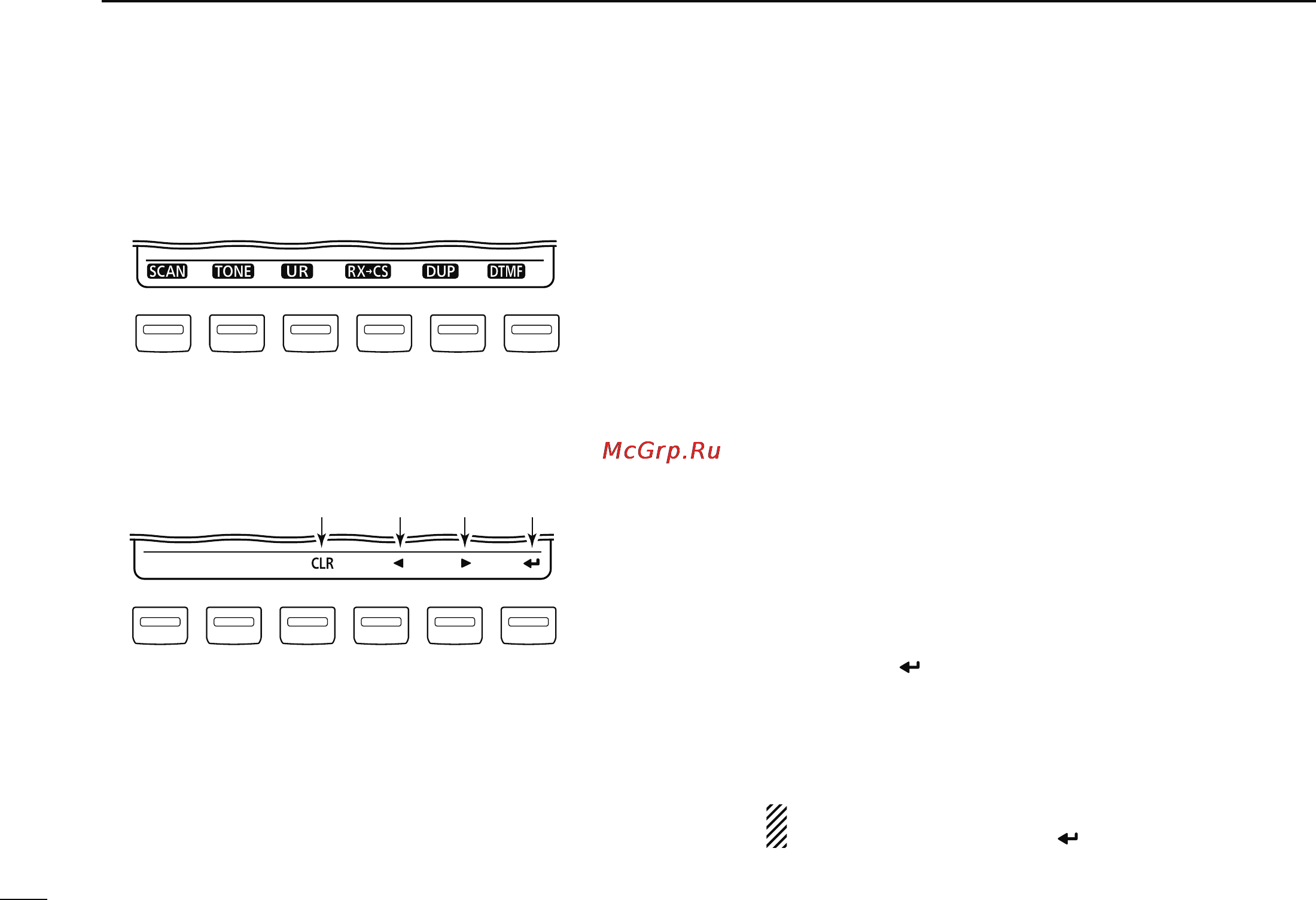

D Function guide indicator
The function guides give you easy menu access to a variety
of functions. Two function guides are available.
• Secondary function guides
VFO/MHz
M/CALL CSDR LOW
MONI
These function guides indicate the secondary functions for
below the keys. Push and hold for 1 sec to activate the indi-
cated functions. See page 2 to 3 (t to !0).
• Set condition guides
VFO/MHz
M/CALL CSDR LOW
MONI
qwer
Set condition guides appear when the transceiver enters the
MENU screen, select memory write state, etc.
q CLEAR KEY [CLR](DR)
± During programming state for call signs, repeater list,
memory name, etc., push to erase the selected charac-
ter.
(pgs. 31, 33, 39, 40, 94)
± During programming state for call signs, repeater list,
memory name, etc., push and hold for 1 sec. to erase
all character following the cursor.
(pgs. 31, 33, 37–40, 94)
w LEFT KEY [](CS)
± During programming state for call signs, repeater list,
memory name, etc., push to move the cursor left.
(pgs. 31–33, 35–40, 94)
± During MENU screen operation, push to select the
upper layer.
(p. 116)
e RIGHT KEY [](LOW)
± During programming state for call signs, repeater list,
memory name, etc., push to move the cursor right.
(pgs. 31–33, 35–40, 94)
± During MENU screen operation, push to select the
lower layer.
(p. 116)
r ENTER KEY [ ](MONI)
±
During programming state for call signs, repeater list, etc.,
push to set or store the setting.
(pgs. 31, 33, 35–40, 94)
± During MENU screen operation, push to enter or exit
to/from the selected set items, etc.
(p. 116)
NOTE: During set condition guide indication, [BAND]
key is also used instead of [
](MONI).
