D Battery connection
± R WARNING NEVER remove the fuse holders from the
DC power cable.
±NEVER connect the transceiver directly to a 24 V battery.
± DO NOT use the cigarette lighter socket for power connec-
tions.
(See p. 1 for details)
Use a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.

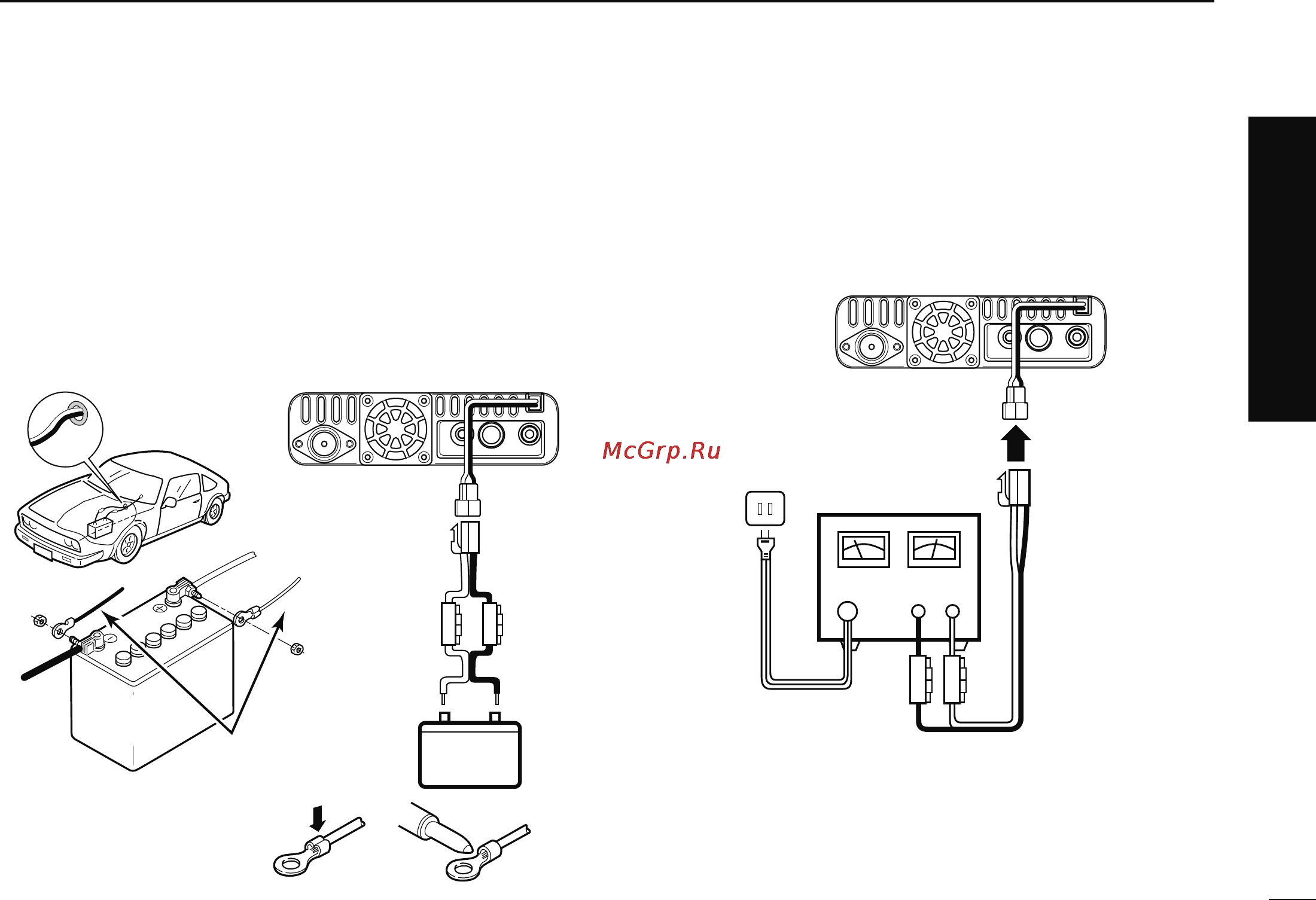

• CONNECTING TO A DC POWER SOURCE
ID-880H
Fuses
20 A
black
red+
_
12 V
Grommet
NOTE:
Use terminals for the
cable connections.
R
WARNING
!
NEVER
remove the
fuse holders.
Crimp
Solder
12 V
battery
Supplied
DC power cable
+ red
_ black
D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
DC power
supply 13.8 V
to an
AC
outlet
Fuses
20 A
ID-880H
+ red
_ black
+_
See p. 165 for fuse replacement.
