DV MODE PROGRAMMING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

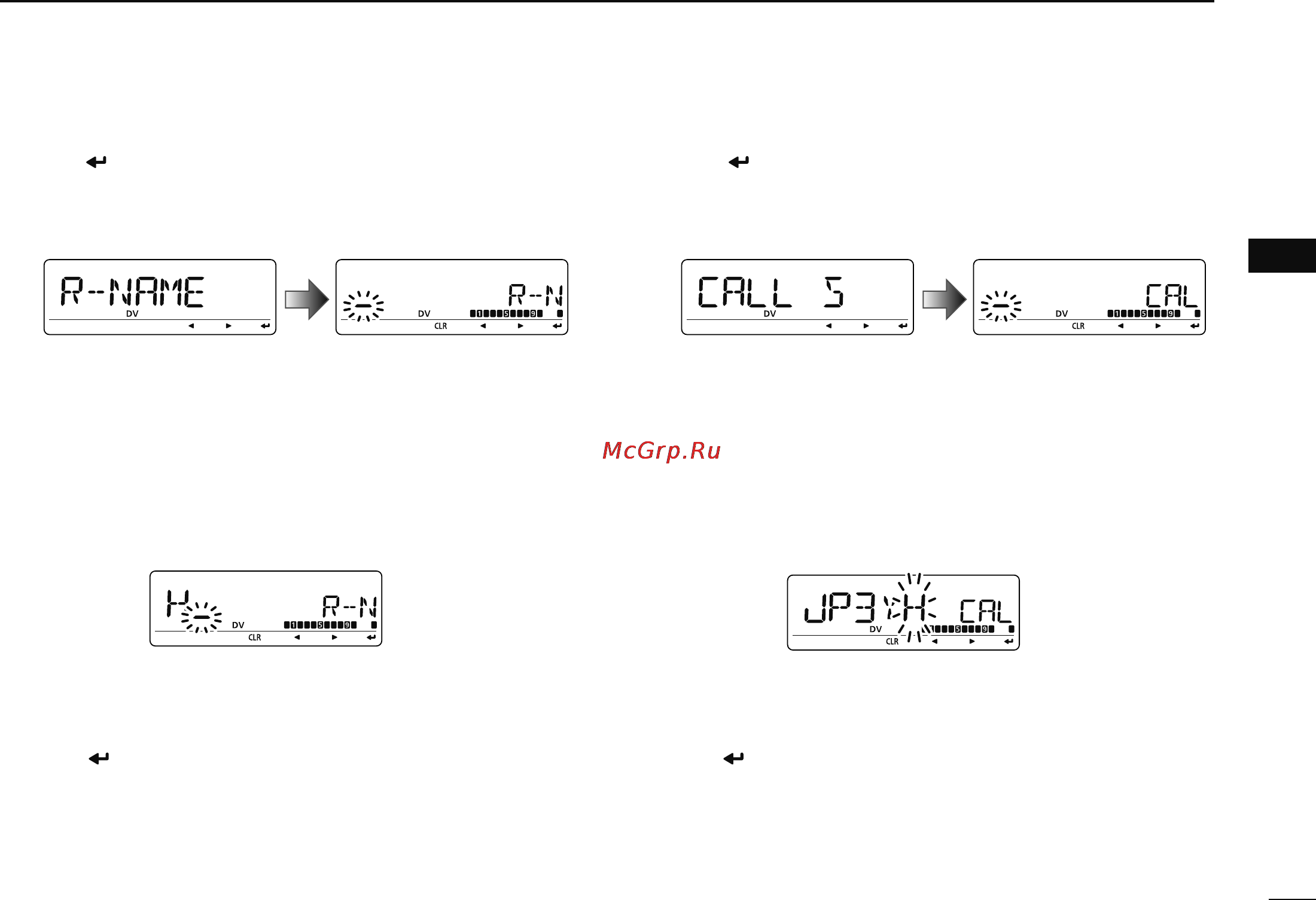

Repeater name programming (R-NAME)
q Push [ ](MONI) to enter the repeater name programming
state.
• Repeater name programming screen is displayed.
• The 1st digit blinks.
w Rotate [DIAL] to select the desired character, number,
symbol or space.
• The selected character blinks.
• Push [](LOW) to move the cursor right; push [](CS) to move
the cursor left.
• Push [CLR](DR) to erase the selected character, or push and
hold [CLR](DR) for 1 sec. to erase all characters following the
cursor.
e Repeat step w until the desired repeater name is pro-
grammed.
• Up to an 8 digit name can be set.
r Push [ ](MONI) to program the repeater name and exit
the state.
Repeater call sign programming (CALL S)
q Push [ ](MONI) to enter the repeater call sign program-
ming state.
• Repeater call sign programming screen is displayed.
• The 1st digit blinks.
w Rotate [DIAL] to select the desired character, number or
symbol (‘/’ only).
• The selected character blinks.
• Push [](LOW) to move the cursor right; push [](CS) to move
the cursor left.
• Push [CLR](DR) to erase the selected character, or push and
hold [CLR](DR) for 1 sec. to erase all characters following the
cursor.
e Repeat step w until the desired repeater call sign is pro-
grammed.
• Call sign can be up to 8 digits long.
r Push [ ](MONI) to program the repeater call sign and exit
the state.
