PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
±
During FM/FM-N mode operation, push and hold for 1 sec.
to enter the tone function selection state.
(pgs. 23, 146)
• Rotating [DIAL] selects the tone function.
• T (Repeater tone), TSQL
, TSQL, DTCS , DTCS, tone
squelch reverse, DTCS squelch reverse or tone function OFF
can be selected.
± During DV mode operation, push and hold for 1 sec. to
select the digital call sign squelch, digital code squelch
and no digital squelch operation in sequence.
(p. 151)
• Rotating [DIAL] selects the digital squelch function.
• DSQL , DSQL, CSQL , CSQL or digital call squelch
OFF can be selected.
u DR (D-STAR REPEATER)•UR KEY [DR•UR]
± Push to select the DR mode.
(pgs. 13, 50, 52)
• Rotating [DIAL] selects access repeater.
• The DV mode is automatically selected when other mode is
selected.
± During DV mode operation, push and hold for 1 sec. to
enter UR call sign selection state.
(pgs. 50, 52, 56–61)
• Rotating [DIAL] selects UR call sign.
• The DV mode is automatically selected when other mode is
selected.
i CALL SIGN•RX CALL SIGN SET KEY [CS•RXCS]
During DV mode operation:
± Push to display the current call sign.
(p. 43)
• Rotating [DIAL] selects UR, R1 (access repeater), R2 (linked
repeater) and MY (your own) call signs.
± Push and hold for 1 sec. to set the received call signs
(Caller and RXRPT1/2) to the current call sign.
(p. 45)
• Only received caller call sign is displayed in the DR mode. (p. 55)
o OUTPUT POWER•DUPLEX KEY [LOW•DUP]
± Each push changes the output power selection.
(p. 18)
• LOW, MID and HIGH (no indicator visible) are available.
± Push and hold for 1 sec. to enter the duplex operation
selection state.
(p. 23)
• Rotating [DIAL] selects the duplex direction.
• DUP– (minus duplex), DUP (plus duplex) and simplex (no
indicator visible) are available.
!0 MONITOR•DTMF KEY [MONI•DTMF]
± Push to turn the monitor function ON or OFF.
(p. 20)
± Push and hold for 1 sec. to enter DTMF set screen.
(p. 142)
!1 SQUELCH CONTROL [SQL]
Varies the squelch level.
(p. VIII)
• The RF attenuator activates and increases the attenuation when
rotated clockwise at beyond the center position. (p. 19)
!2 POWER KEY [PWR] (pgs. VIII, 11)
Push and hold for 1 sec. to turn power ON or OFF.

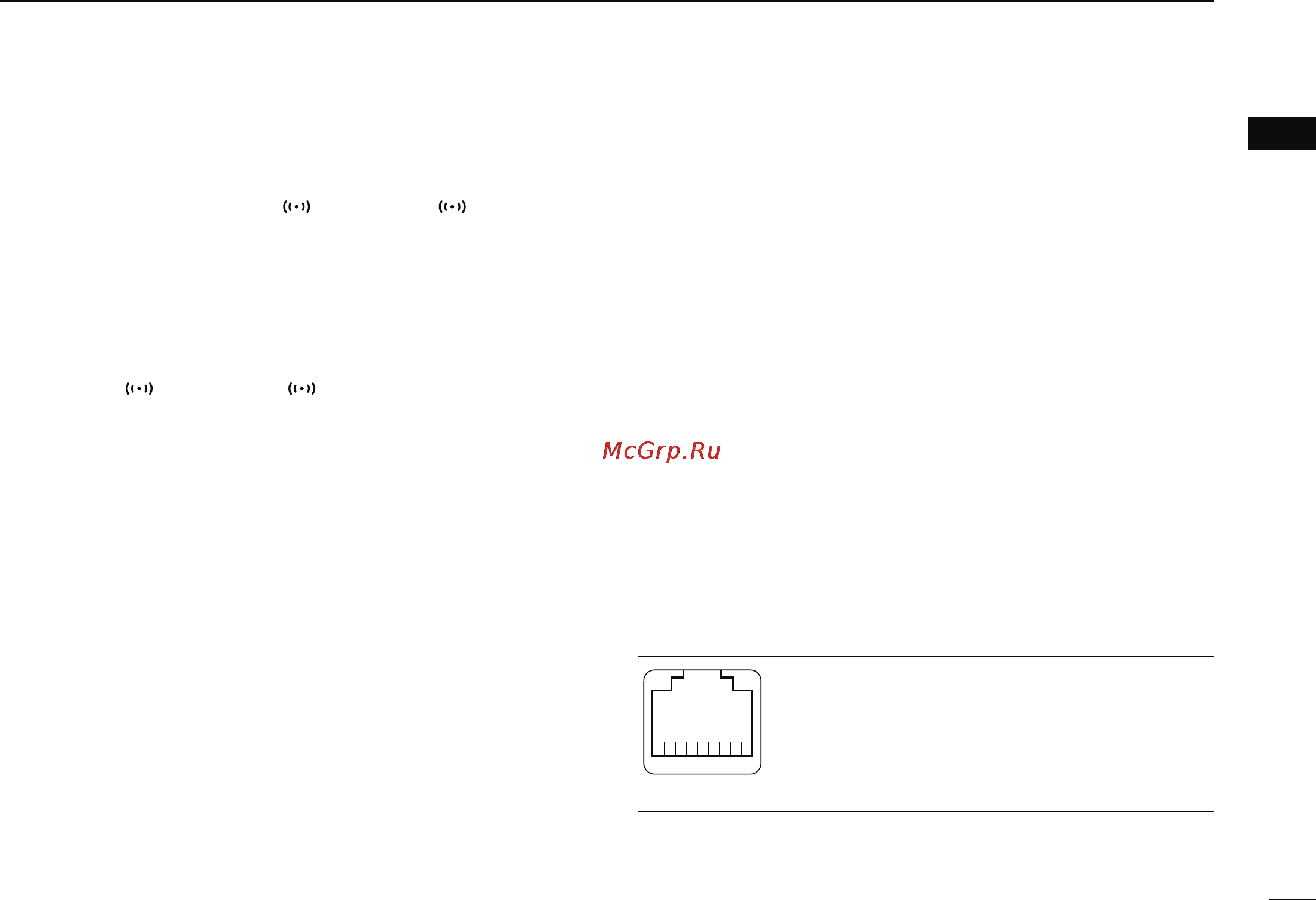

!3 MICROPHONE CONNECTOR
(p. III)
Connects the supplied or an optional microphone.
q
i
!4 VOLUME CONTROL [VOL] (p. VIII)
Adjusts the audio level.
q +8 V DC output
(Max. 10 mA)
w Channel up/down
e 8 V control IN
r PTT
t GND
(microphone ground)
y MIC
(microphone input)
u GND
i Data IN
